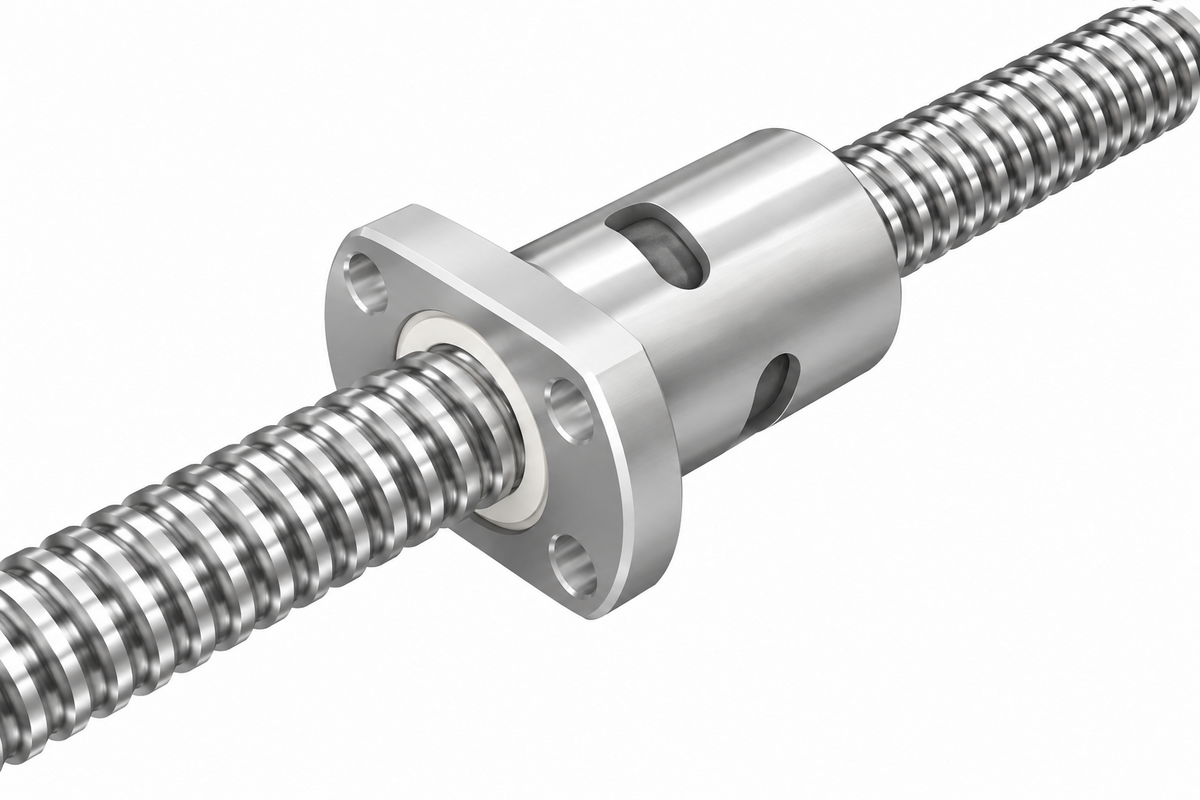

THK DK Ball Screw (Compact Single Nut, Shaft φ63)

THK DK Ball Screw (Compact Single Nut, Shaft φ63)

THK DK Series Compact Precision Ball Screw.

Key features

  • Most compact design — nut OD is 70~80% of return pipe type
  • Deflector return type for space-saving installation
  • Shaft diameter φ63mm

Specifications

Shaft Diameter φ63mm
Type Compact Single Nut, Deflector Return (DK)
DK6310-4 THK DK6310-4, φ63 Lead10, Ca=49.5kN | Shaft Diameter: φ63mm | Lead: 10mm | Ca: 49.5kN | C0a: 160.7kN | Nut OD D: 85mm | Flange D1: 146mm | Nut Length L1: 97mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK)
DK6310-6 THK DK6310-6, φ63 Lead10, Ca=70.3kN | Shaft Diameter: φ63mm | Lead: 10mm | Ca: 70.3kN | C0a: 242.1kN | Nut OD D: 85mm | Flange D1: 146mm | Nut Length L1: 118mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK)
DK6312-3 THK DK6312-3, φ63 Lead12, Ca=51.9kN | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 51.9kN | C0a: 147.4kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 98mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK)
DK6312-4 THK DK6312-4, φ63 Lead12, Ca=66.4kN | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 66.4kN | C0a: 196.6kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 111mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK)
DK6320-3 THK DK6320-3, φ63 Lead20, Ca=83.5kN | Shaft Diameter: φ63mm | Lead: 20mm | Ca: 83.5kN | C0a: 229.3kN | Nut OD D: 95mm | Flange D1: 159mm | Nut Length L1: 136mm | PCD: 129mm | Type: Compact Single Nut, Deflector Return (DK)
Ball ScrewsTHK
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK DK Ball Screw (Compact Single Nut, Shaft φ63)

Brand THK·Ball Screws

Available part numbers (5)

DK6310-4, DK6310-6, DK6312-3, DK6312-4, DK6320-3

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DK6310-4THK DK6310-4, φ63 Lead10, Ca=49.5kN | Shaft Diameter: φ63mm | Lead: 10mm | Ca: 49.5kN | C0a: 160.7kN | Nut OD D: 85mm | Flange D1: 146mm | Nut Length L1: 97mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK)
DK6310-6THK DK6310-6, φ63 Lead10, Ca=70.3kN | Shaft Diameter: φ63mm | Lead: 10mm | Ca: 70.3kN | C0a: 242.1kN | Nut OD D: 85mm | Flange D1: 146mm | Nut Length L1: 118mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK)
DK6312-3THK DK6312-3, φ63 Lead12, Ca=51.9kN | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 51.9kN | C0a: 147.4kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 98mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK)
DK6312-4THK DK6312-4, φ63 Lead12, Ca=66.4kN | Shaft Diameter: φ63mm | Lead: 12mm | Ca: 66.4kN | C0a: 196.6kN | Nut OD D: 90mm | Flange D1: 146mm | Nut Length L1: 111mm | PCD: 122mm | Type: Compact Single Nut, Deflector Return (DK)
DK6320-3THK DK6320-3, φ63 Lead20, Ca=83.5kN | Shaft Diameter: φ63mm | Lead: 20mm | Ca: 83.5kN | C0a: 229.3kN | Nut OD D: 95mm | Flange D1: 159mm | Nut Length L1: 136mm | PCD: 129mm | Type: Compact Single Nut, Deflector Return (DK)
