THK EK Support Unit (Fixed Side, Square Type, for Ball Screw)

THK EK Support Unit (Fixed Side, Square Type, for Ball Screw)

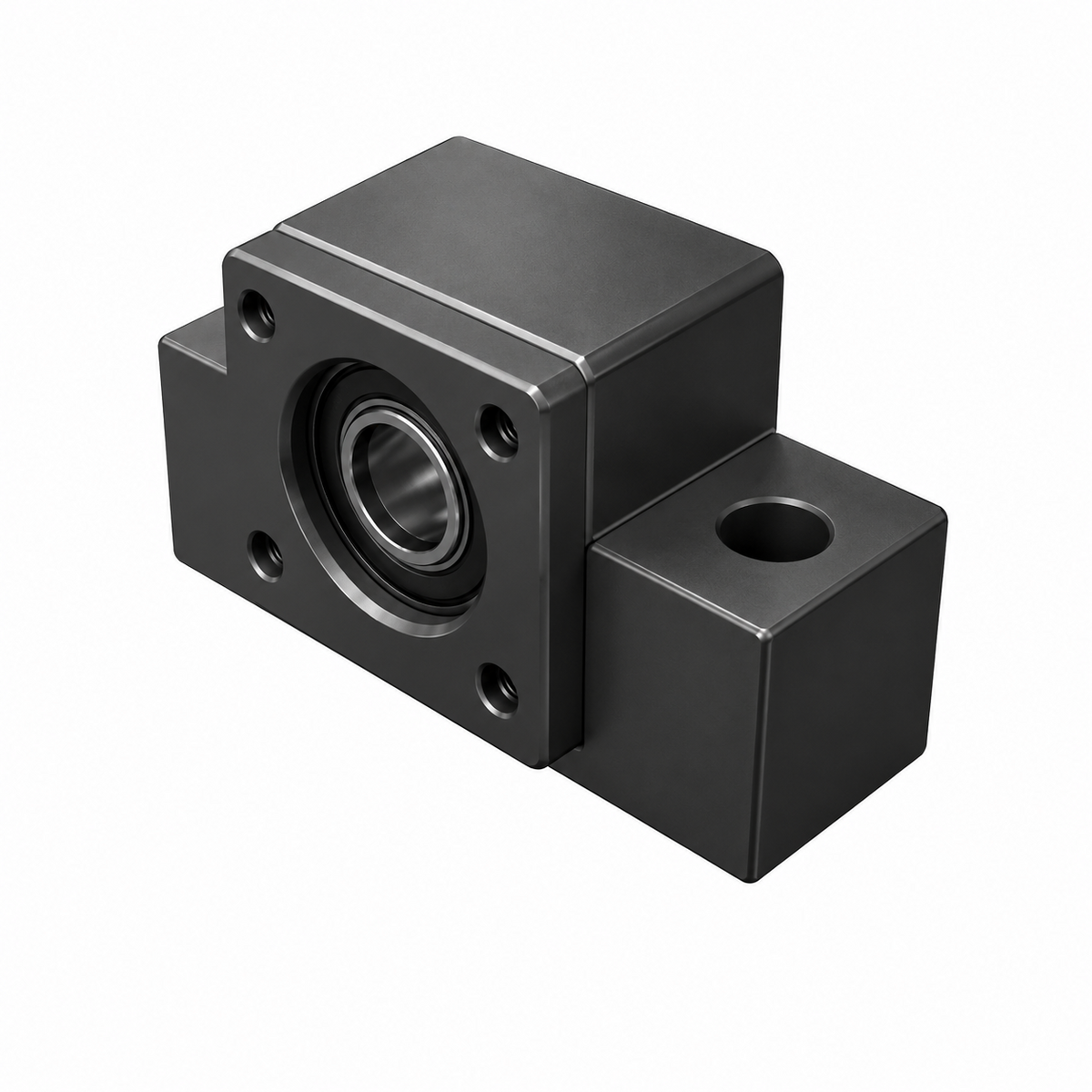

THK EK-type Ball Screw Support Unit (fixed side, square housing).

Key features

  • High-rigidity low-torque angular contact bearing optimized for ball screw rigidity balance
  • Square and circular housing types available
  • Compact and simple mounting
  • Shaft diameter range φ4~20mm

Specifications

Type Fixed Side, Square Housing (EK)
EK4 THK EK4, Fixed Side Support Unit, φ4mm | Shaft Diameter: φ4mm | Housing Length L: 15mm | L1: 5.5mm | L2: 17.5mm | L3: 3mm | Width B: 34mm | Height H: 19mm | b: 17mm | Bearing: 704 equivalent (DF P5) | Type: Fixed Side, Square Housing (EK)
EK5 THK EK5, Fixed Side Support Unit, φ5mm | Shaft Diameter: φ5mm | Housing Length L: 16.5mm | L1: 5.5mm | L2: 18.5mm | L3: 3.5mm | Width B: 36mm | Height H: 21mm | b: 18mm | Bearing: 705 equivalent (DF P5) | Type: Fixed Side, Square Housing (EK)
EK6 THK EK6, Fixed Side Support Unit, φ6mm | Shaft Diameter: φ6mm | Housing Length L: 20mm | L1: 5.5mm | L2: 22mm | L3: 3.5mm | Width B: 42mm | Height H: 25mm | b: 21mm | Bearing: 706 equivalent (DF P5) | Type: Fixed Side, Square Housing (EK)
EK8 THK EK8, Fixed Side Support Unit, φ8mm | Shaft Diameter: φ8mm | Housing Length L: 23mm | L1: 7mm | L2: 26mm | L3: 4mm | Width B: 52mm | Height H: 32mm | b: 26mm | Bearing: 798 equivalent (DF P5) | Type: Fixed Side, Square Housing (EK)
EK10 THK EK10, Fixed Side Support Unit, φ10mm | Shaft Diameter: φ10mm | Housing Length L: 24mm | L1: 6mm | L2: 29.5mm | L3: 6mm | Width B: 70mm | Height H: 43mm | b: 35mm | Bearing: 7000 equivalent (DF P5) | Type: Fixed Side, Square Housing (EK)
EK12 THK EK12, Fixed Side Support Unit, φ12mm | Shaft Diameter: φ12mm | Housing Length L: 24mm | L1: 6mm | L2: 29.5mm | L3: 6mm | Width B: 70mm | Height H: 43mm | b: 35mm | Bearing: 7001 equivalent (DF P5) | Type: Fixed Side, Square Housing (EK)
EK15 THK EK15, Fixed Side Support Unit, φ15mm | Shaft Diameter: φ15mm | Housing Length L: 25mm | L1: 6mm | L2: 36mm | L3: 5mm | Width B: 80mm | Height H: 49mm | b: 40mm | Bearing: 7002 equivalent (DF P5) | Type: Fixed Side, Square Housing (EK)
EK20 THK EK20, Fixed Side Support Unit, φ20mm | Shaft Diameter: φ20mm | Housing Length L: 42mm | L1: 10mm | L2: 50mm | L3: 10mm | Width B: 95mm | Height H: 58mm | b: 47.5mm | Bearing: 7204 equivalent (DF P5) | Type: Fixed Side, Square Housing (EK)
