• THK GSR-R Separable LM Guide Block with Rack-integrated Rail
1 1

THK GSR-R Separable LM Guide Block with Rack-integrated Rail

THK GSR-R Separable LM Guide Block with Rack-integrated Rail

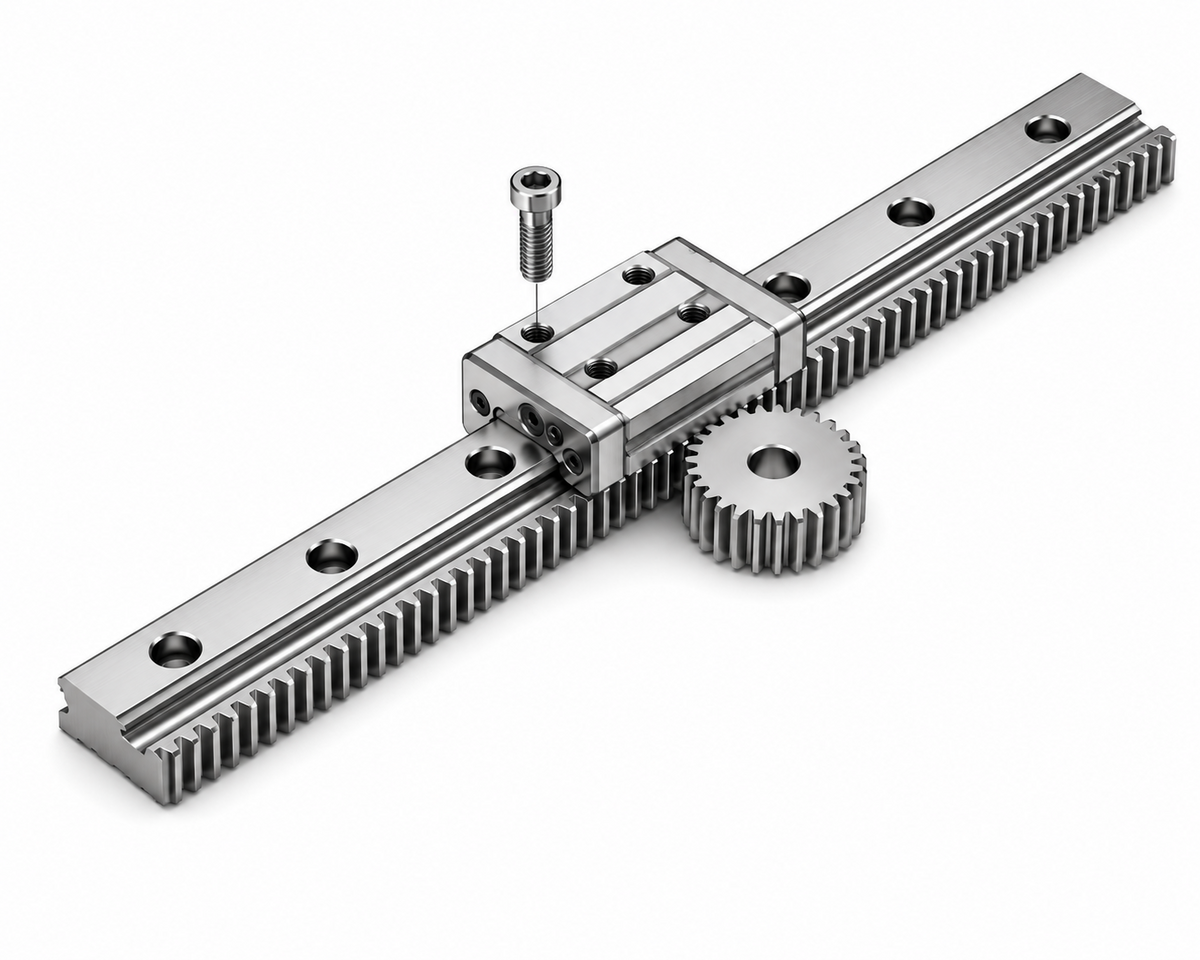

Separable LM Guide with rack-integrated rail.

Key features

  • LM rail (linear guide) and rack (drive) in one unit — reduces rack mounting/assembly work
  • Small thrust load on pinion shaft — easy design without dedicated bearing or table rigidity
  • Integer travel per pinion rotation for easy calculation with stepping/servo motors

Specifications

Type Separable LM Guide Block
Series GSR-R
Max Rail Length 3000 mm
Rail Type Rack-integrated
Drive Rack and Pinion
Brand THK
GSR-25V-R GSR 25V-R LM Block H30×W50×L69mm | Type: Separable LM Guide Block | Series: GSR-R | Model: GSR 25V-R | Height M: 30 mm | Width W: 50 mm | Length L: 69 mm | Max Rail Length: 3000 mm | Dynamic Load C: 15.5 kN | Static Load C0: 15.2 kN | Rail Type: Rack-integrated | Drive: Rack and Pinion | Brand: THK
GSR-25T-R GSR 25T-R LM Block H30×W50×L88mm | Type: Separable LM Guide Block | Series: GSR-R | Model: GSR 25T-R | Height M: 30 mm | Width W: 50 mm | Length L: 88 mm | Max Rail Length: 3000 mm | Dynamic Load C: 20 kN | Static Load C0: 22 kN | Rail Type: Rack-integrated | Drive: Rack and Pinion | Brand: THK
GSR-30T-R GSR 30T-R LM Block H33×W57×L103mm | Type: Separable LM Guide Block | Series: GSR-R | Model: GSR 30T-R | Height M: 33 mm | Width W: 57 mm | Length L: 103 mm | Max Rail Length: 3000 mm | Dynamic Load C: 27.8 kN | Static Load C0: 29.9 kN | Rail Type: Rack-integrated | Drive: Rack and Pinion | Brand: THK
GSR-35T-R GSR 35T-R LM Block H38×W68×L117mm | Type: Separable LM Guide Block | Series: GSR-R | Model: GSR 35T-R | Height M: 38 mm | Width W: 68 mm | Length L: 117 mm | Max Rail Length: 3000 mm | Dynamic Load C: 37 kN | Static Load C0: 39.1 kN | Rail Type: Rack-integrated | Drive: Rack and Pinion | Brand: THK
LM GuidesTHK
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK GSR-R Separable LM Guide Block with Rack-integrated Rail

Brand THK·LM Guides

Available part numbers (4)

GSR-25V-R, GSR-25T-R, GSR-30T-R, GSR-35T-R

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GSR-25V-RGSR 25V-R LM Block H30×W50×L69mm | Type: Separable LM Guide Block | Series: GSR-R | Model: GSR 25V-R | Height M: 30 mm | Width W: 50 mm | Length L: 69 mm | Max Rail Length: 3000 mm | Dynamic Load C: 15.5 kN | Static Load C0: 15.2 kN | Rail Type: Rack-integrated | Drive: Rack and Pinion | Brand: THK
GSR-25T-RGSR 25T-R LM Block H30×W50×L88mm | Type: Separable LM Guide Block | Series: GSR-R | Model: GSR 25T-R | Height M: 30 mm | Width W: 50 mm | Length L: 88 mm | Max Rail Length: 3000 mm | Dynamic Load C: 20 kN | Static Load C0: 22 kN | Rail Type: Rack-integrated | Drive: Rack and Pinion | Brand: THK
GSR-30T-RGSR 30T-R LM Block H33×W57×L103mm | Type: Separable LM Guide Block | Series: GSR-R | Model: GSR 30T-R | Height M: 33 mm | Width W: 57 mm | Length L: 103 mm | Max Rail Length: 3000 mm | Dynamic Load C: 27.8 kN | Static Load C0: 29.9 kN | Rail Type: Rack-integrated | Drive: Rack and Pinion | Brand: THK
GSR-35T-RGSR 35T-R LM Block H38×W68×L117mm | Type: Separable LM Guide Block | Series: GSR-R | Model: GSR 35T-R | Height M: 38 mm | Width W: 68 mm | Length L: 117 mm | Max Rail Length: 3000 mm | Dynamic Load C: 37 kN | Static Load C0: 39.1 kN | Rail Type: Rack-integrated | Drive: Rack and Pinion | Brand: THK
