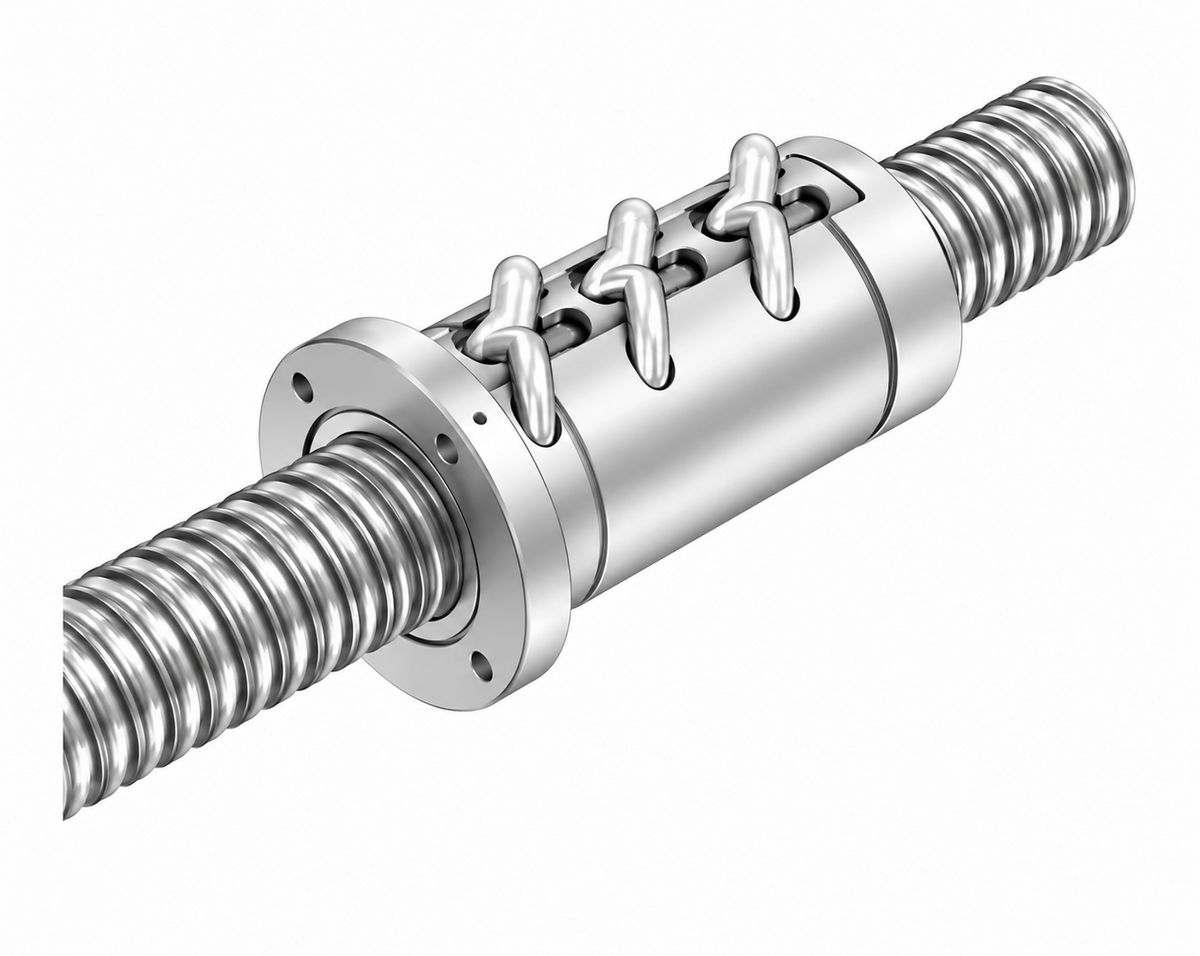

THK HBN10016K-10 Ball Screw (Heavy Load, Shaft φ100, Lead 16mm)

THK HBN10016K-10 Ball Screw (Heavy Load, Shaft φ100, Lead 16mm)

THK HBN-K Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ100mm, lead 16mm, 10 ball circuits
  • Ca=673kN, C0a=2244kN

Specifications

Shaft Diameter φ100mm
Lead 16mm
Ball Circuits 10
Ca 673kN
C0a 2244kN
Nut OD D 150mm
Flange D1 190mm
Nut Length L1 263mm
Type Heavy Load, Ball Retainer (HBN-K)
HBN10016K-10 THK HBN10016K-10, φ100 Lead16, Ca=673kN | Shaft Diameter: φ100mm | Lead: 16mm | Ball Circuits: 10 | Ca: 673kN | C0a: 2244kN | Nut OD D: 150mm | Flange D1: 190mm | Nut Length L1: 263mm | Type: Heavy Load, Ball Retainer (HBN-K)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN10016K-10 Ball Screw (Heavy Load, Shaft φ100, Lead 16mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN10016K-10

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN10016K-10THK HBN10016K-10, φ100 Lead16, Ca=673kN | Shaft Diameter: φ100mm | Lead: 16mm | Ball Circuits: 10 | Ca: 673kN | C0a: 2244kN | Nut OD D: 150mm | Flange D1: 190mm | Nut Length L1: 263mm | Type: Heavy Load, Ball Retainer (HBN-K)
