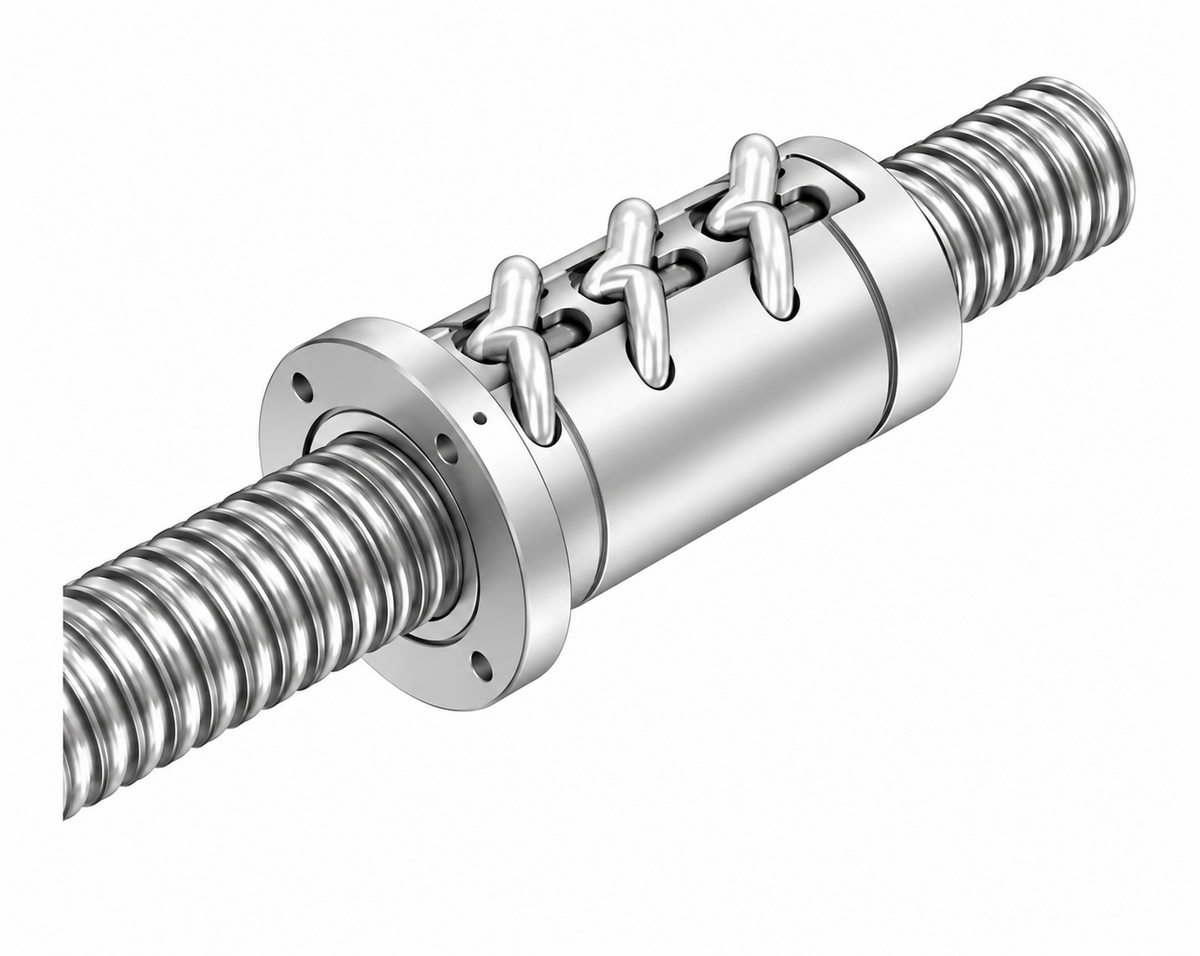

THK HBN10020K-10 Ball Screw (Heavy Load, Shaft φ100, Lead 20mm)

THK HBN10020K-10 Ball Screw (Heavy Load, Shaft φ100, Lead 20mm)

THK HBN-K Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ100mm, lead 20mm, 10 ball circuits
  • Ca=919kN, C0a=2810kN

Specifications

Shaft Diameter φ100mm
Lead 20mm
Ball Circuits 10
Ca 919kN
C0a 2810kN
Nut OD D 154mm
Flange D1 194mm
Nut Length L1 312mm
Type Heavy Load, Ball Retainer (HBN-K)
HBN10020K-10 THK HBN10020K-10, φ100 Lead20, Ca=919kN | Shaft Diameter: φ100mm | Lead: 20mm | Ball Circuits: 10 | Ca: 919kN | C0a: 2810kN | Nut OD D: 154mm | Flange D1: 194mm | Nut Length L1: 312mm | Type: Heavy Load, Ball Retainer (HBN-K)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN10020K-10 Ball Screw (Heavy Load, Shaft φ100, Lead 20mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN10020K-10

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN10020K-10THK HBN10020K-10, φ100 Lead20, Ca=919kN | Shaft Diameter: φ100mm | Lead: 20mm | Ball Circuits: 10 | Ca: 919kN | C0a: 2810kN | Nut OD D: 154mm | Flange D1: 194mm | Nut Length L1: 312mm | Type: Heavy Load, Ball Retainer (HBN-K)
