• THK HBN5010V-7.5 Ball Screw (Heavy Load, Shaft φ50, Lead 10mm)
1 1

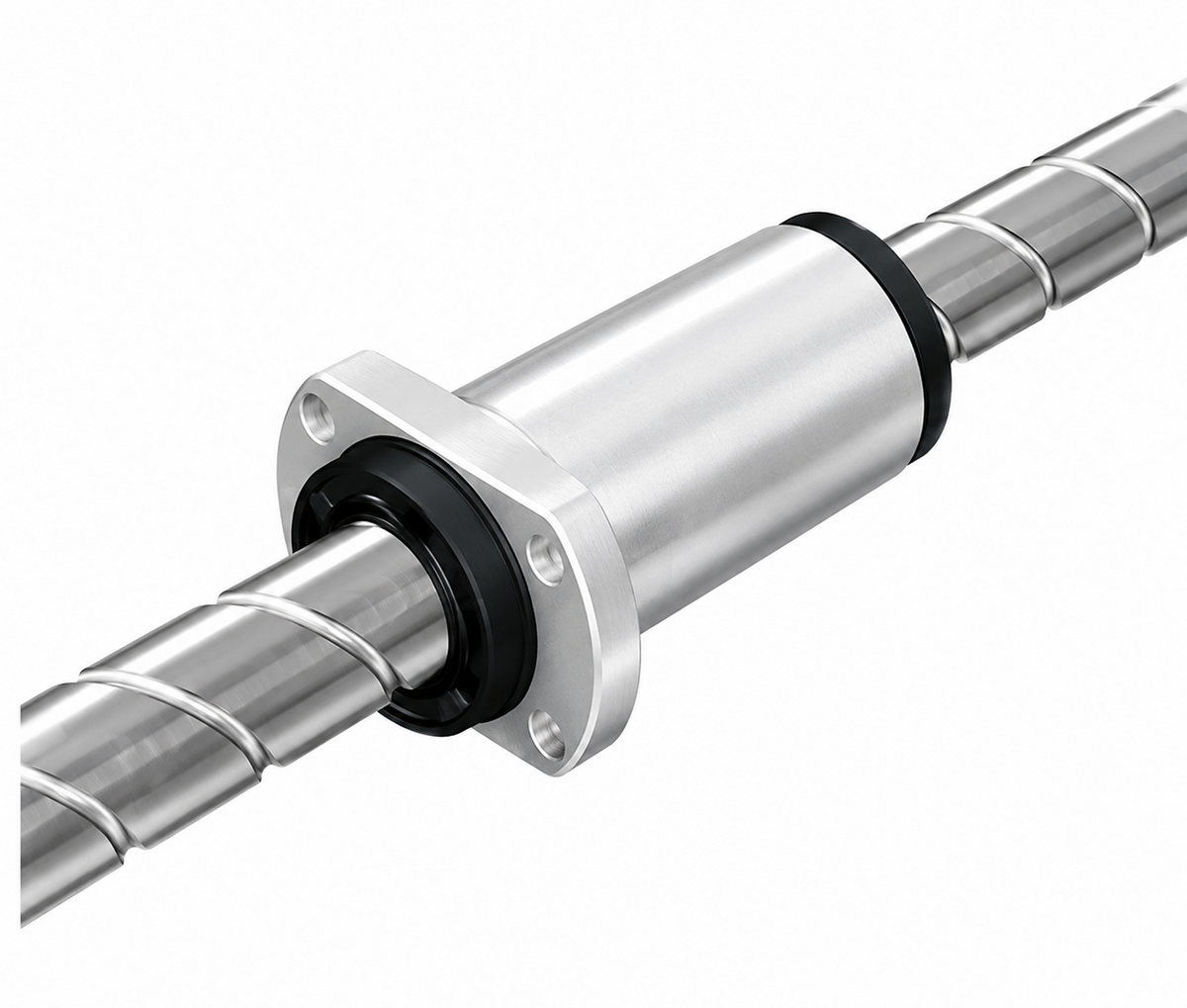

THK HBN5010V-7.5 Ball Screw (Heavy Load, Shaft φ50, Lead 10mm)

THK HBN5010V-7.5 Ball Screw (Heavy Load, Shaft φ50, Lead 10mm)

THK HBN-V Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ50mm, lead 10mm, 7.5 ball circuits
  • Ca=189kN, C0a=506kN

Specifications

Shaft Diameter φ50mm
Lead 10mm
Ball Circuits 7.5
Ca 189kN
C0a 506kN
Nut OD D 75mm
Flange D1 109mm
Nut Length L1 143mm
Type Heavy Load, Ball Retainer (HBN-V)
HBN5010V-7.5 THK HBN5010V-7.5, φ50 Lead10, Ca=189kN | Shaft Diameter: φ50mm | Lead: 10mm | Ball Circuits: 7.5 | Ca: 189kN | C0a: 506kN | Nut OD D: 75mm | Flange D1: 109mm | Nut Length L1: 143mm | Type: Heavy Load, Ball Retainer (HBN-V)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN5010V-7.5 Ball Screw (Heavy Load, Shaft φ50, Lead 10mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN5010V-7.5

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN5010V-7.5THK HBN5010V-7.5, φ50 Lead10, Ca=189kN | Shaft Diameter: φ50mm | Lead: 10mm | Ball Circuits: 7.5 | Ca: 189kN | C0a: 506kN | Nut OD D: 75mm | Flange D1: 109mm | Nut Length L1: 143mm | Type: Heavy Load, Ball Retainer (HBN-V)
