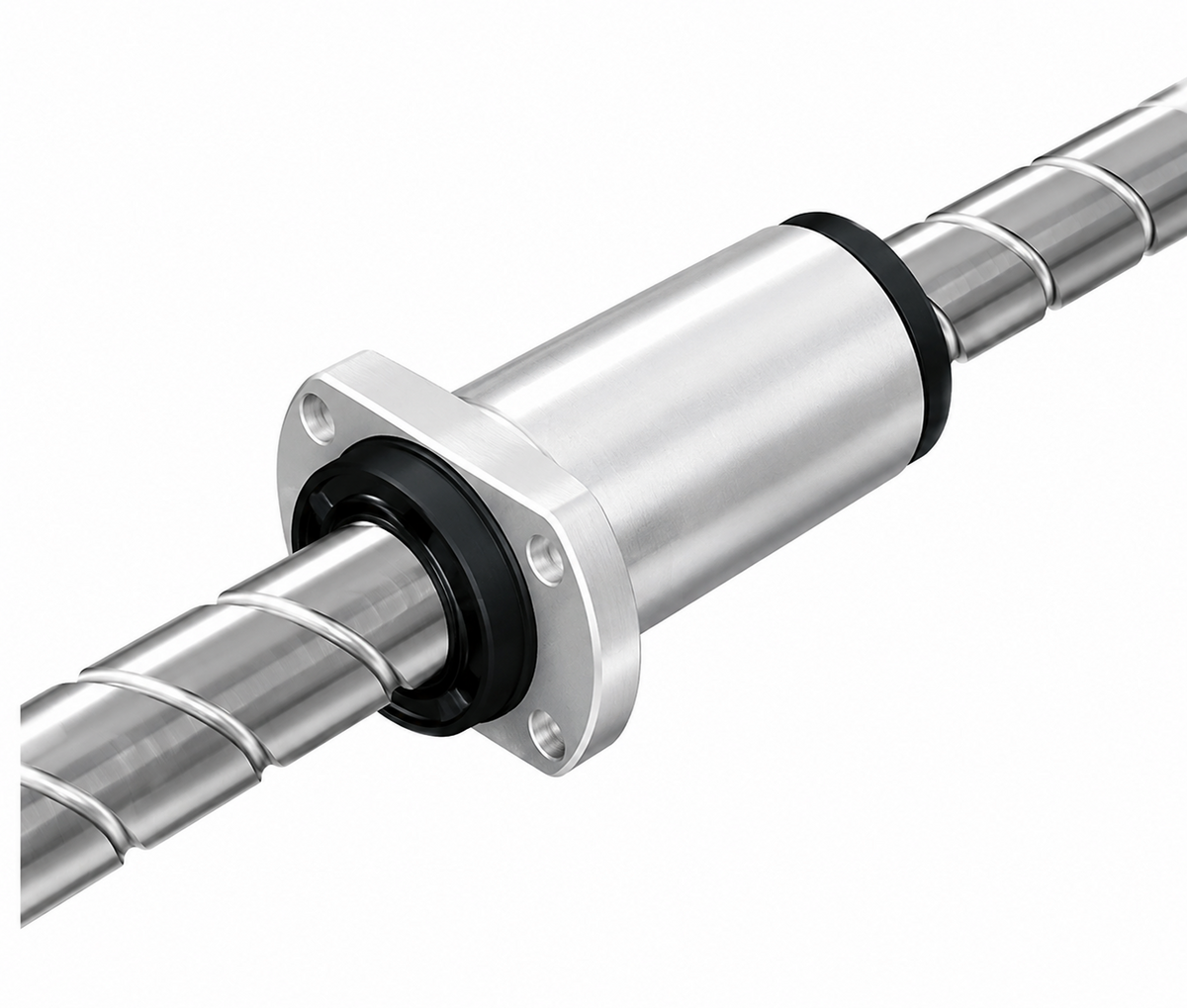

THK HBN5012V-7.5 Ball Screw (Heavy Load, Shaft φ50, Lead 12mm)

THK HBN5012V-7.5 Ball Screw (Heavy Load, Shaft φ50, Lead 12mm)

THK HBN-V Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ50mm, lead 12mm, 7.5 ball circuits
  • Ca=250kN, C0a=624kN

Specifications

Shaft Diameter φ50mm
Lead 12mm
Ball Circuits 7.5
Ca 250kN
C0a 624kN
Nut OD D 80mm
Flange D1 114mm
Nut Length L1 163mm
Type Heavy Load, Ball Retainer (HBN-V)
HBN5012V-7.5 THK HBN5012V-7.5, φ50 Lead12, Ca=250kN | Shaft Diameter: φ50mm | Lead: 12mm | Ball Circuits: 7.5 | Ca: 250kN | C0a: 624kN | Nut OD D: 80mm | Flange D1: 114mm | Nut Length L1: 163mm | Type: Heavy Load, Ball Retainer (HBN-V)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN5012V-7.5 Ball Screw (Heavy Load, Shaft φ50, Lead 12mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN5012V-7.5

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN5012V-7.5THK HBN5012V-7.5, φ50 Lead12, Ca=250kN | Shaft Diameter: φ50mm | Lead: 12mm | Ball Circuits: 7.5 | Ca: 250kN | C0a: 624kN | Nut OD D: 80mm | Flange D1: 114mm | Nut Length L1: 163mm | Type: Heavy Load, Ball Retainer (HBN-V)
