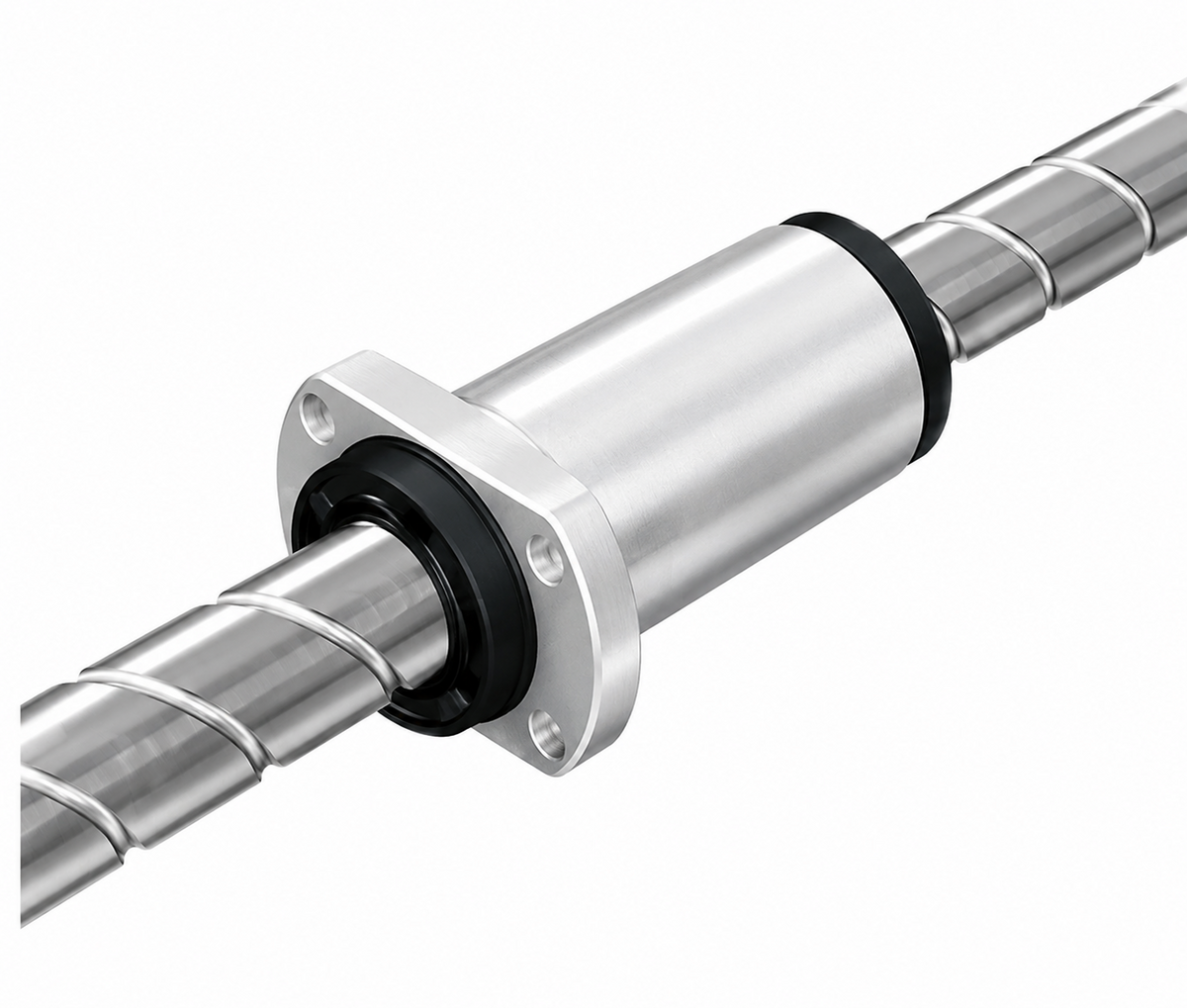

THK HBN6316V-10.5 Ball Screw (Heavy Load, Shaft φ63, Lead 16mm)

THK HBN6316V-10.5 Ball Screw (Heavy Load, Shaft φ63, Lead 16mm)

THK HBN-V Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ63mm, lead 16mm, 10.5 ball circuits
  • Ca=598kN, C0a=1544kN

Specifications

Shaft Diameter φ63mm
Lead 16mm
Ball Circuits 10.5
Ca 598kN
C0a 1544kN
Nut OD D 105mm
Flange D1 139mm
Nut Length L1 261mm
Type Heavy Load, Ball Retainer (HBN-V)
HBN6316V-10.5 THK HBN6316V-10.5, φ63 Lead16, Ca=598kN | Shaft Diameter: φ63mm | Lead: 16mm | Ball Circuits: 10.5 | Ca: 598kN | C0a: 1544kN | Nut OD D: 105mm | Flange D1: 139mm | Nut Length L1: 261mm | Type: Heavy Load, Ball Retainer (HBN-V)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN6316V-10.5 Ball Screw (Heavy Load, Shaft φ63, Lead 16mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN6316V-10.5

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN6316V-10.5THK HBN6316V-10.5, φ63 Lead16, Ca=598kN | Shaft Diameter: φ63mm | Lead: 16mm | Ball Circuits: 10.5 | Ca: 598kN | C0a: 1544kN | Nut OD D: 105mm | Flange D1: 139mm | Nut Length L1: 261mm | Type: Heavy Load, Ball Retainer (HBN-V)
