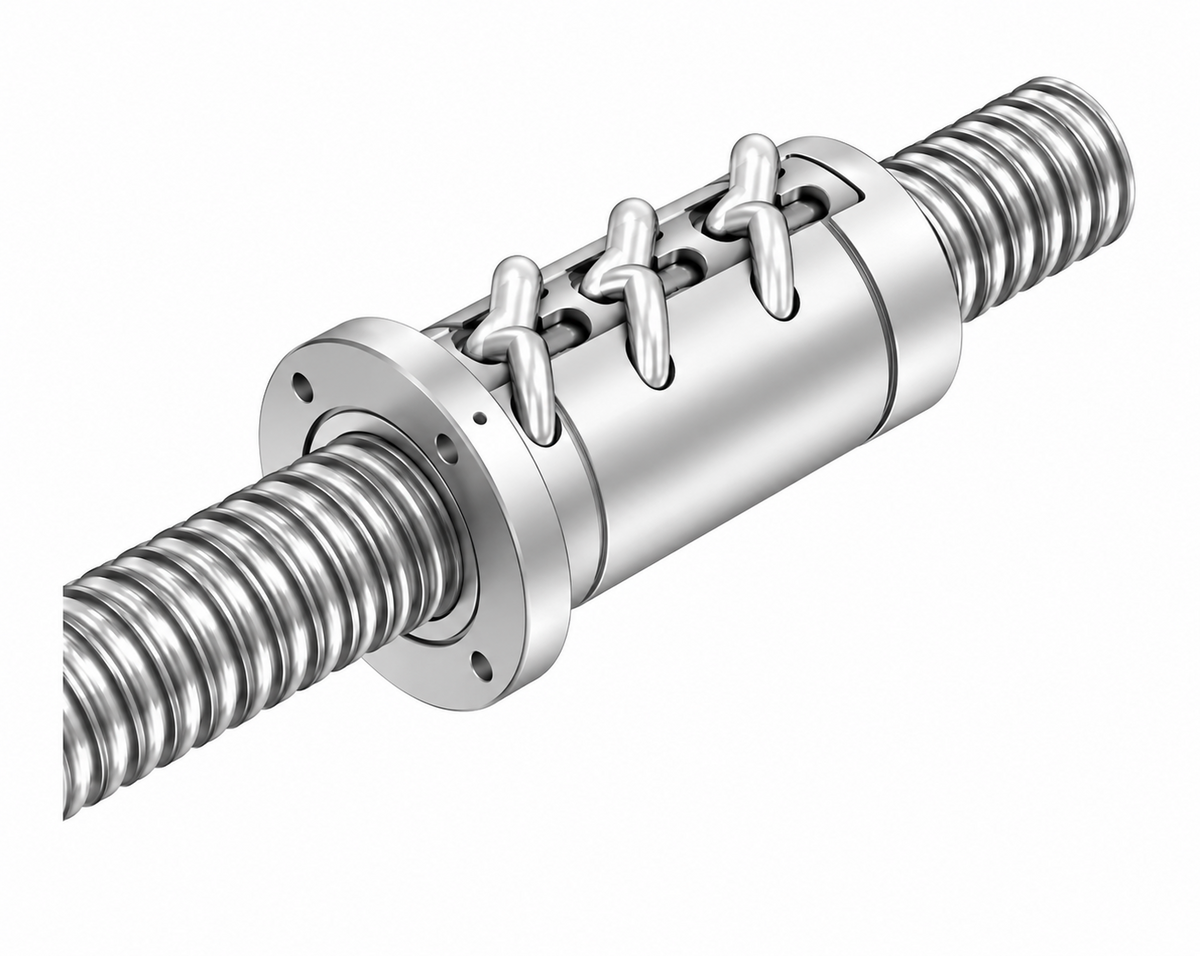

THK HBN6342K-3 Ball Screw (Heavy Load, Shaft φ63, Lead 42mm)

THK HBN6342K-3 Ball Screw (Heavy Load, Shaft φ63, Lead 42mm)

THK HBN-K Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ63mm, lead 42mm, 3 ball circuits
  • Ca=259kN, C0a=526kN

Specifications

Shaft Diameter φ63mm
Lead 42mm
Ball Circuits 3
Ca 259kN
C0a 526kN
Nut OD D 117mm
Flange D1 157mm
Nut Length L1 156mm
Type Heavy Load, Ball Retainer (HBN-K)
HBN6342K-3 THK HBN6342K-3, φ63 Lead42, Ca=259kN | Shaft Diameter: φ63mm | Lead: 42mm | Ball Circuits: 3 | Ca: 259kN | C0a: 526kN | Nut OD D: 117mm | Flange D1: 157mm | Nut Length L1: 156mm | Type: Heavy Load, Ball Retainer (HBN-K)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN6342K-3 Ball Screw (Heavy Load, Shaft φ63, Lead 42mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN6342K-3

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN6342K-3THK HBN6342K-3, φ63 Lead42, Ca=259kN | Shaft Diameter: φ63mm | Lead: 42mm | Ball Circuits: 3 | Ca: 259kN | C0a: 526kN | Nut OD D: 117mm | Flange D1: 157mm | Nut Length L1: 156mm | Type: Heavy Load, Ball Retainer (HBN-K)
