• THK HBN8020V-10.5 Ball Screw (Heavy Load, Shaft φ80, Lead 20mm)
1 1

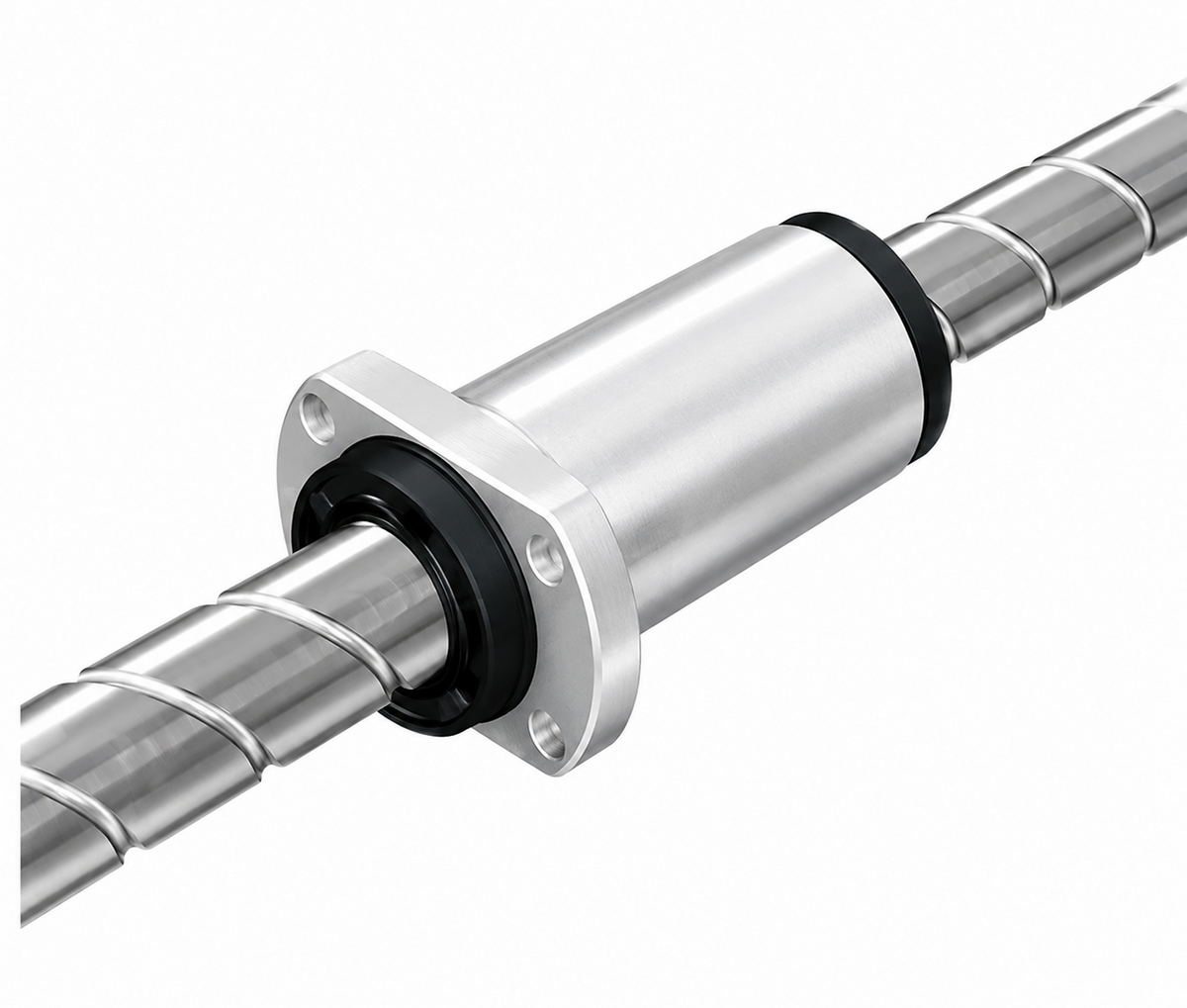

THK HBN8020V-10.5 Ball Screw (Heavy Load, Shaft φ80, Lead 20mm)

THK HBN8020V-10.5 Ball Screw (Heavy Load, Shaft φ80, Lead 20mm)

THK HBN-V Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ80mm, lead 20mm, 10.5 ball circuits
  • Ca=899kN, C0a=2442kN

Specifications

Shaft Diameter φ80mm
Lead 20mm
Ball Circuits 10.5
Ca 899kN
C0a 2442kN
Nut OD D 130mm
Flange D1 170mm
Nut Length L1 317mm
Type Heavy Load, Ball Retainer (HBN-V)
HBN8020V-10.5 THK HBN8020V-10.5, φ80 Lead20, Ca=899kN | Shaft Diameter: φ80mm | Lead: 20mm | Ball Circuits: 10.5 | Ca: 899kN | C0a: 2442kN | Nut OD D: 130mm | Flange D1: 170mm | Nut Length L1: 317mm | Type: Heavy Load, Ball Retainer (HBN-V)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN8020V-10.5 Ball Screw (Heavy Load, Shaft φ80, Lead 20mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN8020V-10.5

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN8020V-10.5THK HBN8020V-10.5, φ80 Lead20, Ca=899kN | Shaft Diameter: φ80mm | Lead: 20mm | Ball Circuits: 10.5 | Ca: 899kN | C0a: 2442kN | Nut OD D: 130mm | Flange D1: 170mm | Nut Length L1: 317mm | Type: Heavy Load, Ball Retainer (HBN-V)
