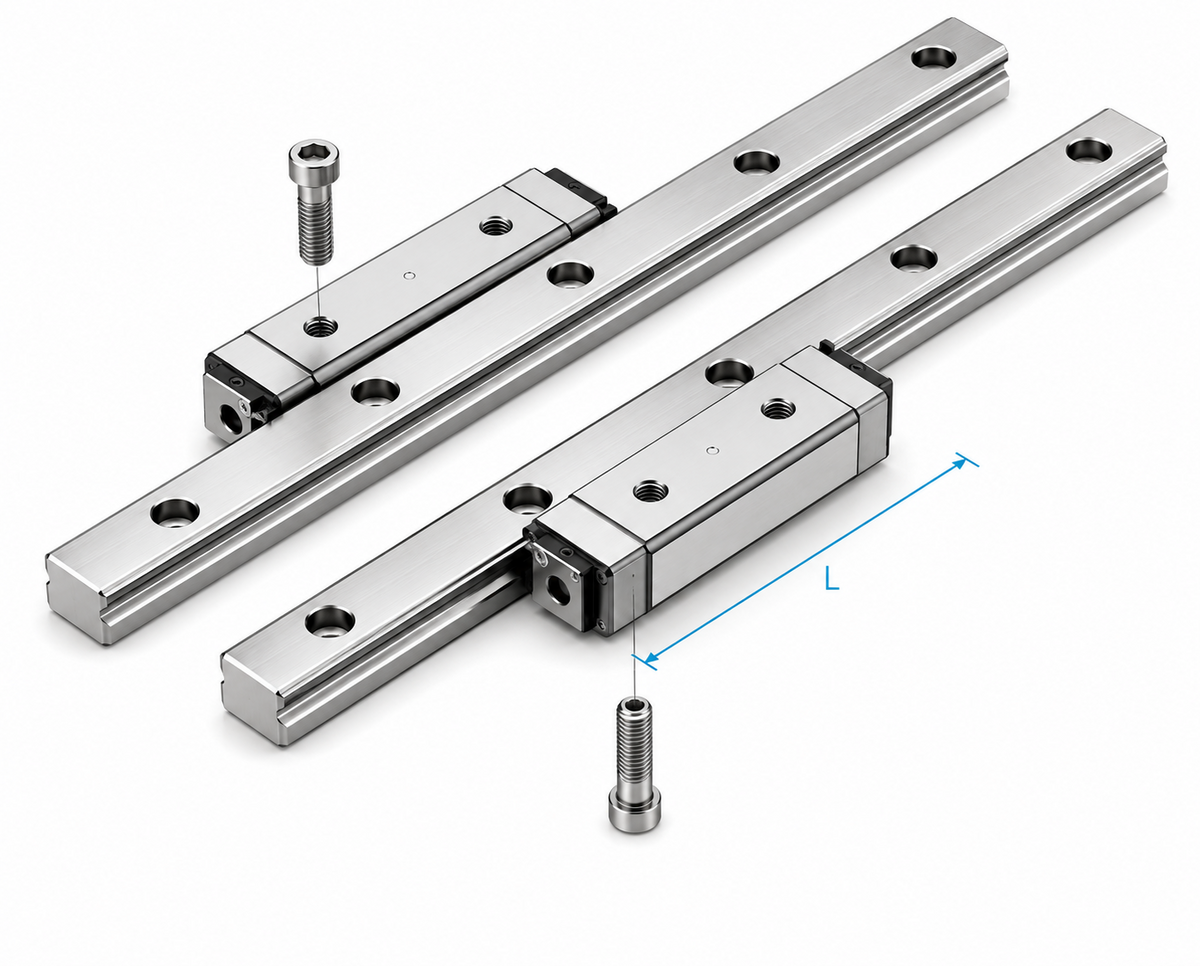

THK HR-3065~60125 Separable LM Guide Block (Heavy/Super Heavy Load, 4-Direction)

THK HR-3065~60125 Separable LM Guide Block (Heavy/Super Heavy Load, 4-Direction)

Separable type LM Guide.

Key features

  • HR = heavy load, HR-T = super heavy load
  • Easier clearance adjustment than cross roller guides. 4-direction equal load with Circular Arc groove DF front combination for superior self-alignment

Specifications

Type Separable LM Guide Block
Series HR
Max Rail Length 3000 mm
Structure Separable / Circular Arc DF
Load Direction 4-Direction Equal
Brand THK
HR-3065 HR 3065 LM Block H30×W40.3×L145mm | Type: Separable LM Guide Block | Series: HR | Model: HR 3065 | Height M: 30 mm | Width W: 40.3 mm | Length L: 145 mm | Max Rail Length: 3000 mm | Dynamic Load C: 42.6 kN | Static Load C0: 44.4 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-3065T HR 3065T LM Block H30×W40.3×L173.5mm | Type: Separable LM Guide Block | Series: HR | Model: HR 3065T | Height M: 30 mm | Width W: 40.3 mm | Length L: 173.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 51.5 kN | Static Load C0: 58.1 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-3575 HR 3575 LM Block H35×W44.9×L154.8mm | Type: Separable LM Guide Block | Series: HR | Model: HR 3575 | Height M: 35 mm | Width W: 44.9 mm | Length L: 154.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 53.5 kN | Static Load C0: 54.8 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-3575T HR 3575T LM Block H35×W44.9×L182.5mm | Type: Separable LM Guide Block | Series: HR | Model: HR 3575T | Height M: 35 mm | Width W: 44.9 mm | Length L: 182.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 64.4 kN | Static Load C0: 71.7 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-4085 HR 4085 LM Block H40×W50.4×L177.8mm | Type: Separable LM Guide Block | Series: HR | Model: HR 4085 | Height M: 40 mm | Width W: 50.4 mm | Length L: 177.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 78.8 kN | Static Load C0: 78.9 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-4085T HR 4085T LM Block H40×W50.4×L215.9mm | Type: Separable LM Guide Block | Series: HR | Model: HR 4085T | Height M: 40 mm | Width W: 50.4 mm | Length L: 215.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 95.1 kN | Static Load C0: 103 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-50105 HR 50105 LM Block H50×W63.4×L227mm | Type: Separable LM Guide Block | Series: HR | Model: HR 50105 | Height M: 50 mm | Width W: 63.4 mm | Length L: 227 mm | Max Rail Length: 3000 mm | Dynamic Load C: 127 kN | Static Load C0: 123 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-50105T HR 50105T LM Block H50×W63.4×L274.5mm | Type: Separable LM Guide Block | Series: HR | Model: HR 50105T | Height M: 50 mm | Width W: 63.4 mm | Length L: 274.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 153 kN | Static Load C0: 161 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-60125 HR 60125 LM Block H60×W74.4×L329mm | Type: Separable LM Guide Block | Series: HR | Model: HR 60125 | Height M: 60 mm | Width W: 74.4 mm | Length L: 329 mm | Max Rail Length: 3000 mm | Dynamic Load C: 226 kN | Static Load C0: 232 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
LM GuidesTHK
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HR-3065~60125 Separable LM Guide Block (Heavy/Super Heavy Load, 4-Direction)

Brand THK·LM Guides

Available part numbers (9)

HR-3065, HR-3065T, HR-3575, HR-3575T, HR-4085, HR-4085T, HR-50105, HR-50105T, HR-60125

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HR-3065HR 3065 LM Block H30×W40.3×L145mm | Type: Separable LM Guide Block | Series: HR | Model: HR 3065 | Height M: 30 mm | Width W: 40.3 mm | Length L: 145 mm | Max Rail Length: 3000 mm | Dynamic Load C: 42.6 kN | Static Load C0: 44.4 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-3065THR 3065T LM Block H30×W40.3×L173.5mm | Type: Separable LM Guide Block | Series: HR | Model: HR 3065T | Height M: 30 mm | Width W: 40.3 mm | Length L: 173.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 51.5 kN | Static Load C0: 58.1 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-3575HR 3575 LM Block H35×W44.9×L154.8mm | Type: Separable LM Guide Block | Series: HR | Model: HR 3575 | Height M: 35 mm | Width W: 44.9 mm | Length L: 154.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 53.5 kN | Static Load C0: 54.8 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-3575THR 3575T LM Block H35×W44.9×L182.5mm | Type: Separable LM Guide Block | Series: HR | Model: HR 3575T | Height M: 35 mm | Width W: 44.9 mm | Length L: 182.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 64.4 kN | Static Load C0: 71.7 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-4085HR 4085 LM Block H40×W50.4×L177.8mm | Type: Separable LM Guide Block | Series: HR | Model: HR 4085 | Height M: 40 mm | Width W: 50.4 mm | Length L: 177.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 78.8 kN | Static Load C0: 78.9 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-4085THR 4085T LM Block H40×W50.4×L215.9mm | Type: Separable LM Guide Block | Series: HR | Model: HR 4085T | Height M: 40 mm | Width W: 50.4 mm | Length L: 215.9 mm | Max Rail Length: 3000 mm | Dynamic Load C: 95.1 kN | Static Load C0: 103 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-50105HR 50105 LM Block H50×W63.4×L227mm | Type: Separable LM Guide Block | Series: HR | Model: HR 50105 | Height M: 50 mm | Width W: 63.4 mm | Length L: 227 mm | Max Rail Length: 3000 mm | Dynamic Load C: 127 kN | Static Load C0: 123 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-50105THR 50105T LM Block H50×W63.4×L274.5mm | Type: Separable LM Guide Block | Series: HR | Model: HR 50105T | Height M: 50 mm | Width W: 63.4 mm | Length L: 274.5 mm | Max Rail Length: 3000 mm | Dynamic Load C: 153 kN | Static Load C0: 161 kN | Load Type: Super Heavy (T type) | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
HR-60125HR 60125 LM Block H60×W74.4×L329mm | Type: Separable LM Guide Block | Series: HR | Model: HR 60125 | Height M: 60 mm | Width W: 74.4 mm | Length L: 329 mm | Max Rail Length: 3000 mm | Dynamic Load C: 226 kN | Static Load C0: 232 kN | Load Type: Heavy | Structure: Separable / Circular Arc DF | Load Direction: 4-Direction Equal | Brand: THK
