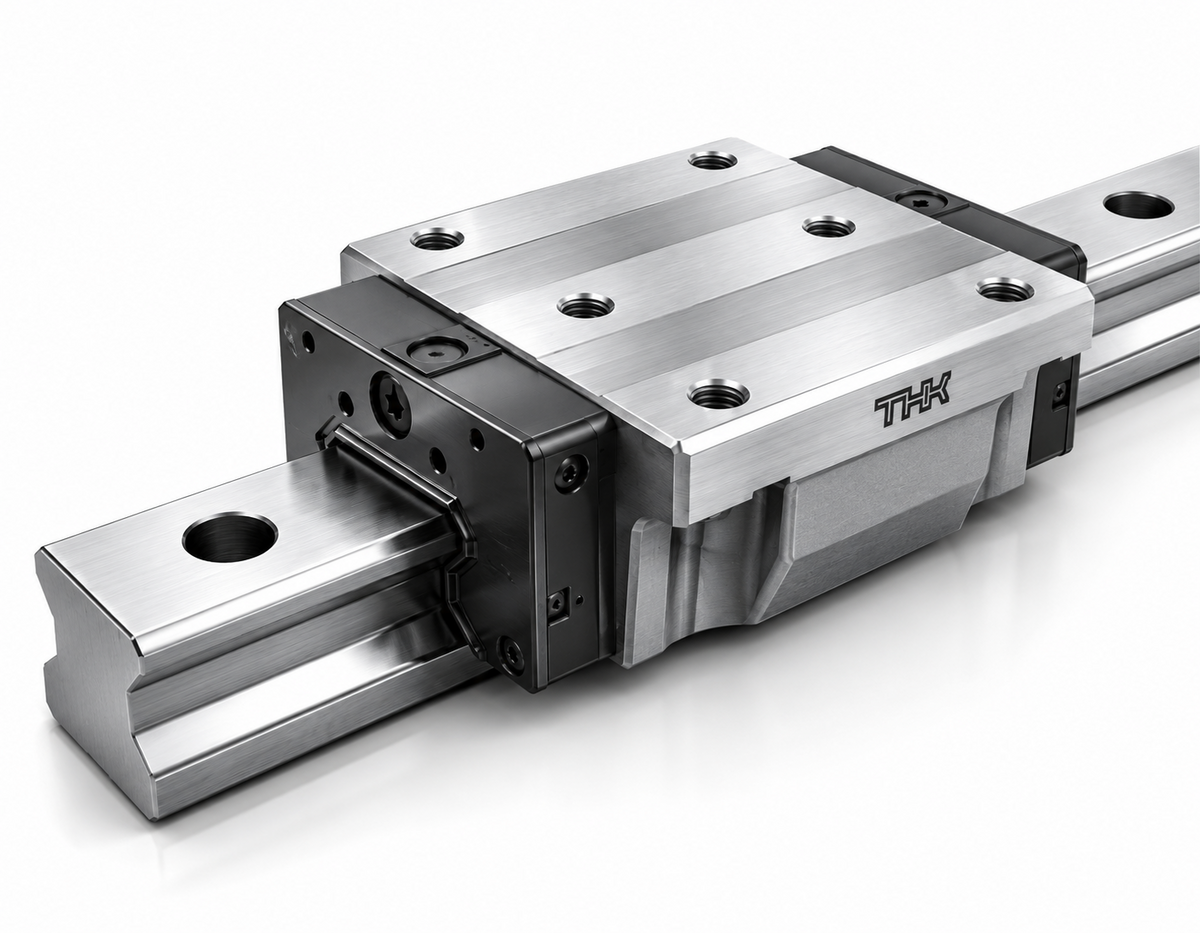

THK HRX-C/LC Super High Rigidity Roller LM Guide Block (4-Direction Equal Load)

THK HRX-C/LC Super High Rigidity Roller LM Guide Block (4-Direction Equal Load)

Super high rigidity super heavy load LM Guide.

Key features

  • Roller rolling elements for maximum rigidity and heavy load capacity. 4-direction equal load with 45° roller arrangement
  • LM block and rail sold separately — freely combinable within same model number

Specifications

Type Super High Rigidity Roller LM Guide Block
Series HRX
Rolling Element Roller
Load Type 4-Direction Equal
Brand THK
HRX25C HRX25C LM Block H36×W70×L99.6mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX25C | Height M: 36 mm | Width W: 70 mm | Length L: 99.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 26.3 kN | Static Load C0: 73.1 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX25LC HRX25LC LM Block H36×W70×L116.4mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX25LC | Height M: 36 mm | Width W: 70 mm | Length L: 116.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 30.8 kN | Static Load C0: 89.3 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX30C HRX30C LM Block H42×W90×L110.6mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX30C | Height M: 42 mm | Width W: 90 mm | Length L: 110.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 39.4 kN | Static Load C0: 104.7 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX30LC HRX30LC LM Block H42×W90×L135.1mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX30LC | Height M: 42 mm | Width W: 90 mm | Length L: 135.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 48.0 kN | Static Load C0: 135.2 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX35C HRX35C LM Block H48×W100×L123.2mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX35C | Height M: 48 mm | Width W: 100 mm | Length L: 123.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 56.0 kN | Static Load C0: 150.1 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX35LC HRX35LC LM Block H48×W100×L151.2mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX35LC | Height M: 48 mm | Width W: 100 mm | Length L: 151.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 68.9 kN | Static Load C0: 195.7 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX45C HRX45C LM Block H60×W120×L150.7mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX45C | Height M: 60 mm | Width W: 120 mm | Length L: 150.7 mm | Max Rail Length: 3090 mm | Dynamic Load C: 94.3 kN | Static Load C0: 250.4 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX45LC HRX45LC LM Block H60×W120×L185.7mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX45LC | Height M: 60 mm | Width W: 120 mm | Length L: 185.7 mm | Max Rail Length: 3090 mm | Dynamic Load C: 116.0 kN | Static Load C0: 326.7 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX55C HRX55C LM Block H70×W140×L180.2mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX55C | Height M: 70 mm | Width W: 140 mm | Length L: 180.2 mm | Max Rail Length: 3060 mm | Dynamic Load C: 134.5 kN | Static Load C0: 369.9 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX55LC HRX55LC LM Block H70×W140×L229.7mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX55LC | Height M: 70 mm | Width W: 140 mm | Length L: 229.7 mm | Max Rail Length: 3060 mm | Dynamic Load C: 169.5 kN | Static Load C0: 497.9 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX65C HRX65C LM Block H90×W170×L239.1mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX65C | Height M: 90 mm | Width W: 170 mm | Length L: 239.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 205.5 kN | Static Load C0: 567.0 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX65LC HRX65LC LM Block H90×W170×L304.1mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX65LC | Height M: 90 mm | Width W: 170 mm | Length L: 304.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 257.0 kN | Static Load C0: 756.0 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
LM GuidesTHK
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HRX-C/LC Super High Rigidity Roller LM Guide Block (4-Direction Equal Load)

Brand THK·LM Guides

Available part numbers (12)

HRX25C, HRX25LC, HRX30C, HRX30LC, HRX35C, HRX35LC, HRX45C, HRX45LC, HRX55C, HRX55LC + 2 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRX25CHRX25C LM Block H36×W70×L99.6mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX25C | Height M: 36 mm | Width W: 70 mm | Length L: 99.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 26.3 kN | Static Load C0: 73.1 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX25LCHRX25LC LM Block H36×W70×L116.4mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX25LC | Height M: 36 mm | Width W: 70 mm | Length L: 116.4 mm | Max Rail Length: 3000 mm | Dynamic Load C: 30.8 kN | Static Load C0: 89.3 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX30CHRX30C LM Block H42×W90×L110.6mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX30C | Height M: 42 mm | Width W: 90 mm | Length L: 110.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 39.4 kN | Static Load C0: 104.7 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX30LCHRX30LC LM Block H42×W90×L135.1mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX30LC | Height M: 42 mm | Width W: 90 mm | Length L: 135.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 48.0 kN | Static Load C0: 135.2 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX35CHRX35C LM Block H48×W100×L123.2mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX35C | Height M: 48 mm | Width W: 100 mm | Length L: 123.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 56.0 kN | Static Load C0: 150.1 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX35LCHRX35LC LM Block H48×W100×L151.2mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX35LC | Height M: 48 mm | Width W: 100 mm | Length L: 151.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 68.9 kN | Static Load C0: 195.7 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX45CHRX45C LM Block H60×W120×L150.7mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX45C | Height M: 60 mm | Width W: 120 mm | Length L: 150.7 mm | Max Rail Length: 3090 mm | Dynamic Load C: 94.3 kN | Static Load C0: 250.4 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX45LCHRX45LC LM Block H60×W120×L185.7mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX45LC | Height M: 60 mm | Width W: 120 mm | Length L: 185.7 mm | Max Rail Length: 3090 mm | Dynamic Load C: 116.0 kN | Static Load C0: 326.7 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX55CHRX55C LM Block H70×W140×L180.2mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX55C | Height M: 70 mm | Width W: 140 mm | Length L: 180.2 mm | Max Rail Length: 3060 mm | Dynamic Load C: 134.5 kN | Static Load C0: 369.9 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX55LCHRX55LC LM Block H70×W140×L229.7mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX55LC | Height M: 70 mm | Width W: 140 mm | Length L: 229.7 mm | Max Rail Length: 3060 mm | Dynamic Load C: 169.5 kN | Static Load C0: 497.9 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
HRX65CHRX65C LM Block H90×W170×L239.1mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX65C | Height M: 90 mm | Width W: 170 mm | Length L: 239.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 205.5 kN | Static Load C0: 567.0 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Standard (C) | Brand: THK
HRX65LCHRX65LC LM Block H90×W170×L304.1mm | Type: Super High Rigidity Roller LM Guide Block | Series: HRX | Model: HRX65LC | Height M: 90 mm | Width W: 170 mm | Length L: 304.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 257.0 kN | Static Load C0: 756.0 kN | Rolling Element: Roller | Load Type: 4-Direction Equal | Block Length: Long (LC) | Brand: THK
