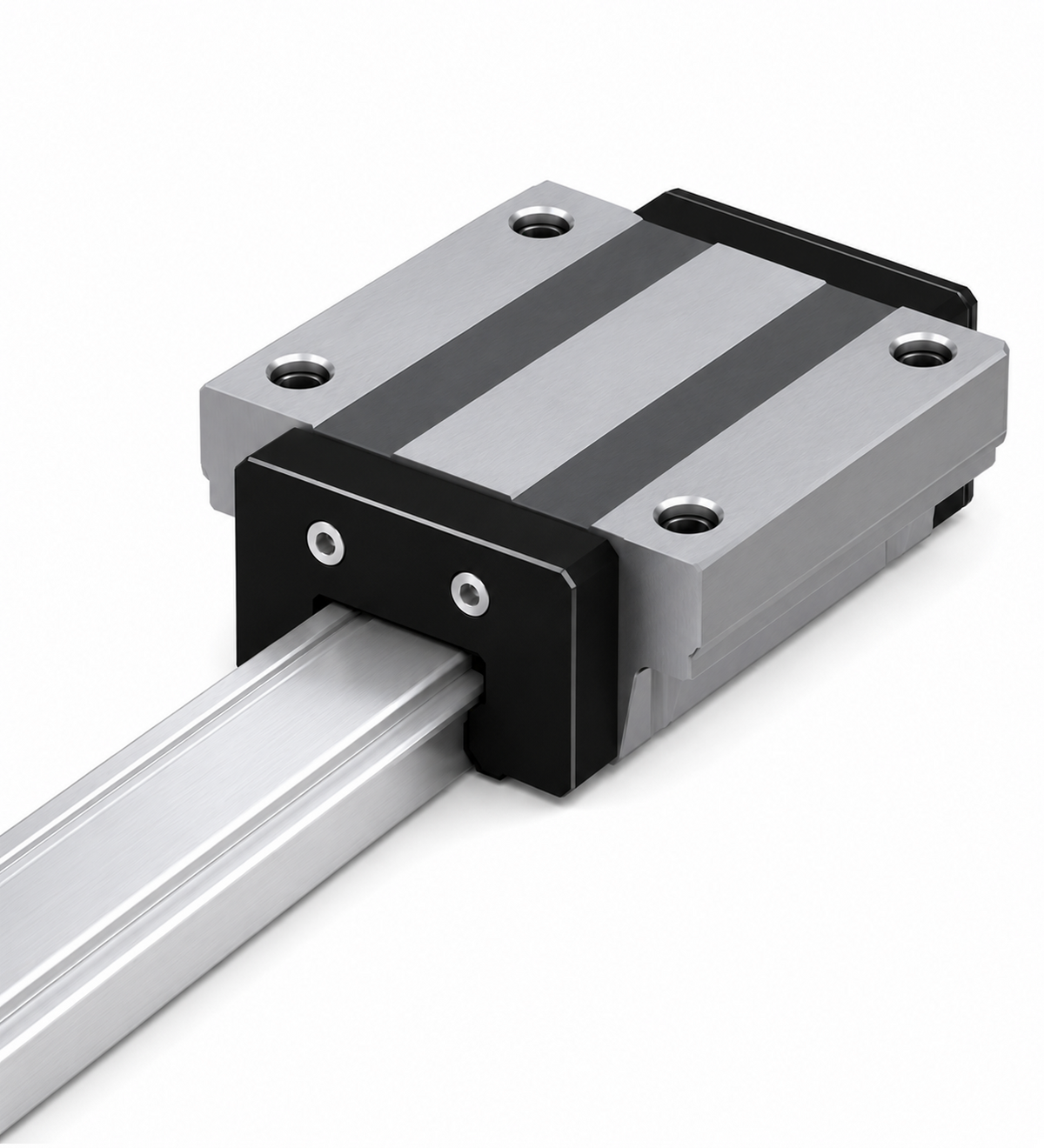

THK HSR-85A/85LA LM Guide Block (Full Ball, Flange, High Rigidity 4-Row)

THK HSR-85A/85LA LM Guide Block (Full Ball, Flange, High Rigidity 4-Row)

Full ball type LM Guide.

Key features

  • World standard dimensions
  • Flange type with tapped holes. 4-row configuration for high rigidity — sufficient preload applicable in all 4 directions
  • THK Circular Arc groove (DF structure)

Specifications

Type LM Guide Block
Series HSR
Height M 110 mm
Width W 215 mm
Max Rail Length 3000 mm
Structure Full Ball DF
Load Type 4-Direction Equal
Configuration 4-row High Rigidity
Brand THK
HSR-85A HSR 85A LM Block H110×W215×L245.6mm | Type: LM Guide Block | Series: HSR | Model: HSR 85A | Height M: 110 mm | Width W: 215 mm | Length L: 245.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 304 kN | Static Load C0: 355 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK
HSR-85LA HSR 85LA LM Block H110×W215×L303mm | Type: LM Guide Block | Series: HSR | Model: HSR 85LA | Height M: 110 mm | Width W: 215 mm | Length L: 303 mm | Max Rail Length: 3000 mm | Dynamic Load C: 367 kN | Static Load C0: 464 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK
LM GuidesTHK
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HSR-85A/85LA LM Guide Block (Full Ball, Flange, High Rigidity 4-Row)

Brand THK·LM Guides

Available part numbers (2)

HSR-85A, HSR-85LA

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSR-85AHSR 85A LM Block H110×W215×L245.6mm | Type: LM Guide Block | Series: HSR | Model: HSR 85A | Height M: 110 mm | Width W: 215 mm | Length L: 245.6 mm | Max Rail Length: 3000 mm | Dynamic Load C: 304 kN | Static Load C0: 355 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK
HSR-85LAHSR 85LA LM Block H110×W215×L303mm | Type: LM Guide Block | Series: HSR | Model: HSR 85LA | Height M: 110 mm | Width W: 215 mm | Length L: 303 mm | Max Rail Length: 3000 mm | Dynamic Load C: 367 kN | Static Load C0: 464 kN | Structure: Full Ball DF | Load Type: 4-Direction Equal | Configuration: 4-row High Rigidity | Brand: THK
