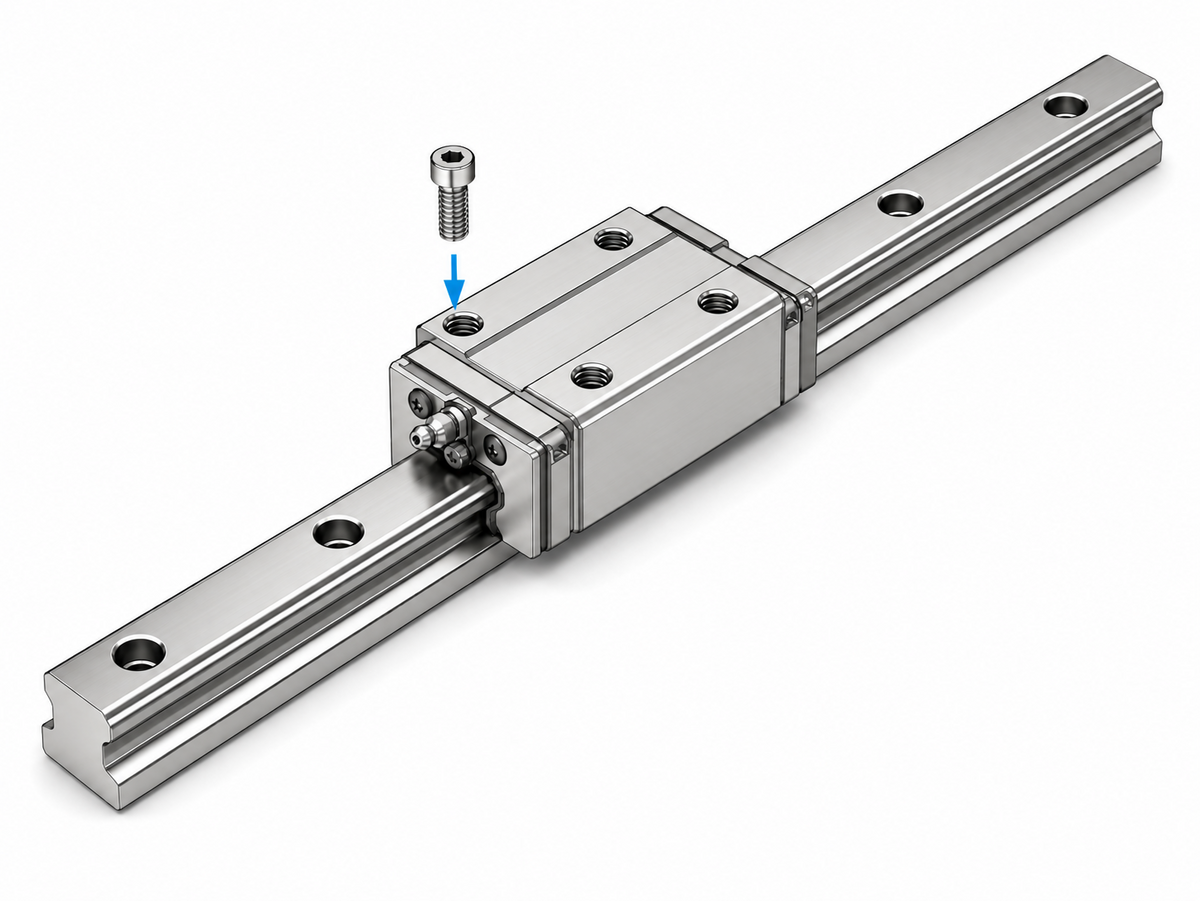

THK HSR-M1-R/LR High Temperature LM Guide Block (Narrow Width, Stainless, 150°C)

THK HSR-M1-R/LR High Temperature LM Guide Block (Narrow Width, Stainless, 150°C)

High temperature type HSR LM Guide.

Key features

  • Narrow block width (R type) with tapped holes
  • Stainless end plate and high-temp rubber end seal — max 150°C operating temperature
  • Stainless block, rail and balls — ideal for clean rooms

Specifications

Type High Temperature LM Guide Block
Series HSR-M1
Max Temperature 150°C
Material Stainless Steel
Mount Narrow Width Tapped
Application High-temp / Clean room
Brand THK
HSR-15M1R HSR 15M1R LM Block H28×W34×L59.6mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 15M1R | Height M: 28 mm | Width W: 34 mm | Length L: 59.6 mm | Max Rail Length: 1240 mm | Dynamic Load C: 10.9 kN | Static Load C0: 15.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-20M1R HSR 20M1R LM Block H30×W44×L76mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 20M1R | Height M: 30 mm | Width W: 44 mm | Length L: 76 mm | Max Rail Length: 1480 mm | Dynamic Load C: 19.8 kN | Static Load C0: 27.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-20M1LR HSR 20M1LR LM Block H30×W44×L92mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 20M1LR | Height M: 30 mm | Width W: 44 mm | Length L: 92 mm | Max Rail Length: 1480 mm | Dynamic Load C: 23.9 kN | Static Load C0: 35.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-25M1R HSR 25M1R LM Block H40×W48×L83.9mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 25M1R | Height M: 40 mm | Width W: 48 mm | Length L: 83.9 mm | Max Rail Length: 1500 mm | Dynamic Load C: 27.6 kN | Static Load C0: 36.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-25M1LR HSR 25M1LR LM Block H40×W48×L103mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 25M1LR | Height M: 40 mm | Width W: 48 mm | Length L: 103 mm | Max Rail Length: 1500 mm | Dynamic Load C: 35.2 kN | Static Load C0: 51.6 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-30M1R HSR 30M1R LM Block H45×W60×L98.8mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 30M1R | Height M: 45 mm | Width W: 60 mm | Length L: 98.8 mm | Max Rail Length: 1500 mm | Dynamic Load C: 40.5 kN | Static Load C0: 53.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-30M1LR HSR 30M1LR LM Block H45×W60×L121.4mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 30M1LR | Height M: 45 mm | Width W: 60 mm | Length L: 121.4 mm | Max Rail Length: 1500 mm | Dynamic Load C: 48.9 kN | Static Load C0: 70.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-35M1R HSR 35M1R LM Block H55×W70×L112mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 35M1R | Height M: 55 mm | Width W: 70 mm | Length L: 112 mm | Max Rail Length: 1500 mm | Dynamic Load C: 53.9 kN | Static Load C0: 70.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-35M1LR HSR 35M1LR LM Block H55×W70×L137.4mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 35M1LR | Height M: 55 mm | Width W: 70 mm | Length L: 137.4 mm | Max Rail Length: 1500 mm | Dynamic Load C: 65 kN | Static Load C0: 91.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
LM GuidesTHK
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HSR-M1-R/LR High Temperature LM Guide Block (Narrow Width, Stainless, 150°C)

Brand THK·LM Guides

Available part numbers (9)

HSR-15M1R, HSR-20M1R, HSR-20M1LR, HSR-25M1R, HSR-25M1LR, HSR-30M1R, HSR-30M1LR, HSR-35M1R, HSR-35M1LR

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSR-15M1RHSR 15M1R LM Block H28×W34×L59.6mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 15M1R | Height M: 28 mm | Width W: 34 mm | Length L: 59.6 mm | Max Rail Length: 1240 mm | Dynamic Load C: 10.9 kN | Static Load C0: 15.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-20M1RHSR 20M1R LM Block H30×W44×L76mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 20M1R | Height M: 30 mm | Width W: 44 mm | Length L: 76 mm | Max Rail Length: 1480 mm | Dynamic Load C: 19.8 kN | Static Load C0: 27.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-20M1LRHSR 20M1LR LM Block H30×W44×L92mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 20M1LR | Height M: 30 mm | Width W: 44 mm | Length L: 92 mm | Max Rail Length: 1480 mm | Dynamic Load C: 23.9 kN | Static Load C0: 35.8 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-25M1RHSR 25M1R LM Block H40×W48×L83.9mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 25M1R | Height M: 40 mm | Width W: 48 mm | Length L: 83.9 mm | Max Rail Length: 1500 mm | Dynamic Load C: 27.6 kN | Static Load C0: 36.4 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-25M1LRHSR 25M1LR LM Block H40×W48×L103mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 25M1LR | Height M: 40 mm | Width W: 48 mm | Length L: 103 mm | Max Rail Length: 1500 mm | Dynamic Load C: 35.2 kN | Static Load C0: 51.6 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-30M1RHSR 30M1R LM Block H45×W60×L98.8mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 30M1R | Height M: 45 mm | Width W: 60 mm | Length L: 98.8 mm | Max Rail Length: 1500 mm | Dynamic Load C: 40.5 kN | Static Load C0: 53.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-30M1LRHSR 30M1LR LM Block H45×W60×L121.4mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 30M1LR | Height M: 45 mm | Width W: 60 mm | Length L: 121.4 mm | Max Rail Length: 1500 mm | Dynamic Load C: 48.9 kN | Static Load C0: 70.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-35M1RHSR 35M1R LM Block H55×W70×L112mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 35M1R | Height M: 55 mm | Width W: 70 mm | Length L: 112 mm | Max Rail Length: 1500 mm | Dynamic Load C: 53.9 kN | Static Load C0: 70.2 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
HSR-35M1LRHSR 35M1LR LM Block H55×W70×L137.4mm | Type: High Temperature LM Guide Block | Series: HSR-M1 | Model: HSR 35M1LR | Height M: 55 mm | Width W: 70 mm | Length L: 137.4 mm | Max Rail Length: 1500 mm | Dynamic Load C: 65 kN | Static Load C0: 91.7 kN | Max Temperature: 150°C | Material: Stainless Steel | Mount: Narrow Width Tapped | Application: High-temp / Clean room | Brand: THK
