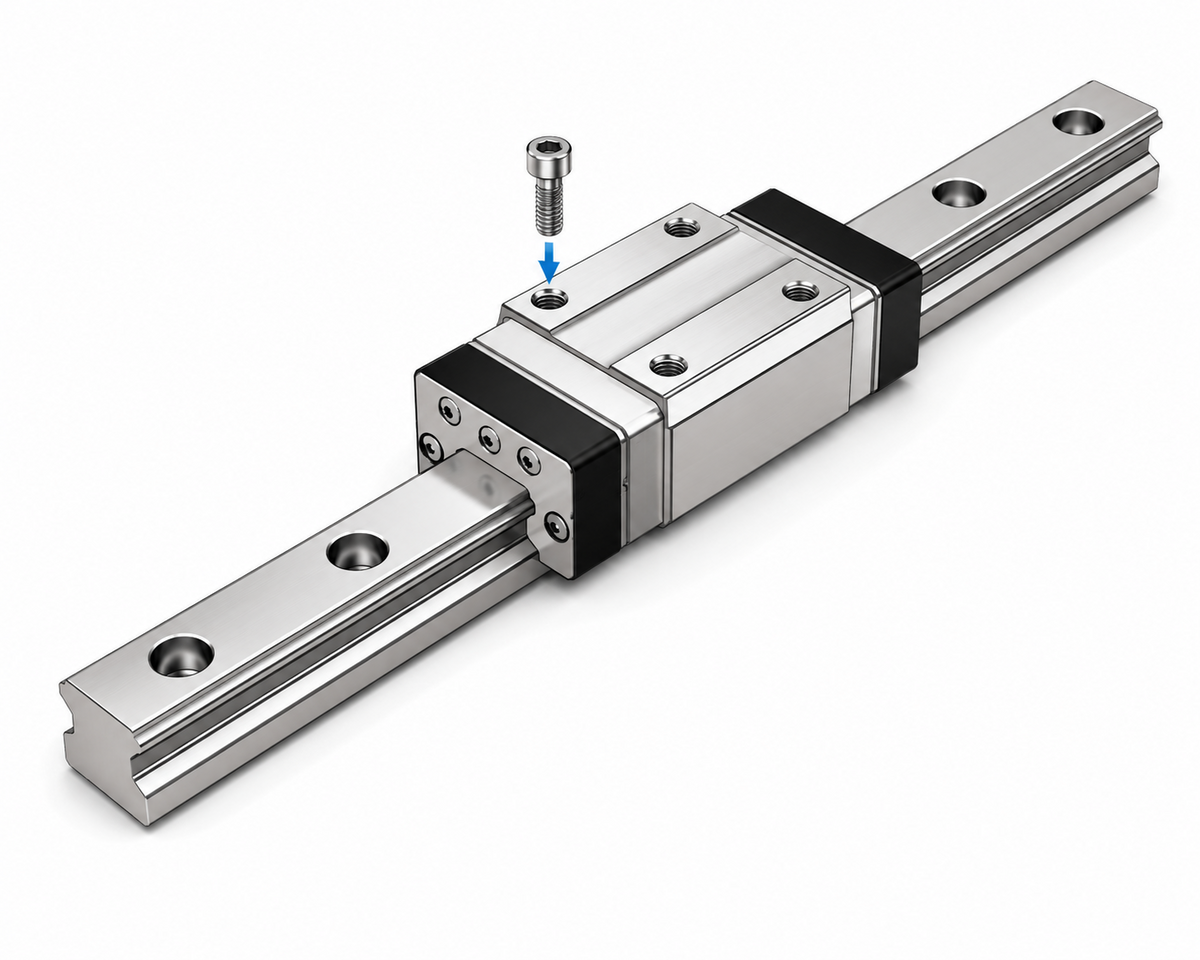

THK HSR-M1VV Medium/Low Vacuum LM Guide Block (Narrow Width, Stainless, 10⁻³ Pa)

THK HSR-M1VV Medium/Low Vacuum LM Guide Block (Narrow Width, Stainless, 10⁻³ Pa)

Medium/Low vacuum type HSR LM Guide.

Key features

  • Narrow block width with tapped holes
  • Usable from atmospheric pressure to vacuum (10⁻³ Pa)
  • Baking temperature up to 200°C
  • New labyrinth end seal for long-term vacuum use
  • Vacuum-grade grease for stable rolling resistance

Specifications

Type Medium/Low Vacuum LM Guide Block
Series HSR-M1VV
Model HSR15M1RVV
Height M 28 mm
Width W 34 mm
Length L 75 mm
Max Rail Length 1240 mm
Dynamic Load C 8.33 kN
Static Load C0 13.5 kN
Vacuum Rating Atmospheric ~ 10⁻³ Pa
Max Baking Temperature 200°C
Seal Labyrinth End Seal
HSR15M1RVV HSR15M1RVV LM Block H28×W34×L75mm | Type: Medium/Low Vacuum LM Guide Block | Series: HSR-M1VV | Model: HSR15M1RVV | Height M: 28 mm | Width W: 34 mm | Length L: 75 mm | Max Rail Length: 1240 mm | Dynamic Load C: 8.33 kN | Static Load C0: 13.5 kN | Vacuum Rating: Atmospheric ~ 10⁻³ Pa | Max Baking Temperature: 200°C | Seal: Labyrinth End Seal | Mount: Narrow Width Tapped | Brand: THK
LM GuidesTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HSR-M1VV Medium/Low Vacuum LM Guide Block (Narrow Width, Stainless, 10⁻³ Pa)

Brand THK·LM Guides

Available part numbers (1)

HSR15M1RVV

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSR15M1RVVHSR15M1RVV LM Block H28×W34×L75mm | Type: Medium/Low Vacuum LM Guide Block | Series: HSR-M1VV | Model: HSR15M1RVV | Height M: 28 mm | Width W: 34 mm | Length L: 75 mm | Max Rail Length: 1240 mm | Dynamic Load C: 8.33 kN | Static Load C0: 13.5 kN | Vacuum Rating: Atmospheric ~ 10⁻³ Pa | Max Baking Temperature: 200°C | Seal: Labyrinth End Seal | Mount: Narrow Width Tapped | Brand: THK
