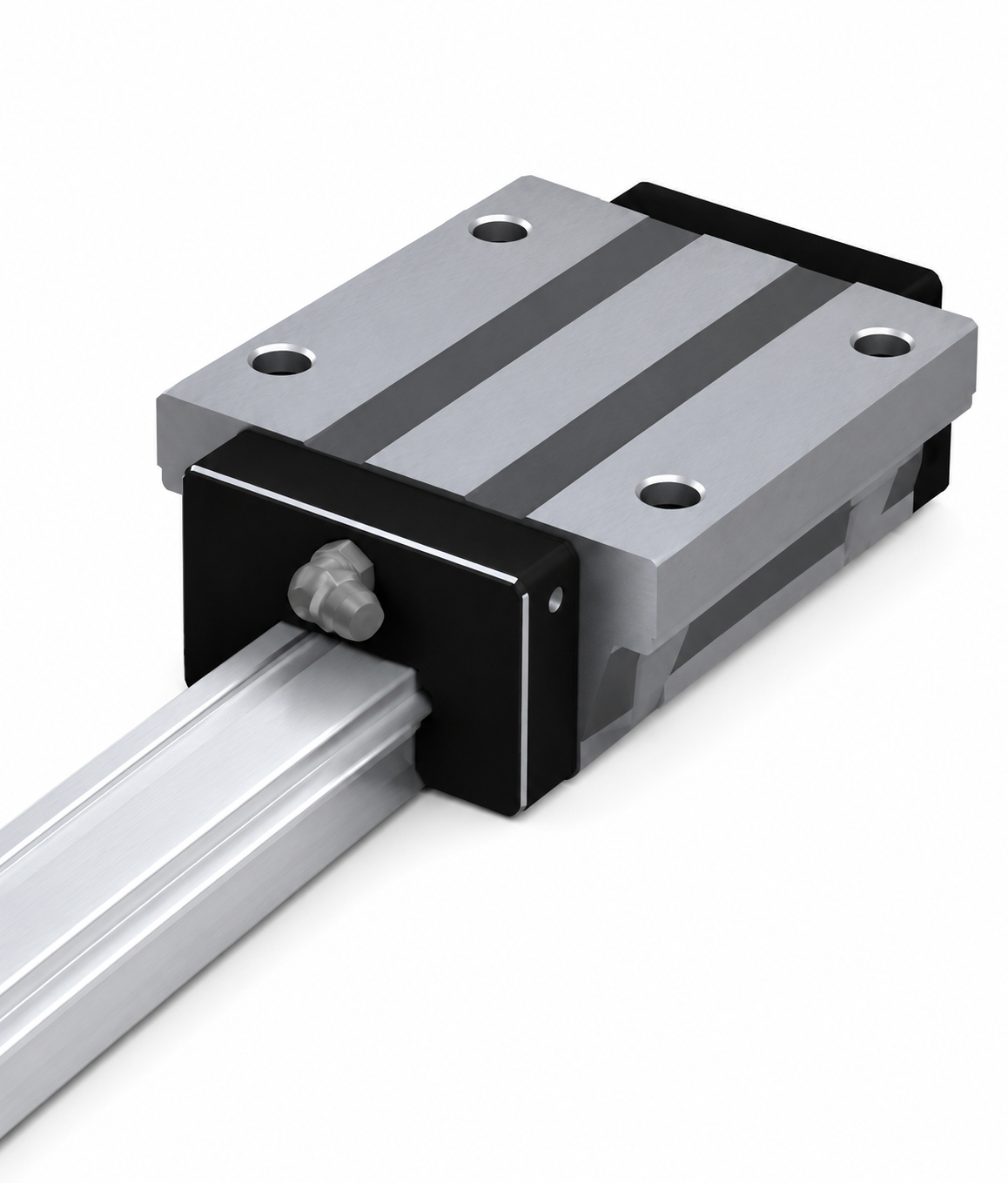

THK HSR-XSCM/XCM/XLCM Miniature LM Guide Block (Full Ball, Flange, Stainless)

Miniature Full ball type LM Guide.

Key features

HSR miniature series — stainless steel rail, block and balls
Flange type (C type)
Short/Standard/Long block lengths available. 4-direction equal load, 4-row high rigidity
THK Circular Arc groove (DF structure)

Specifications

Type	Miniature LM Guide Block
Series	HSR
Max Rail Length	3000 mm
Material	Stainless Steel
Structure	Full Ball DF
Mount	Flange (C type)
Load Type	4-Direction Equal
Configuration	4-row High Rigidity
Brand	THK

HSR8XSCM		HSR8XSCM LM Block H10×W24×L18mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR8XSCM \| Height M: 10 mm \| Width W: 24 mm \| Length L: 18 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 0.85 kN \| Static Load C0: 1.24 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
HSR8XCM		HSR8XCM LM Block H10×W24×L24mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR8XCM \| Height M: 10 mm \| Width W: 24 mm \| Length L: 24 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 1.2 kN \| Static Load C0: 2.02 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
HSR8XLCM		HSR8XLCM LM Block H10×W24×L30.5mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR8XLCM \| Height M: 10 mm \| Width W: 24 mm \| Length L: 30.5 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 1.5 kN \| Static Load C0: 2.8 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
HSR10XSCM		HSR10XSCM LM Block H12×W30×L24mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR10XSCM \| Height M: 12 mm \| Width W: 30 mm \| Length L: 24 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 1.54 kN \| Static Load C0: 2.18 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
HSR10XCM		HSR10XCM LM Block H12×W30×L31mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR10XCM \| Height M: 12 mm \| Width W: 30 mm \| Length L: 31 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 2.16 kN \| Static Load C0: 3.54 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
HSR10XLCM		HSR10XLCM LM Block H12×W30×L40mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR10XLCM \| Height M: 12 mm \| Width W: 30 mm \| Length L: 40 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 2.72 kN \| Static Load C0: 4.9 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
HSR12XSCM		HSR12XSCM LM Block H19×W40×L34mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR12XSCM \| Height M: 19 mm \| Width W: 40 mm \| Length L: 34 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 3.95 kN \| Static Load C0: 5.39 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
HSR12XCM		HSR12XCM LM Block H19×W40×L45mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR12XCM \| Height M: 19 mm \| Width W: 40 mm \| Length L: 45 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 5.54 kN \| Static Load C0: 8.75 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
HSR12XLCM		HSR12XLCM LM Block H19×W40×L58mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR12XLCM \| Height M: 19 mm \| Width W: 40 mm \| Length L: 58 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 6.96 kN \| Static Load C0: 12.1 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK

LM GuidesTHK

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HSR-XSCM/XCM/XLCM Miniature LM Guide Block (Full Ball, Flange, Stainless)

Brand THK·LM Guides

Available part numbers (9)

HSR8XSCM, HSR8XCM, HSR8XLCM, HSR10XSCM, HSR10XCM, HSR10XLCM, HSR12XSCM, HSR12XCM, HSR12XLCM

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HSR8XSCM	HSR8XSCM LM Block H10×W24×L18mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR8XSCM \| Height M: 10 mm \| Width W: 24 mm \| Length L: 18 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 0.85 kN \| Static Load C0: 1.24 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
	HSR8XCM	HSR8XCM LM Block H10×W24×L24mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR8XCM \| Height M: 10 mm \| Width W: 24 mm \| Length L: 24 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 1.2 kN \| Static Load C0: 2.02 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
	HSR8XLCM	HSR8XLCM LM Block H10×W24×L30.5mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR8XLCM \| Height M: 10 mm \| Width W: 24 mm \| Length L: 30.5 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 1.5 kN \| Static Load C0: 2.8 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
	HSR10XSCM	HSR10XSCM LM Block H12×W30×L24mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR10XSCM \| Height M: 12 mm \| Width W: 30 mm \| Length L: 24 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 1.54 kN \| Static Load C0: 2.18 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
	HSR10XCM	HSR10XCM LM Block H12×W30×L31mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR10XCM \| Height M: 12 mm \| Width W: 30 mm \| Length L: 31 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 2.16 kN \| Static Load C0: 3.54 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
	HSR10XLCM	HSR10XLCM LM Block H12×W30×L40mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR10XLCM \| Height M: 12 mm \| Width W: 30 mm \| Length L: 40 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 2.72 kN \| Static Load C0: 4.9 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
	HSR12XSCM	HSR12XSCM LM Block H19×W40×L34mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR12XSCM \| Height M: 19 mm \| Width W: 40 mm \| Length L: 34 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 3.95 kN \| Static Load C0: 5.39 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
	HSR12XCM	HSR12XCM LM Block H19×W40×L45mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR12XCM \| Height M: 19 mm \| Width W: 40 mm \| Length L: 45 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 5.54 kN \| Static Load C0: 8.75 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK
	HSR12XLCM	HSR12XLCM LM Block H19×W40×L58mm \| Type: Miniature LM Guide Block \| Series: HSR \| Model: HSR12XLCM \| Height M: 19 mm \| Width W: 40 mm \| Length L: 58 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 6.96 kN \| Static Load C0: 12.1 kN \| Material: Stainless Steel \| Structure: Full Ball DF \| Mount: Flange (C type) \| Load Type: 4-Direction Equal \| Configuration: 4-row High Rigidity \| Brand: THK

Need a different model, or a part not listed here? Send us your parts list →
