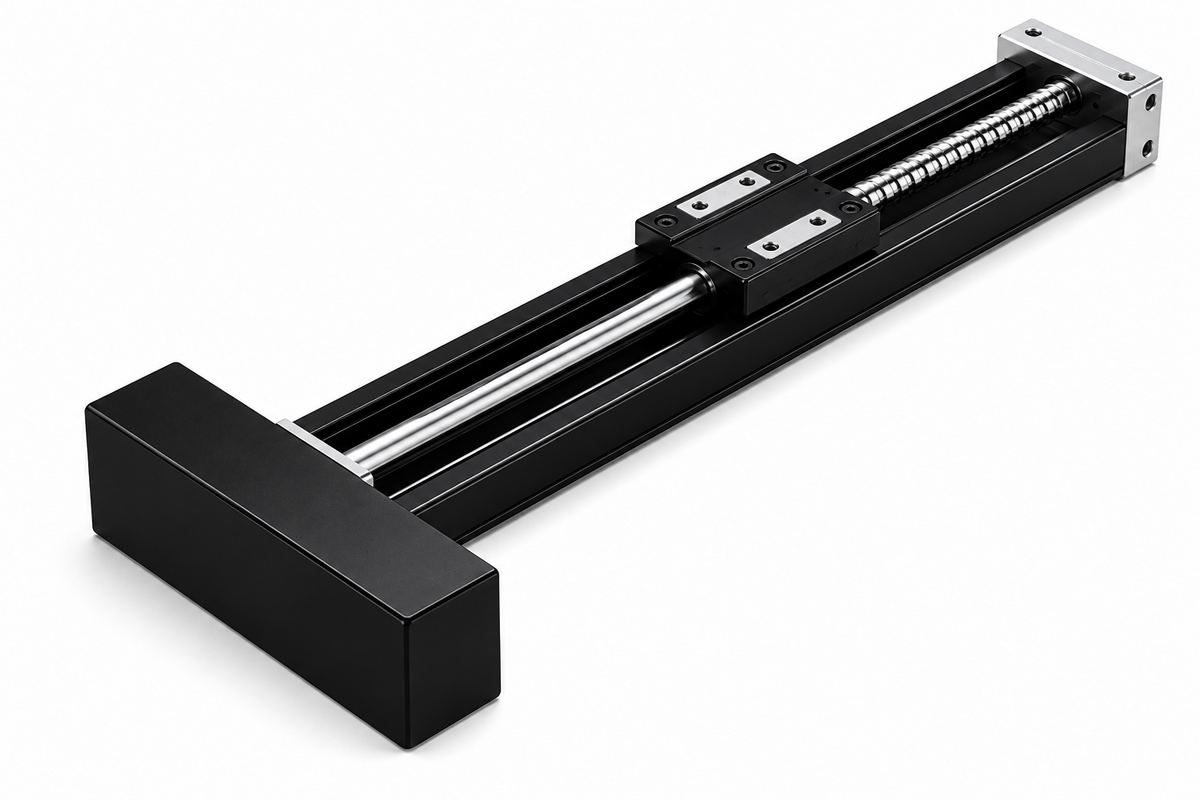

THK KR26 LM Guide Actuator, Motor Parallel

THK KR26 LM Guide Actuator, Motor Parallel

THK KR26 LM Guide Actuator, motor parallel configuration.

Key features

  • Available with or without cover
  • Long block ×1 (A-type) or ×2 (B-type)
  • Integrated LM block and ball screw nut for compact design
  • Equal load capacity in 4 directions
  • Stroke range: 45–210 mm
  • See model number configuration guide A2-136

Specifications

Motor Mounting Parallel
KR2630A-0060 KR26 No Cover Parallel, Block×1, Stroke 60mm | Model: KR26, Long Block ×1 (A-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 60 mm | Outer Rail Length: 150 mm | Overall Length L1: 201.8 mm | C: 80 mm | G: 35 mm | Mounting Holes n: 2 | Mass: 1.26 kg
KR2630A-0110 KR26 No Cover Parallel, Block×1, Stroke 110mm | Model: KR26, Long Block ×1 (A-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 110 mm | Outer Rail Length: 200 mm | Overall Length L1: 251.8 mm | C: 160 mm | G: 20 mm | Mounting Holes n: 3 | Mass: 1.47 kg
KR2630A-0160 KR26 No Cover Parallel, Block×1, Stroke 160mm | Model: KR26, Long Block ×1 (A-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 160 mm | Outer Rail Length: 250 mm | Overall Length L1: 301.8 mm | C: 160 mm | G: 45 mm | Mounting Holes n: 3 | Mass: 1.69 kg
KR2630A-0210 KR26 No Cover Parallel, Block×1, Stroke 210mm | Model: KR26, Long Block ×1 (A-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 210 mm | Outer Rail Length: 300 mm | Overall Length L1: 351.8 mm | C: 240 mm | G: 30 mm | Mounting Holes n: 4 | Mass: 1.9 kg
KR2630B-0045 KR26 No Cover Parallel, Block×2, Stroke 45mm | Model: KR26, Long Block ×2 (B-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 45 mm | Outer Rail Length: 200 mm | Overall Length L1: 251.8 mm | C: 160 mm | G: 20 mm | Mounting Holes n: 3 | Mass: 1.66 kg
KR2630B-0095 KR26 No Cover Parallel, Block×2, Stroke 95mm | Model: KR26, Long Block ×2 (B-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 95 mm | Outer Rail Length: 250 mm | Overall Length L1: 301.8 mm | C: 160 mm | G: 45 mm | Mounting Holes n: 3 | Mass: 1.88 kg
KR2630B-0145 KR26 No Cover Parallel, Block×2, Stroke 145mm | Model: KR26, Long Block ×2 (B-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 145 mm | Outer Rail Length: 300 mm | Overall Length L1: 351.8 mm | C: 240 mm | G: 30 mm | Mounting Holes n: 4 | Mass: 2.09 kg
KR2631A-0060 KR26 With Cover Parallel, Block×1, Stroke 60mm | Model: KR26, Long Block ×1 (A-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 60 mm | Outer Rail Length: 150 mm | Overall Length L1: 201.8 mm | C: 80 mm | G: 35 mm | Mounting Holes n: 2 | Mass: 1.43 kg
KR2631A-0110 KR26 With Cover Parallel, Block×1, Stroke 110mm | Model: KR26, Long Block ×1 (A-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 110 mm | Outer Rail Length: 200 mm | Overall Length L1: 251.8 mm | C: 160 mm | G: 20 mm | Mounting Holes n: 3 | Mass: 1.65 kg
KR2631A-0160 KR26 With Cover Parallel, Block×1, Stroke 160mm | Model: KR26, Long Block ×1 (A-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 160 mm | Outer Rail Length: 250 mm | Overall Length L1: 301.8 mm | C: 160 mm | G: 45 mm | Mounting Holes n: 3 | Mass: 1.87 kg
KR2631A-0210 KR26 With Cover Parallel, Block×1, Stroke 210mm | Model: KR26, Long Block ×1 (A-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 210 mm | Outer Rail Length: 300 mm | Overall Length L1: 351.8 mm | C: 240 mm | G: 30 mm | Mounting Holes n: 4 | Mass: 2.1 kg
KR2631B-0045 KR26 With Cover Parallel, Block×2, Stroke 45mm | Model: KR26, Long Block ×2 (B-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 45 mm | Outer Rail Length: 200 mm | Overall Length L1: 251.8 mm | C: 160 mm | G: 20 mm | Mounting Holes n: 3 | Mass: 1.93 kg
KR2631B-0095 KR26 With Cover Parallel, Block×2, Stroke 95mm | Model: KR26, Long Block ×2 (B-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 95 mm | Outer Rail Length: 250 mm | Overall Length L1: 301.8 mm | C: 160 mm | G: 45 mm | Mounting Holes n: 3 | Mass: 2.15 kg
KR2631B-0145 KR26 With Cover Parallel, Block×2, Stroke 145mm | Model: KR26, Long Block ×2 (B-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 145 mm | Outer Rail Length: 300 mm | Overall Length L1: 351.8 mm | C: 240 mm | G: 30 mm | Mounting Holes n: 4 | Mass: 2.38 kg
LM Guide ActuatorsTHK
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK KR26 LM Guide Actuator, Motor Parallel

Brand THK·LM Guide Actuators

Available part numbers (14)

KR2630A-0060, KR2630A-0110, KR2630A-0160, KR2630A-0210, KR2630B-0045, KR2630B-0095, KR2630B-0145, KR2631A-0060, KR2631A-0110, KR2631A-0160 + 4 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KR2630A-0060KR26 No Cover Parallel, Block×1, Stroke 60mm | Model: KR26, Long Block ×1 (A-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 60 mm | Outer Rail Length: 150 mm | Overall Length L1: 201.8 mm | C: 80 mm | G: 35 mm | Mounting Holes n: 2 | Mass: 1.26 kg
KR2630A-0110KR26 No Cover Parallel, Block×1, Stroke 110mm | Model: KR26, Long Block ×1 (A-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 110 mm | Outer Rail Length: 200 mm | Overall Length L1: 251.8 mm | C: 160 mm | G: 20 mm | Mounting Holes n: 3 | Mass: 1.47 kg
KR2630A-0160KR26 No Cover Parallel, Block×1, Stroke 160mm | Model: KR26, Long Block ×1 (A-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 160 mm | Outer Rail Length: 250 mm | Overall Length L1: 301.8 mm | C: 160 mm | G: 45 mm | Mounting Holes n: 3 | Mass: 1.69 kg
KR2630A-0210KR26 No Cover Parallel, Block×1, Stroke 210mm | Model: KR26, Long Block ×1 (A-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 210 mm | Outer Rail Length: 300 mm | Overall Length L1: 351.8 mm | C: 240 mm | G: 30 mm | Mounting Holes n: 4 | Mass: 1.9 kg
KR2630B-0045KR26 No Cover Parallel, Block×2, Stroke 45mm | Model: KR26, Long Block ×2 (B-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 45 mm | Outer Rail Length: 200 mm | Overall Length L1: 251.8 mm | C: 160 mm | G: 20 mm | Mounting Holes n: 3 | Mass: 1.66 kg
KR2630B-0095KR26 No Cover Parallel, Block×2, Stroke 95mm | Model: KR26, Long Block ×2 (B-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 95 mm | Outer Rail Length: 250 mm | Overall Length L1: 301.8 mm | C: 160 mm | G: 45 mm | Mounting Holes n: 3 | Mass: 1.88 kg
KR2630B-0145KR26 No Cover Parallel, Block×2, Stroke 145mm | Model: KR26, Long Block ×2 (B-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 145 mm | Outer Rail Length: 300 mm | Overall Length L1: 351.8 mm | C: 240 mm | G: 30 mm | Mounting Holes n: 4 | Mass: 2.09 kg
KR2631A-0060KR26 With Cover Parallel, Block×1, Stroke 60mm | Model: KR26, Long Block ×1 (A-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 60 mm | Outer Rail Length: 150 mm | Overall Length L1: 201.8 mm | C: 80 mm | G: 35 mm | Mounting Holes n: 2 | Mass: 1.43 kg
KR2631A-0110KR26 With Cover Parallel, Block×1, Stroke 110mm | Model: KR26, Long Block ×1 (A-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 110 mm | Outer Rail Length: 200 mm | Overall Length L1: 251.8 mm | C: 160 mm | G: 20 mm | Mounting Holes n: 3 | Mass: 1.65 kg
KR2631A-0160KR26 With Cover Parallel, Block×1, Stroke 160mm | Model: KR26, Long Block ×1 (A-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 160 mm | Outer Rail Length: 250 mm | Overall Length L1: 301.8 mm | C: 160 mm | G: 45 mm | Mounting Holes n: 3 | Mass: 1.87 kg
KR2631A-0210KR26 With Cover Parallel, Block×1, Stroke 210mm | Model: KR26, Long Block ×1 (A-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 210 mm | Outer Rail Length: 300 mm | Overall Length L1: 351.8 mm | C: 240 mm | G: 30 mm | Mounting Holes n: 4 | Mass: 2.1 kg
KR2631B-0045KR26 With Cover Parallel, Block×2, Stroke 45mm | Model: KR26, Long Block ×2 (B-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 45 mm | Outer Rail Length: 200 mm | Overall Length L1: 251.8 mm | C: 160 mm | G: 20 mm | Mounting Holes n: 3 | Mass: 1.93 kg
KR2631B-0095KR26 With Cover Parallel, Block×2, Stroke 95mm | Model: KR26, Long Block ×2 (B-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 95 mm | Outer Rail Length: 250 mm | Overall Length L1: 301.8 mm | C: 160 mm | G: 45 mm | Mounting Holes n: 3 | Mass: 2.15 kg
KR2631B-0145KR26 With Cover Parallel, Block×2, Stroke 145mm | Model: KR26, Long Block ×2 (B-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 145 mm | Outer Rail Length: 300 mm | Overall Length L1: 351.8 mm | C: 240 mm | G: 30 mm | Mounting Holes n: 4 | Mass: 2.38 kg
