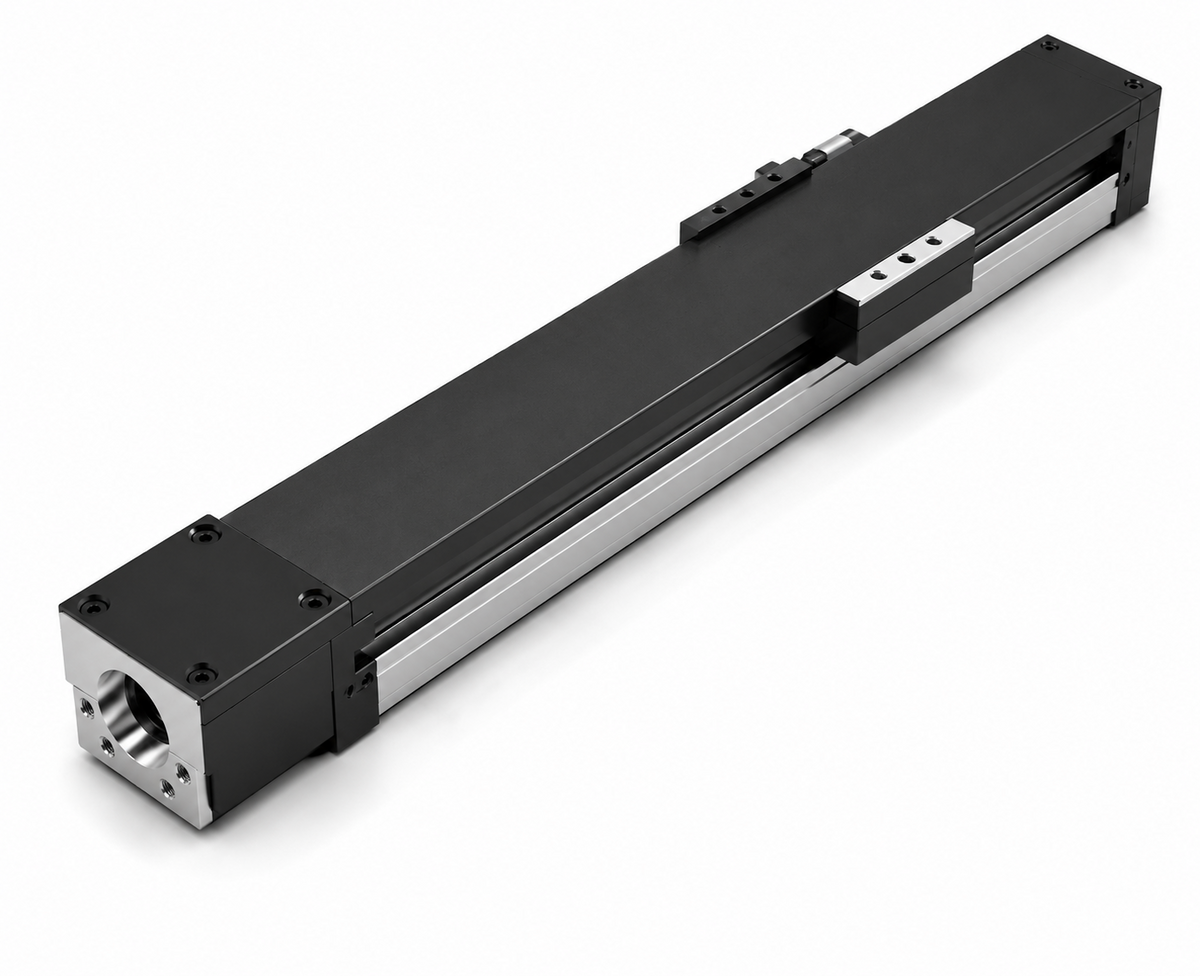

THK KR45H LM Guide Actuator, Motor In-line (Series), Short Block C/D

THK KR45H LM Guide Actuator, Motor In-line (Series), Short Block C/D

THK KR45H LM Guide Actuator, motor in-line (series) configuration.

Key features

  • Available with or without cover
  • Short block ×1 (C-type) or ×2 (D-type)
  • Integrated LM block and ball screw nut for compact design
  • Equal load capacity in 4 directions
  • Stroke range: 230–830 mm (C-type), 160–760 mm (D-type)
  • See model number configuration guide A2-136

Specifications

Motor Mounting In-line (Series)
