• THK LG Guide Ball Bush Shaft (LG4, LG6, LG8)
1 1

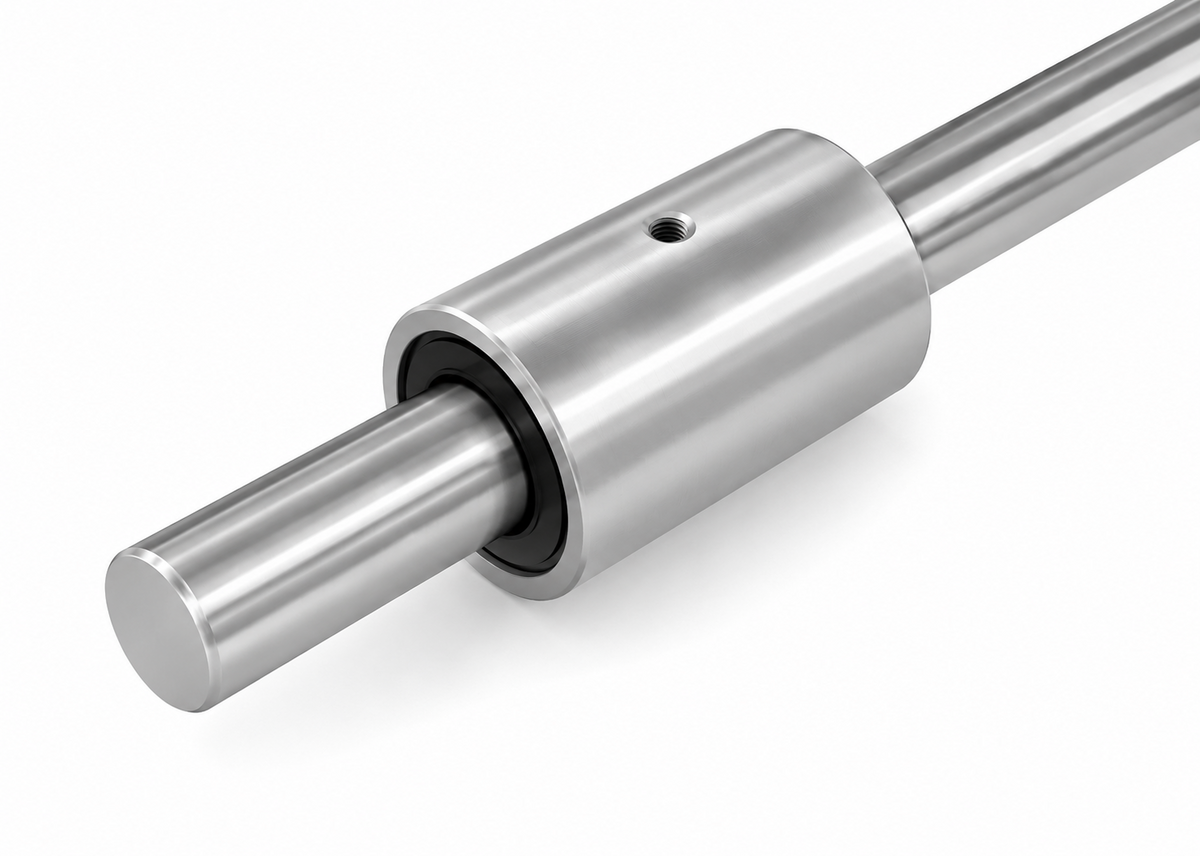

THK LG Guide Ball Bush Shaft (LG4, LG6, LG8)

THK LG Guide Ball Bush Shaft (LG4, LG6, LG8)

Guide Ball Bush shaft for LG-type nut.

Key features

  • Material: SUJ2, hardness 55~63HRC
  • Set-free — can be ordered independently from nut
  • Standard lengths: 100~250mm depending on diameter
  • Custom lengths available on request

Specifications

Material SUJ2
Hardness 55~63HRC
Order Specify length on order (+L suffix, e.g. LG4-100L)
LG4 THK Guide Ball Bush shaft LG4, φ4mm, max 150mm | Shaft Dia.: D0=4mm (h7) | Max Length: 150mm | Standard Lengths: 100, 150mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L)
LG6 THK Guide Ball Bush shaft LG6, φ6mm, max 200mm | Shaft Dia.: D0=6mm (h7) | Max Length: 200mm | Standard Lengths: 100, 150, 200mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L)
LG8 THK Guide Ball Bush shaft LG8, φ8mm, max 250mm | Shaft Dia.: D0=8mm (h7) | Max Length: 250mm | Standard Lengths: 100, 150, 200, 250mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L)
Linear BushingsTHK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LG Guide Ball Bush Shaft (LG4, LG6, LG8)

Brand THK·Linear Bushings

Available part numbers (3)

LG4, LG6, LG8

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LG4THK Guide Ball Bush shaft LG4, φ4mm, max 150mm | Shaft Dia.: D0=4mm (h7) | Max Length: 150mm | Standard Lengths: 100, 150mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L)
LG6THK Guide Ball Bush shaft LG6, φ6mm, max 200mm | Shaft Dia.: D0=6mm (h7) | Max Length: 200mm | Standard Lengths: 100, 150, 200mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L)
LG8THK Guide Ball Bush shaft LG8, φ8mm, max 250mm | Shaft Dia.: D0=8mm (h7) | Max Length: 250mm | Standard Lengths: 100, 150, 200, 250mm | Material: SUJ2 | Hardness: 55~63HRC | Order: Specify length on order (+L suffix, e.g. LG4-100L)
