• THK Linear Ball Slide LS8 (W6.2×H4.7)
1 1

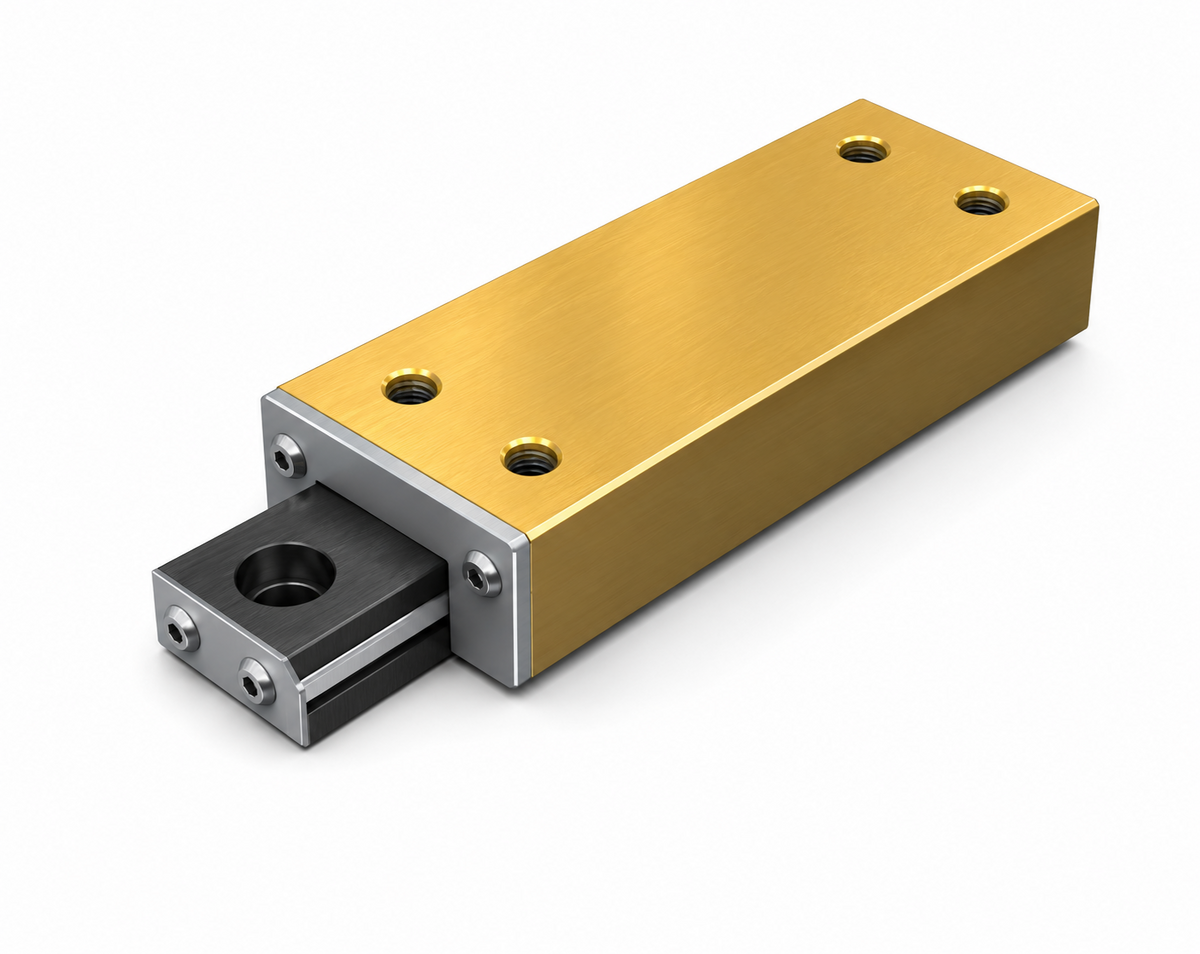

THK Linear Ball Slide LS8 (W6.2×H4.7)

THK Linear Ball Slide LS8 (W6.2×H4.7)

THK LS Linear Ball Slide, LS8 frame.

Key features

  • Base width W1=6.2mm, height H=4.7mm
  • Mounting hole d×D×h = 2.2×3.9×1.4mm, table tap M2×3
  • Stroke range 13~50mm
  • Basic dynamic load rating C = 39.2~98.0 N; static C0 = 68.6~167.0 N

Specifications

Frame LS8
Slide Height (M) 8 mm
Slide Width (W) 14.2 mm
Base Width (W1) 6.2 mm
Base Height (H) 4.7 mm
Mounting Hole (d×D×h) 2.2×3.9×1.4 mm
Table Tap M2×3
LS827 THK Linear Ball Slide LS827, stroke 13mm, C=39.2N, 9g | Frame: LS8 | Stroke: 13 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 28.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 9 g | Basic Dynamic Load Rating C: 39.2 N | Basic Static Load Rating C0: 68.6 N | Static Allowable Moment MA=MB: 0.2 N·m | Static Allowable Moment MC: 0.29 N·m
LS852 THK Linear Ball Slide LS852, stroke 25mm, C=68.6N, 15g | Frame: LS8 | Stroke: 25 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 53.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 15 g | Basic Dynamic Load Rating C: 68.6 N | Basic Static Load Rating C0: 118.0 N | Static Allowable Moment MA=MB: 0.49 N·m | Static Allowable Moment MC: 0.39 N·m
LS877 THK Linear Ball Slide LS877, stroke 50mm, C=98.0N, 21g | Frame: LS8 | Stroke: 50 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 78.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 21 g | Basic Dynamic Load Rating C: 98.0 N | Basic Static Load Rating C0: 167.0 N | Static Allowable Moment MA=MB: 0.88 N·m | Static Allowable Moment MC: 0.59 N·m
Roller GuidesTHK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK Linear Ball Slide LS8 (W6.2×H4.7)

Brand THK·Roller Guides

Available part numbers (3)

LS827, LS852, LS877

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LS827THK Linear Ball Slide LS827, stroke 13mm, C=39.2N, 9g | Frame: LS8 | Stroke: 13 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 28.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 9 g | Basic Dynamic Load Rating C: 39.2 N | Basic Static Load Rating C0: 68.6 N | Static Allowable Moment MA=MB: 0.2 N·m | Static Allowable Moment MC: 0.29 N·m
LS852THK Linear Ball Slide LS852, stroke 25mm, C=68.6N, 15g | Frame: LS8 | Stroke: 25 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 53.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 15 g | Basic Dynamic Load Rating C: 68.6 N | Basic Static Load Rating C0: 118.0 N | Static Allowable Moment MA=MB: 0.49 N·m | Static Allowable Moment MC: 0.39 N·m
LS877THK Linear Ball Slide LS877, stroke 50mm, C=98.0N, 21g | Frame: LS8 | Stroke: 50 mm | Slide Height (M): 8 mm | Slide Width (W): 14.2 mm | Slide Length (L): 78.7 mm | Base Width (W1): 6.2 mm | Base Height (H): 4.7 mm | Mounting Hole (d×D×h): 2.2×3.9×1.4 mm | Table Tap: M2×3 | Mass: 21 g | Basic Dynamic Load Rating C: 98.0 N | Basic Static Load Rating C0: 167.0 N | Static Allowable Moment MA=MB: 0.88 N·m | Static Allowable Moment MC: 0.59 N·m

Need a different model, or a part not listed here? Send us your parts list →
