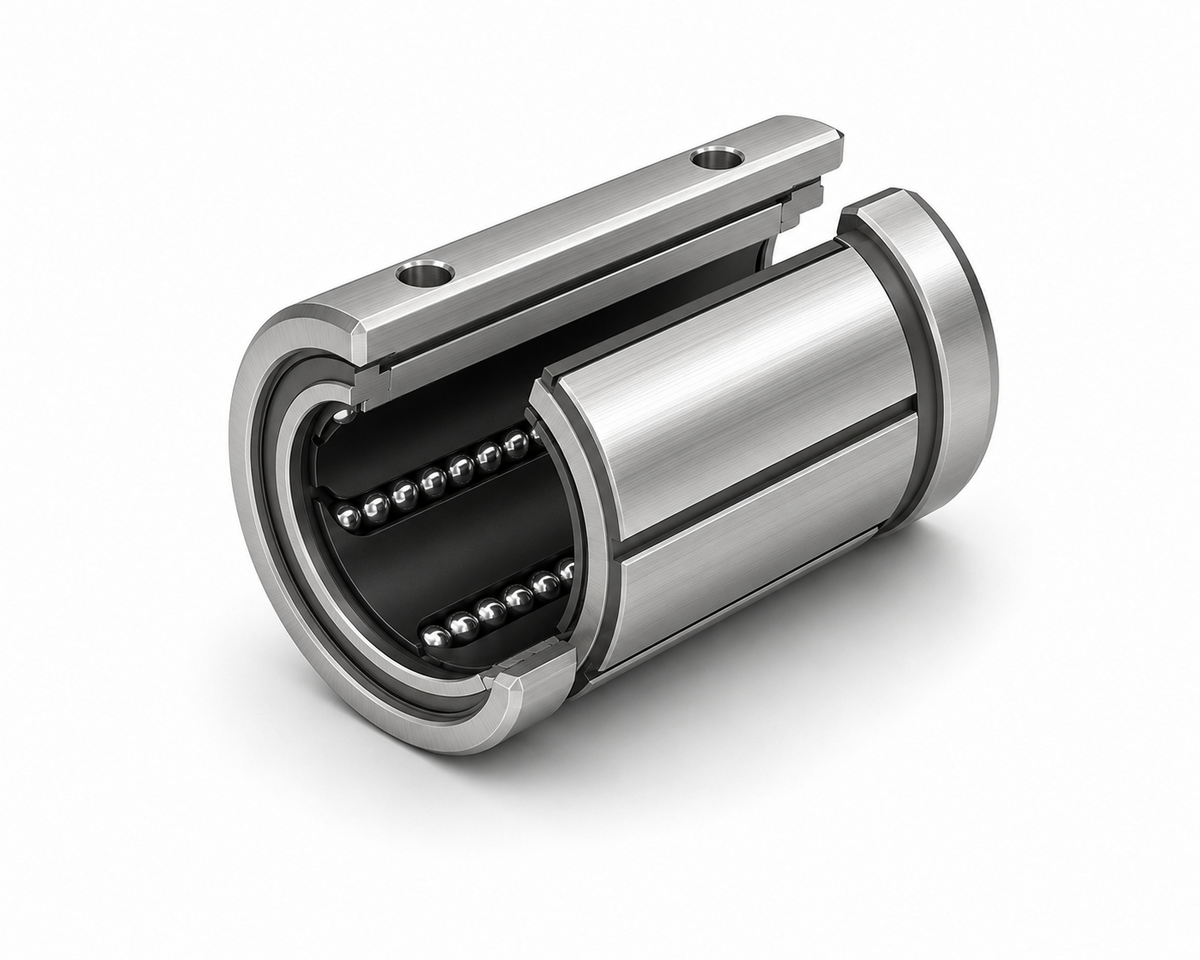

THK LM-MGA-OP Linear Bush Stainless Open Type Metal Retainer (LM13MGA-OP~LM40MGA-OP)

THK LM-MGA-OP Linear Bush Stainless Open Type Metal Retainer (LM13MGA-OP~LM40MGA-OP)

LM-MGA-OP type Linear Bush — stainless steel, open type, metal retainer.

Key features

  • One ball circuit (50~80°) cut away from outer shell
  • Usable at shaft deflection support points
  • Clearance adjustable
  • Stainless steel nut and balls
  • Metal retainer only
  • Shaft diameters: 13~40mm

Specifications

Material Stainless steel (nut and balls)
Retainer Metal only
Type Open type (1 circuit cutaway, 50~80°)
Feature Usable at shaft deflection support points
Clearance Adjustable
LM13MGA-OP THK Linear Bush stainless open type, shaft φ13mm, OD φ23mm, L=32mm | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM16MGA-OP THK Linear Bush stainless open type, shaft φ16mm, OD φ28mm, L=37mm | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM20MGA-OP THK Linear Bush stainless open type, shaft φ20mm, OD φ32mm, L=42mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM25MGA-OP THK Linear Bush stainless open type, shaft φ25mm, OD φ40mm, L=59mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM30MGA-OP THK Linear Bush stainless open type, shaft φ30mm, OD φ45mm, L=64mm | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM35MGA-OP THK Linear Bush stainless open type, shaft φ35mm, OD φ52mm, L=70mm | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=70mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM40MGA-OP THK Linear Bush stainless open type, shaft φ40mm, OD φ60mm, L=80mm | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=80mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
Linear BushingsTHK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LM-MGA-OP Linear Bush Stainless Open Type Metal Retainer (LM13MGA-OP~LM40MGA-OP)

Brand THK·Linear Bushings

Available part numbers (7)

LM13MGA-OP, LM16MGA-OP, LM20MGA-OP, LM25MGA-OP, LM30MGA-OP, LM35MGA-OP, LM40MGA-OP

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LM13MGA-OPTHK Linear Bush stainless open type, shaft φ13mm, OD φ23mm, L=32mm | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM16MGA-OPTHK Linear Bush stainless open type, shaft φ16mm, OD φ28mm, L=37mm | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM20MGA-OPTHK Linear Bush stainless open type, shaft φ20mm, OD φ32mm, L=42mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM25MGA-OPTHK Linear Bush stainless open type, shaft φ25mm, OD φ40mm, L=59mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM30MGA-OPTHK Linear Bush stainless open type, shaft φ30mm, OD φ45mm, L=64mm | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM35MGA-OPTHK Linear Bush stainless open type, shaft φ35mm, OD φ52mm, L=70mm | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=70mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
LM40MGA-OPTHK Linear Bush stainless open type, shaft φ40mm, OD φ60mm, L=80mm | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=80mm | Material: Stainless steel (nut and balls) | Retainer: Metal only | Type: Open type (1 circuit cutaway, 50~80°) | Feature: Usable at shaft deflection support points | Clearance: Adjustable
