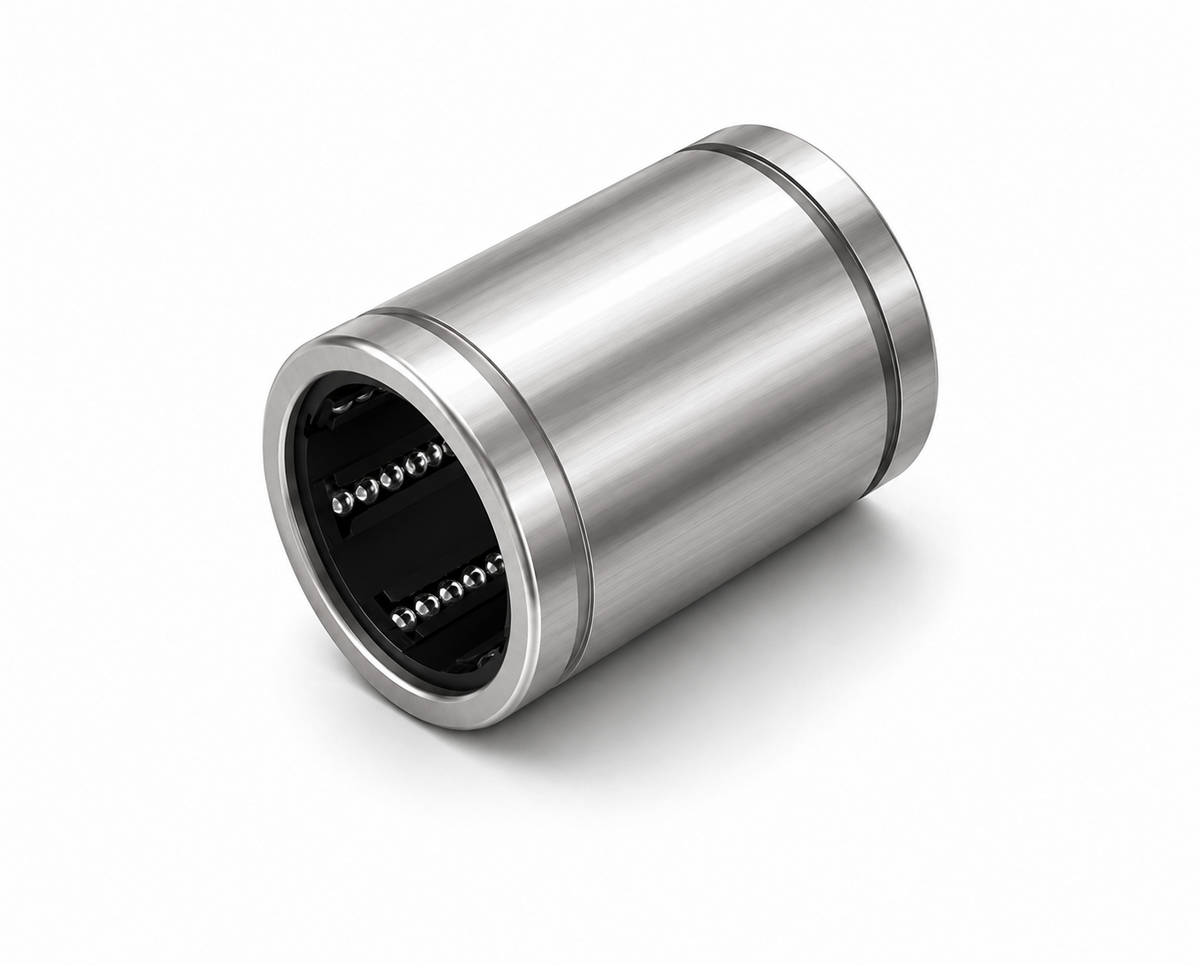

THK LME Linear Bush European Metric Series (LME5~LME80GA)

THK LME Linear Bush European Metric Series (LME5~LME80GA)

LME type Linear Bush — European metric dimension series.

Key features

  • High-precision cylindrical outer diameter for broad application
  • Shaft diameters: 5~80mm
  • LME5~LME60: synthetic resin retainer (max 80°C)
  • LME80GA: metal retainer type
  • Clearance-adjustable (-AJ) and open type (-OP) variants available from LME16
  • Metal retainer option available (suffix A)

Specifications

Oil Hole Add suffix OH on order
LME5 THK Linear Bush European metric, shaft φ5mm, OD φ12mm, L=22mm | Shaft Dia.: D0=5mm | Outer Dia.: D=12mm | Length: L=22mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order
LME8 THK Linear Bush European metric, shaft φ8mm, OD φ16mm, L=25mm | Shaft Dia.: D0=8mm | Outer Dia.: D=16mm | Length: L=25mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order
LME12 THK Linear Bush European metric, shaft φ12mm, OD φ22mm, L=32mm | Shaft Dia.: D0=12mm | Outer Dia.: D=22mm | Length: L=32mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order
LME16 THK Linear Bush European metric, shaft φ16mm, OD φ26mm, L=36mm | Shaft Dia.: D0=16mm | Outer Dia.: D=26mm | Length: L=36mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME20 THK Linear Bush European metric, shaft φ20mm, OD φ32mm, L=45mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=45mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME25 THK Linear Bush European metric, shaft φ25mm, OD φ40mm, L=58mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=58mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME30 THK Linear Bush European metric, shaft φ30mm, OD φ47mm, L=68mm | Shaft Dia.: D0=30mm | Outer Dia.: D=47mm | Length: L=68mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME40 THK Linear Bush European metric, shaft φ40mm, OD φ62mm, L=80mm | Shaft Dia.: D0=40mm | Outer Dia.: D=62mm | Length: L=80mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME50 THK Linear Bush European metric, shaft φ50mm, OD φ75mm, L=100mm | Shaft Dia.: D0=50mm | Outer Dia.: D=75mm | Length: L=100mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME60 THK Linear Bush European metric, shaft φ60mm, OD φ90mm, L=125mm | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=125mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME80GA THK Linear Bush European metric, shaft φ80mm, OD φ120mm, L=165mm | Shaft Dia.: D0=80mm | Outer Dia.: D=120mm | Length: L=165mm | Retainer: Metal | Variants: Standard / -AJ / -OP (metal retainer) | Oil Hole: Add suffix OH on order
Linear BushingsTHK
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LME Linear Bush European Metric Series (LME5~LME80GA)

Brand THK·Linear Bushings

Available part numbers (11)

LME5, LME8, LME12, LME16, LME20, LME25, LME30, LME40, LME50, LME60 + 1 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LME5THK Linear Bush European metric, shaft φ5mm, OD φ12mm, L=22mm | Shaft Dia.: D0=5mm | Outer Dia.: D=12mm | Length: L=22mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order
LME8THK Linear Bush European metric, shaft φ8mm, OD φ16mm, L=25mm | Shaft Dia.: D0=8mm | Outer Dia.: D=16mm | Length: L=25mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order
LME12THK Linear Bush European metric, shaft φ12mm, OD φ22mm, L=32mm | Shaft Dia.: D0=12mm | Outer Dia.: D=22mm | Length: L=32mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ | Oil Hole: Add suffix OH on order
LME16THK Linear Bush European metric, shaft φ16mm, OD φ26mm, L=36mm | Shaft Dia.: D0=16mm | Outer Dia.: D=26mm | Length: L=36mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME20THK Linear Bush European metric, shaft φ20mm, OD φ32mm, L=45mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=45mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME25THK Linear Bush European metric, shaft φ25mm, OD φ40mm, L=58mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=58mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME30THK Linear Bush European metric, shaft φ30mm, OD φ47mm, L=68mm | Shaft Dia.: D0=30mm | Outer Dia.: D=47mm | Length: L=68mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME40THK Linear Bush European metric, shaft φ40mm, OD φ62mm, L=80mm | Shaft Dia.: D0=40mm | Outer Dia.: D=62mm | Length: L=80mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME50THK Linear Bush European metric, shaft φ50mm, OD φ75mm, L=100mm | Shaft Dia.: D0=50mm | Outer Dia.: D=75mm | Length: L=100mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME60THK Linear Bush European metric, shaft φ60mm, OD φ90mm, L=125mm | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=125mm | Retainer: Synthetic resin (max 80°C) | Variants: Standard / -AJ / -OP | Oil Hole: Add suffix OH on order
LME80GATHK Linear Bush European metric, shaft φ80mm, OD φ120mm, L=165mm | Shaft Dia.: D0=80mm | Outer Dia.: D=120mm | Length: L=165mm | Retainer: Metal | Variants: Standard / -AJ / -OP (metal retainer) | Oil Hole: Add suffix OH on order
