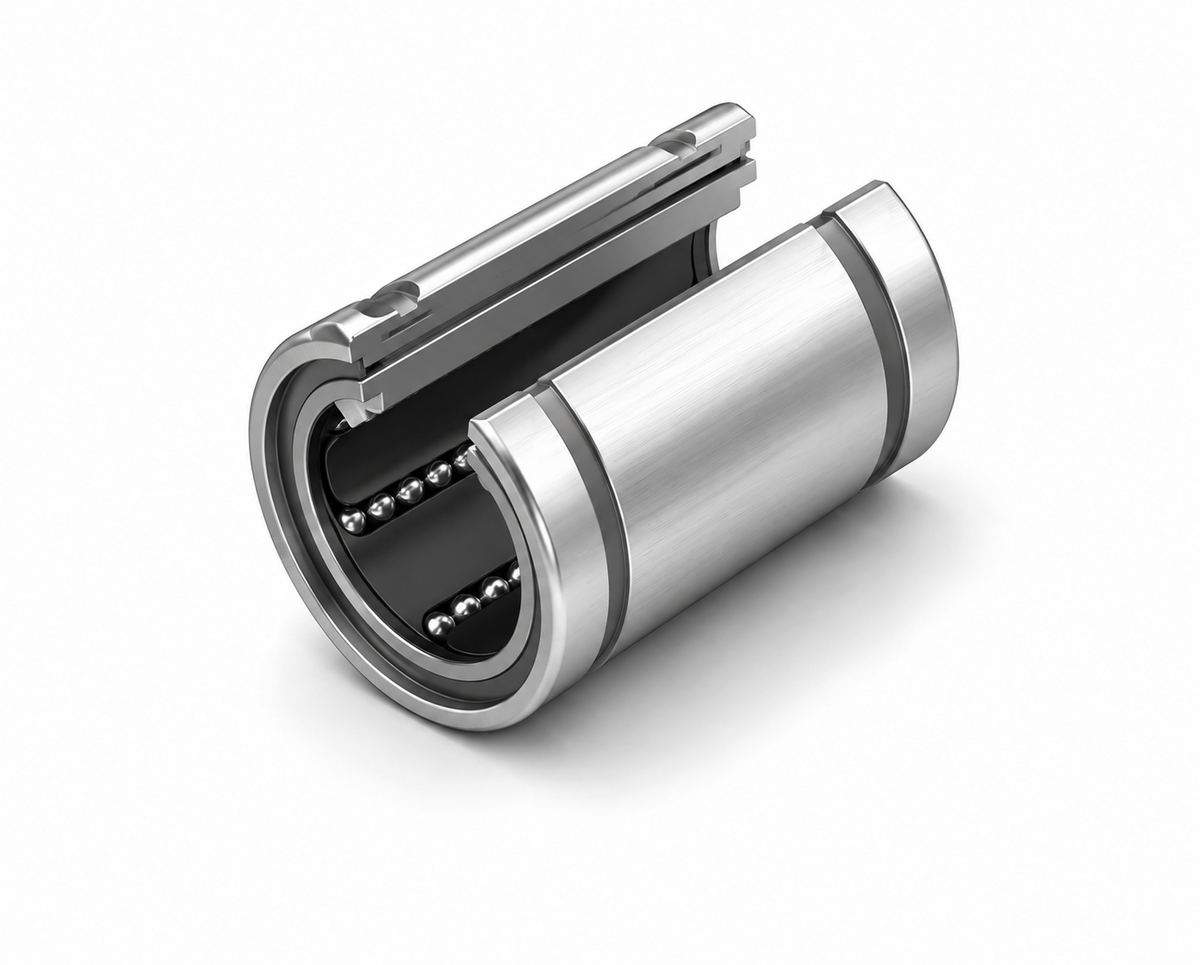

THK LME-OP Linear Bush European Metric Open Type (LME16-OP~LME80GA-OP)

THK LME-OP Linear Bush European Metric Open Type (LME16-OP~LME80GA-OP)

LME-OP type Linear Bush — European metric series, open type.

Key features

  • One ball circuit cut away from outer shell
  • Usable at shaft deflection support points
  • Clearance adjustable
  • Shaft diameters: 16~80mm
  • LME16-OP~LME60-OP: synthetic resin retainer (max 80°C)
  • LME80GA-OP: metal retainer type

Specifications

Type Open type (1 circuit cutaway)
Feature Usable at shaft deflection support points
Clearance Adjustable
Oil Hole Add suffix OH on order
LME16-OP THK Linear Bush European metric OP, shaft φ16mm, OD φ26mm, L=36mm | Shaft Dia.: D0=16mm | Outer Dia.: D=26mm | Length: L=36mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME20-OP THK Linear Bush European metric OP, shaft φ20mm, OD φ32mm, L=45mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=45mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME25-OP THK Linear Bush European metric OP, shaft φ25mm, OD φ40mm, L=58mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=58mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME30-OP THK Linear Bush European metric OP, shaft φ30mm, OD φ47mm, L=68mm | Shaft Dia.: D0=30mm | Outer Dia.: D=47mm | Length: L=68mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME40-OP THK Linear Bush European metric OP, shaft φ40mm, OD φ62mm, L=80mm | Shaft Dia.: D0=40mm | Outer Dia.: D=62mm | Length: L=80mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME50-OP THK Linear Bush European metric OP, shaft φ50mm, OD φ75mm, L=100mm | Shaft Dia.: D0=50mm | Outer Dia.: D=75mm | Length: L=100mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME60-OP THK Linear Bush European metric OP, shaft φ60mm, OD φ90mm, L=125mm | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=125mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME80GA-OP THK Linear Bush European metric OP, shaft φ80mm, OD φ120mm, L=165mm | Shaft Dia.: D0=80mm | Outer Dia.: D=120mm | Length: L=165mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Metal | Clearance: Adjustable | Oil Hole: Add suffix OH on order
Linear BushingsTHK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LME-OP Linear Bush European Metric Open Type (LME16-OP~LME80GA-OP)

Brand THK·Linear Bushings

Available part numbers (8)

LME16-OP, LME20-OP, LME25-OP, LME30-OP, LME40-OP, LME50-OP, LME60-OP, LME80GA-OP

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LME16-OPTHK Linear Bush European metric OP, shaft φ16mm, OD φ26mm, L=36mm | Shaft Dia.: D0=16mm | Outer Dia.: D=26mm | Length: L=36mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME20-OPTHK Linear Bush European metric OP, shaft φ20mm, OD φ32mm, L=45mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=45mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME25-OPTHK Linear Bush European metric OP, shaft φ25mm, OD φ40mm, L=58mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=58mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME30-OPTHK Linear Bush European metric OP, shaft φ30mm, OD φ47mm, L=68mm | Shaft Dia.: D0=30mm | Outer Dia.: D=47mm | Length: L=68mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME40-OPTHK Linear Bush European metric OP, shaft φ40mm, OD φ62mm, L=80mm | Shaft Dia.: D0=40mm | Outer Dia.: D=62mm | Length: L=80mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME50-OPTHK Linear Bush European metric OP, shaft φ50mm, OD φ75mm, L=100mm | Shaft Dia.: D0=50mm | Outer Dia.: D=75mm | Length: L=100mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME60-OPTHK Linear Bush European metric OP, shaft φ60mm, OD φ90mm, L=125mm | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=125mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Synthetic resin (max 80°C) | Clearance: Adjustable | Oil Hole: Add suffix OH on order
LME80GA-OPTHK Linear Bush European metric OP, shaft φ80mm, OD φ120mm, L=165mm | Shaft Dia.: D0=80mm | Outer Dia.: D=120mm | Length: L=165mm | Type: Open type (1 circuit cutaway) | Feature: Usable at shaft deflection support points | Retainer: Metal | Clearance: Adjustable | Oil Hole: Add suffix OH on order
