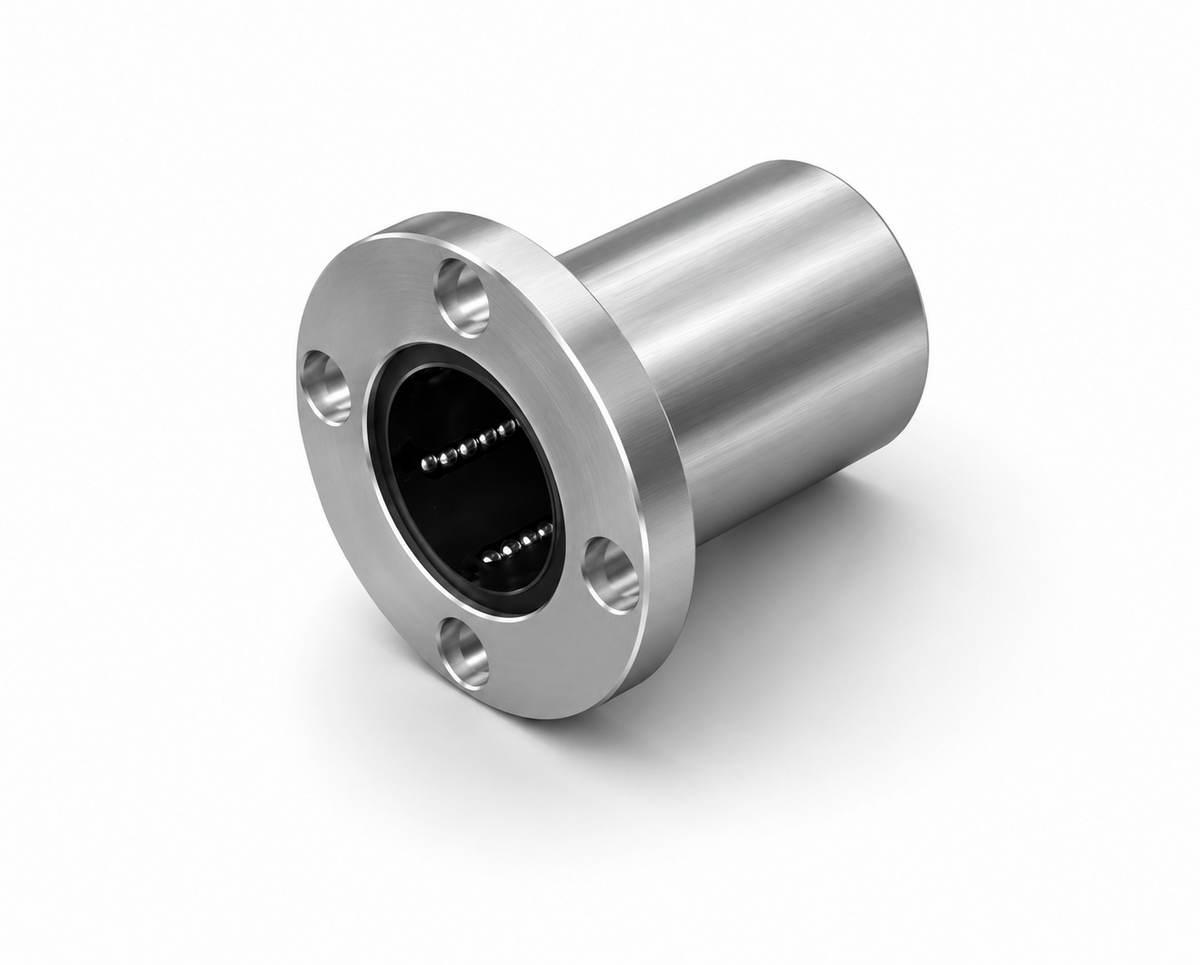

LMF type Linear Bush — flange integrated type.

Key features

  • Nut and flange in one piece; mounts directly to housing with bolts
  • Shaft diameters: 6~60mm
  • Short type (LMF8S) available for φ8mm
  • Synthetic resin retainer (max 80°C)
  • Oil hole option (suffix OH)

Specifications

Type Flange integrated (direct bolt mount to housing)
Max Temp. 80°C (standard retainer)
Oil Hole Add suffix OH on order
LMF6 THK Linear Bush flange type, shaft φ6mm, OD φ12mm, L=19mm, flange φ28mm | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Flange OD: D1=28mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF8S THK Linear Bush flange type, shaft φ8mm, OD φ15mm, L=17mm, flange φ32mm | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=17mm | Flange OD: D1=32mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF8 THK Linear Bush flange type, shaft φ8mm, OD φ15mm, L=24mm, flange φ32mm | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Flange OD: D1=32mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF10 THK Linear Bush flange type, shaft φ10mm, OD φ19mm, L=29mm, flange φ39mm | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Flange OD: D1=39mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF12 THK Linear Bush flange type, shaft φ12mm, OD φ21mm, L=30mm, flange φ42mm | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Flange OD: D1=42mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF13 THK Linear Bush flange type, shaft φ13mm, OD φ23mm, L=32mm, flange φ43mm | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Flange OD: D1=43mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF16 THK Linear Bush flange type, shaft φ16mm, OD φ28mm, L=37mm, flange φ48mm | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Flange OD: D1=48mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF20 THK Linear Bush flange type, shaft φ20mm, OD φ32mm, L=42mm, flange φ54mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Flange OD: D1=54mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF25 THK Linear Bush flange type, shaft φ25mm, OD φ40mm, L=59mm, flange φ62mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Flange OD: D1=62mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF30 THK Linear Bush flange type, shaft φ30mm, OD φ45mm, L=64mm, flange φ74mm | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Flange OD: D1=74mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF35 THK Linear Bush flange type, shaft φ35mm, OD φ52mm, L=70mm, flange φ82mm | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=70mm | Flange OD: D1=82mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF40 THK Linear Bush flange type, shaft φ40mm, OD φ60mm, L=80mm, flange φ96mm | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=80mm | Flange OD: D1=96mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF50 THK Linear Bush flange type, shaft φ50mm, OD φ80mm, L=100mm, flange φ116mm | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=100mm | Flange OD: D1=116mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF60 THK Linear Bush flange type, shaft φ60mm, OD φ90mm, L=110mm, flange φ134mm | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=110mm | Flange OD: D1=134mm | Type: Flange integrated (direct bolt mount to housing) | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
