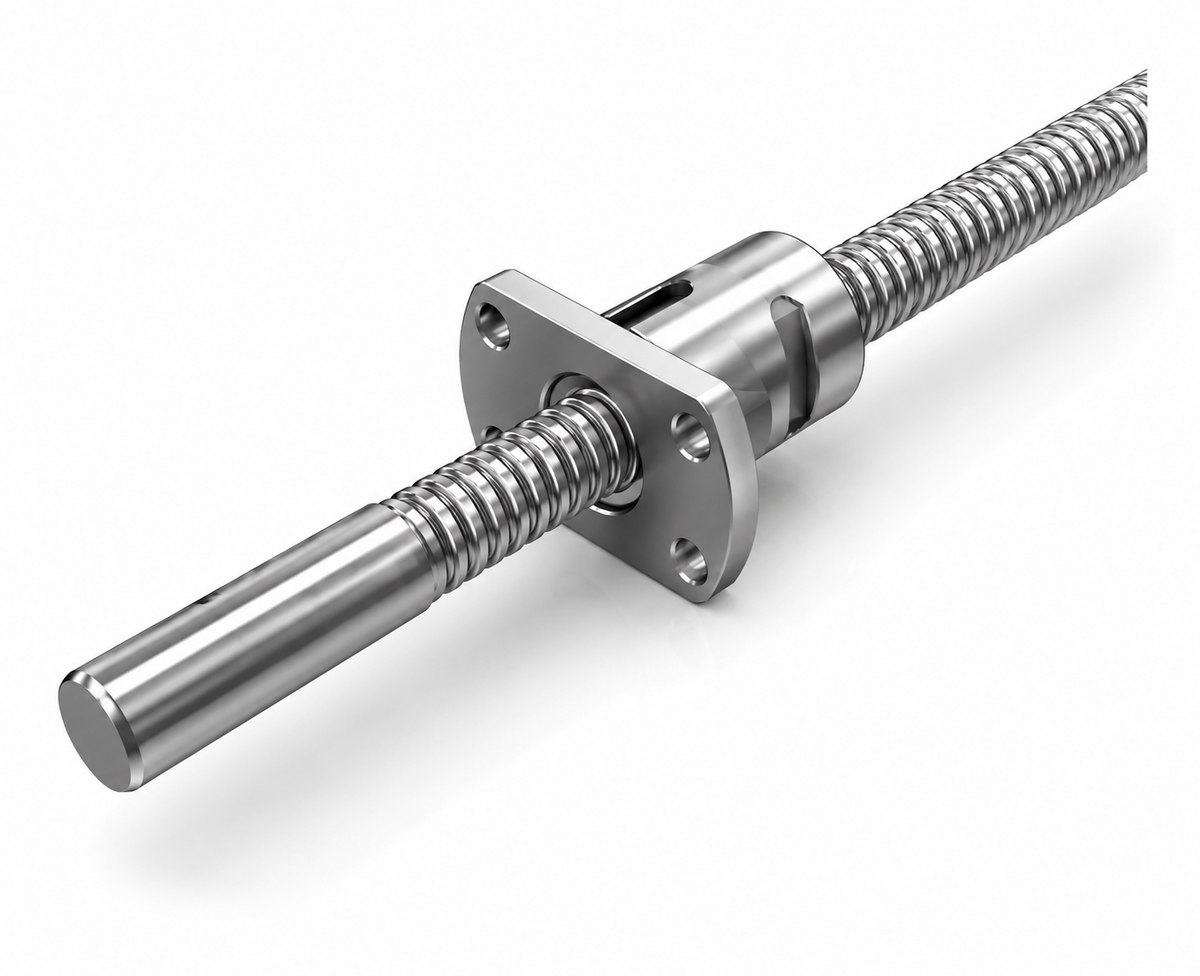

THK MDK1002-3 Ball Screw Nut Unit (Shaft φ10, Lead 2mm)

THK MDK1002-3 Ball Screw Nut Unit (Shaft φ10, Lead 2mm)

THK MDK Series Precision Ground Ball Screw Nut Unit.

Key features

  • Standardized unfinished shaft end for easy additional machining (turning/milling)
  • Shaft diameter φ10mm, lead 2mm. 3×1 ball circuit
  • Grease pre-packed nut
  • Induction-hardened thread surface only — shaft ends remain machinable
  • Ca=1.5kN, C0a=2.9kN

Specifications

Shaft Diameter φ10mm
Lead 2mm
Nut Length L1 22mm
Ball Circuit 3×1
Ca 1.5kN
C0a 2.9kN
Nut OD D 17mm
Flange D1 34mm
Type Unfinished Shaft End, Grease Pre-packed
MDK1002-3+160 THK MDK1002-3, φ10 Lead2, L=160mm | Shaft Diameter: φ10mm | Lead: 2mm | Shaft Total Length L: 160mm | Nut Length L1: 22mm | Ball Circuit: 3×1 | Ca: 1.5kN | C0a: 2.9kN | Nut OD D: 17mm | Flange D1: 34mm | Type: Unfinished Shaft End, Grease Pre-packed
MDK1002-3+210 THK MDK1002-3, φ10 Lead2, L=210mm | Shaft Diameter: φ10mm | Lead: 2mm | Shaft Total Length L: 210mm | Nut Length L1: 22mm | Ball Circuit: 3×1 | Ca: 1.5kN | C0a: 2.9kN | Nut OD D: 17mm | Flange D1: 34mm | Type: Unfinished Shaft End, Grease Pre-packed
MDK1002-3+260 THK MDK1002-3, φ10 Lead2, L=260mm | Shaft Diameter: φ10mm | Lead: 2mm | Shaft Total Length L: 260mm | Nut Length L1: 22mm | Ball Circuit: 3×1 | Ca: 1.5kN | C0a: 2.9kN | Nut OD D: 17mm | Flange D1: 34mm | Type: Unfinished Shaft End, Grease Pre-packed
MDK1002-3+310 THK MDK1002-3, φ10 Lead2, L=310mm | Shaft Diameter: φ10mm | Lead: 2mm | Shaft Total Length L: 310mm | Nut Length L1: 22mm | Ball Circuit: 3×1 | Ca: 1.5kN | C0a: 2.9kN | Nut OD D: 17mm | Flange D1: 34mm | Type: Unfinished Shaft End, Grease Pre-packed
Ball ScrewsTHK
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK MDK1002-3 Ball Screw Nut Unit (Shaft φ10, Lead 2mm)

Brand THK·Ball Screws

Available part numbers (4)

MDK1002-3+160, MDK1002-3+210, MDK1002-3+260, MDK1002-3+310

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDK1002-3+160THK MDK1002-3, φ10 Lead2, L=160mm | Shaft Diameter: φ10mm | Lead: 2mm | Shaft Total Length L: 160mm | Nut Length L1: 22mm | Ball Circuit: 3×1 | Ca: 1.5kN | C0a: 2.9kN | Nut OD D: 17mm | Flange D1: 34mm | Type: Unfinished Shaft End, Grease Pre-packed
MDK1002-3+210THK MDK1002-3, φ10 Lead2, L=210mm | Shaft Diameter: φ10mm | Lead: 2mm | Shaft Total Length L: 210mm | Nut Length L1: 22mm | Ball Circuit: 3×1 | Ca: 1.5kN | C0a: 2.9kN | Nut OD D: 17mm | Flange D1: 34mm | Type: Unfinished Shaft End, Grease Pre-packed
MDK1002-3+260THK MDK1002-3, φ10 Lead2, L=260mm | Shaft Diameter: φ10mm | Lead: 2mm | Shaft Total Length L: 260mm | Nut Length L1: 22mm | Ball Circuit: 3×1 | Ca: 1.5kN | C0a: 2.9kN | Nut OD D: 17mm | Flange D1: 34mm | Type: Unfinished Shaft End, Grease Pre-packed
MDK1002-3+310THK MDK1002-3, φ10 Lead2, L=310mm | Shaft Diameter: φ10mm | Lead: 2mm | Shaft Total Length L: 310mm | Nut Length L1: 22mm | Ball Circuit: 3×1 | Ca: 1.5kN | C0a: 2.9kN | Nut OD D: 17mm | Flange D1: 34mm | Type: Unfinished Shaft End, Grease Pre-packed
