• THK MDK1402-3 Ball Screw Nut Unit (Shaft φ14, Lead 2mm)
1 1

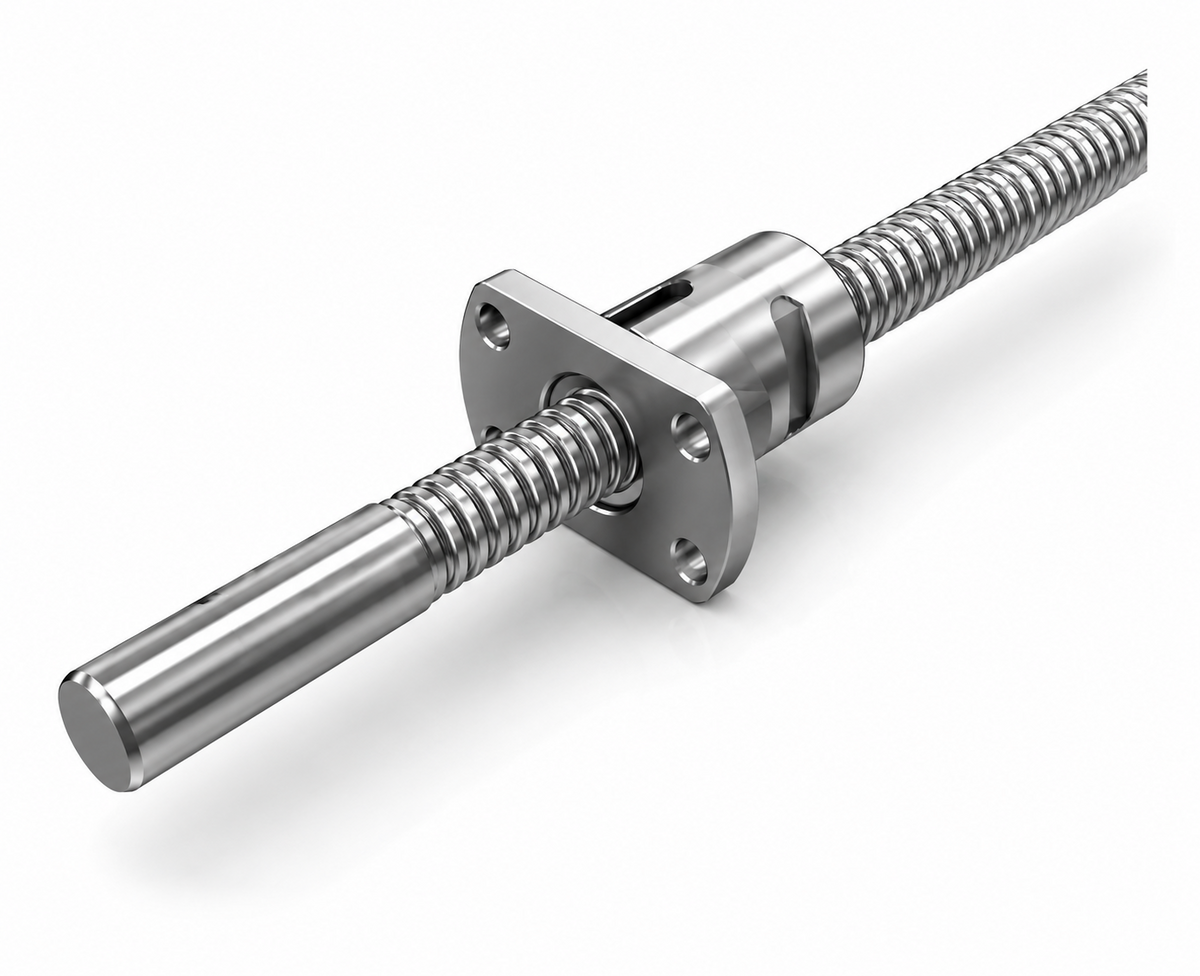

THK MDK1402-3 Ball Screw Nut Unit (Shaft φ14, Lead 2mm)

THK MDK1402-3 Ball Screw Nut Unit (Shaft φ14, Lead 2mm)

THK MDK Series Precision Ground Ball Screw Nut Unit.

Key features

  • Standardized unfinished shaft end for easy additional machining (turning/milling)
  • Shaft diameter φ14mm, lead 2mm. 3×1 ball circuit
  • Grease pre-packed nut
  • Induction-hardened thread surface only — shaft ends remain machinable
  • Ca=1.8kN, C0a=4.3kN

Specifications

Shaft Diameter φ14mm
Lead 2mm
Ball Circuit 3×1
Ca 1.8kN
C0a 4.3kN
Nut OD D 21mm
Flange D1 40mm
Shaft Length to be confirmed
MDK1402-3+TBD THK MDK1402-3, φ14 Lead2 — shaft length TBD | Shaft Diameter: φ14mm | Lead: 2mm | Ball Circuit: 3×1 | Ca: 1.8kN | C0a: 4.3kN | Nut OD D: 21mm | Flange D1: 40mm | Shaft Length: to be confirmed
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK MDK1402-3 Ball Screw Nut Unit (Shaft φ14, Lead 2mm)

Brand THK·Ball Screws

Available part numbers (1)

MDK1402-3+TBD

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDK1402-3+TBDTHK MDK1402-3, φ14 Lead2 — shaft length TBD | Shaft Diameter: φ14mm | Lead: 2mm | Ball Circuit: 3×1 | Ca: 1.8kN | C0a: 4.3kN | Nut OD D: 21mm | Flange D1: 40mm | Shaft Length: to be confirmed
