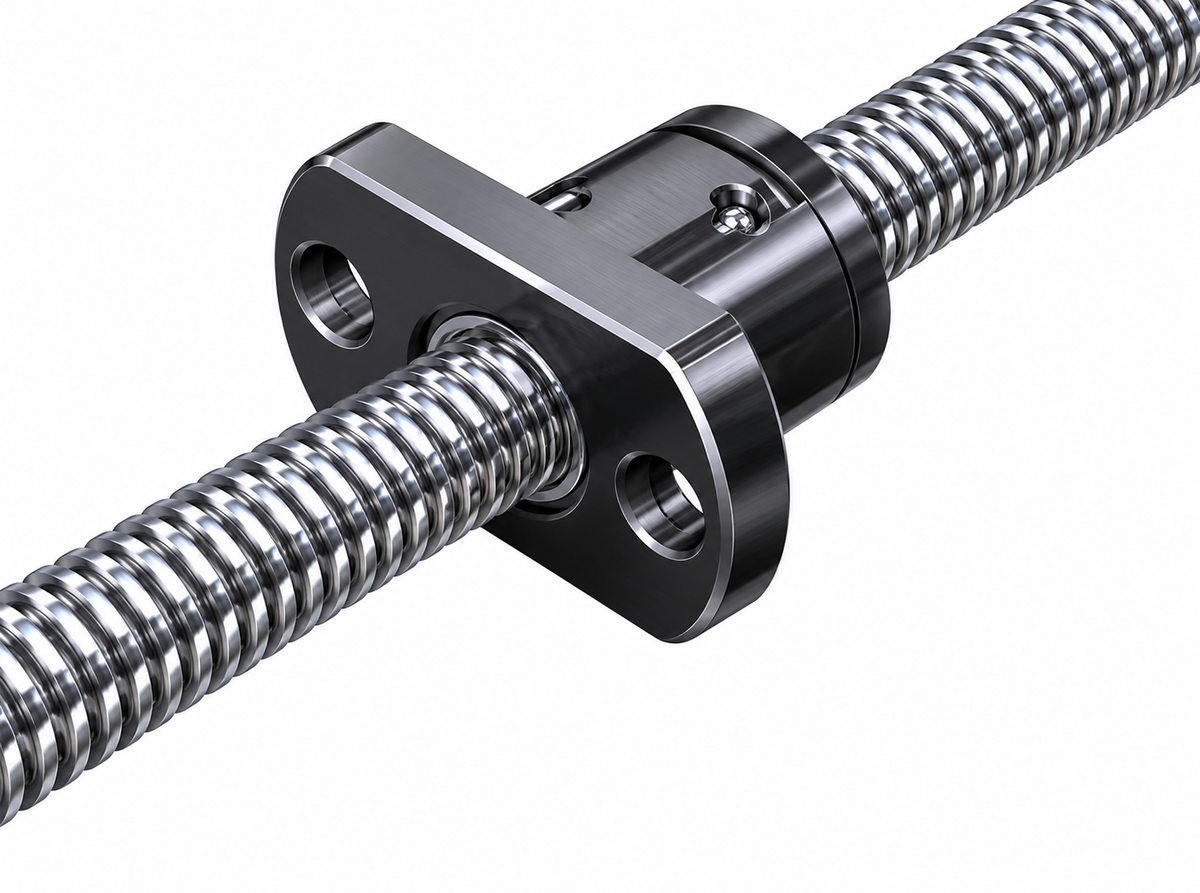

THK MTF Rolled Ball Screw (Unfinished Shaft End, Non-preloaded, φ6~12)

THK MTF Rolled Ball Screw (Unfinished Shaft End, Non-preloaded, φ6~12)

THK MTF Series Rolled Ball Screw with unfinished shaft end (Non-preloaded type).

Key features

  • Sold as set (nut + shaft) only
  • Standard AP-C surface treatment on nut
  • DN value 50,000
  • Shaft diameter range φ6~12mm, lead 1~2mm
  • Grade C7

Specifications

Ball Circuit 1×3.7
Grade C7
DN Value 50,000
Type Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF0601-3.7+150LC7T THK MTF0601-3.7, φ6 Lead1, L=150mm, C7 | Shaft Diameter: φ6mm | Lead: 1mm | Ca: 0.7kN | C0a: 1.2kN | K: 70N/μm | Ball Circuit: 1×3.7 | Nut OD D: 13mm | Flange D1: 30mm | Nut Length L1: 21mm | Shaft Length: 150mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF0601-3.7+250LC7T THK MTF0601-3.7, φ6 Lead1, L=250mm, C7 | Shaft Diameter: φ6mm | Lead: 1mm | Ca: 0.7kN | C0a: 1.2kN | K: 70N/μm | Ball Circuit: 1×3.7 | Nut OD D: 13mm | Flange D1: 30mm | Nut Length L1: 21mm | Shaft Length: 250mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF0802-3.7+150LC7T THK MTF0802-3.7, φ8 Lead2, L=150mm, C7 | Shaft Diameter: φ8mm | Lead: 2mm | Ca: 2.1kN | C0a: 3.8kN | K: 90N/μm | Ball Circuit: 1×3.7 | Nut OD D: 20mm | Flange D1: 40mm | Nut Length L1: 28mm | Shaft Length: 150mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF0802-3.7+250LC7T THK MTF0802-3.7, φ8 Lead2, L=250mm, C7 | Shaft Diameter: φ8mm | Lead: 2mm | Ca: 2.1kN | C0a: 3.8kN | K: 90N/μm | Ball Circuit: 1×3.7 | Nut OD D: 20mm | Flange D1: 40mm | Nut Length L1: 28mm | Shaft Length: 250mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF1002-3.7+200LC7T THK MTF1002-3.7, φ10 Lead2, L=200mm, C7 | Shaft Diameter: φ10mm | Lead: 2mm | Ca: 2.3kN | C0a: 4.8kN | K: 110N/μm | Ball Circuit: 1×3.7 | Nut OD D: 23mm | Flange D1: 43mm | Nut Length L1: 28mm | Shaft Length: 200mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF1002-3.7+300LC7T THK MTF1002-3.7, φ10 Lead2, L=300mm, C7 | Shaft Diameter: φ10mm | Lead: 2mm | Ca: 2.3kN | C0a: 4.8kN | K: 110N/μm | Ball Circuit: 1×3.7 | Nut OD D: 23mm | Flange D1: 43mm | Nut Length L1: 28mm | Shaft Length: 300mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF1202-3.7+200LC7T THK MTF1202-3.7, φ12 Lead2, L=200mm, C7 | Shaft Diameter: φ12mm | Lead: 2mm | Ca: 2.5kN | C0a: 5.8kN | K: 130N/μm | Ball Circuit: 1×3.7 | Nut OD D: 25mm | Flange D1: 47mm | Nut Length L1: 30mm | Shaft Length: 200mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF1202-3.7+300LC7T THK MTF1202-3.7, φ12 Lead2, L=300mm, C7 | Shaft Diameter: φ12mm | Lead: 2mm | Ca: 2.5kN | C0a: 5.8kN | K: 130N/μm | Ball Circuit: 1×3.7 | Nut OD D: 25mm | Flange D1: 47mm | Nut Length L1: 30mm | Shaft Length: 300mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
Ball ScrewsTHK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK MTF Rolled Ball Screw (Unfinished Shaft End, Non-preloaded, φ6~12)

Brand THK·Ball Screws

Available part numbers (8)

MTF0601-3.7+150LC7T, MTF0601-3.7+250LC7T, MTF0802-3.7+150LC7T, MTF0802-3.7+250LC7T, MTF1002-3.7+200LC7T, MTF1002-3.7+300LC7T, MTF1202-3.7+200LC7T, MTF1202-3.7+300LC7T

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MTF0601-3.7+150LC7TTHK MTF0601-3.7, φ6 Lead1, L=150mm, C7 | Shaft Diameter: φ6mm | Lead: 1mm | Ca: 0.7kN | C0a: 1.2kN | K: 70N/μm | Ball Circuit: 1×3.7 | Nut OD D: 13mm | Flange D1: 30mm | Nut Length L1: 21mm | Shaft Length: 150mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF0601-3.7+250LC7TTHK MTF0601-3.7, φ6 Lead1, L=250mm, C7 | Shaft Diameter: φ6mm | Lead: 1mm | Ca: 0.7kN | C0a: 1.2kN | K: 70N/μm | Ball Circuit: 1×3.7 | Nut OD D: 13mm | Flange D1: 30mm | Nut Length L1: 21mm | Shaft Length: 250mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF0802-3.7+150LC7TTHK MTF0802-3.7, φ8 Lead2, L=150mm, C7 | Shaft Diameter: φ8mm | Lead: 2mm | Ca: 2.1kN | C0a: 3.8kN | K: 90N/μm | Ball Circuit: 1×3.7 | Nut OD D: 20mm | Flange D1: 40mm | Nut Length L1: 28mm | Shaft Length: 150mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF0802-3.7+250LC7TTHK MTF0802-3.7, φ8 Lead2, L=250mm, C7 | Shaft Diameter: φ8mm | Lead: 2mm | Ca: 2.1kN | C0a: 3.8kN | K: 90N/μm | Ball Circuit: 1×3.7 | Nut OD D: 20mm | Flange D1: 40mm | Nut Length L1: 28mm | Shaft Length: 250mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF1002-3.7+200LC7TTHK MTF1002-3.7, φ10 Lead2, L=200mm, C7 | Shaft Diameter: φ10mm | Lead: 2mm | Ca: 2.3kN | C0a: 4.8kN | K: 110N/μm | Ball Circuit: 1×3.7 | Nut OD D: 23mm | Flange D1: 43mm | Nut Length L1: 28mm | Shaft Length: 200mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF1002-3.7+300LC7TTHK MTF1002-3.7, φ10 Lead2, L=300mm, C7 | Shaft Diameter: φ10mm | Lead: 2mm | Ca: 2.3kN | C0a: 4.8kN | K: 110N/μm | Ball Circuit: 1×3.7 | Nut OD D: 23mm | Flange D1: 43mm | Nut Length L1: 28mm | Shaft Length: 300mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF1202-3.7+200LC7TTHK MTF1202-3.7, φ12 Lead2, L=200mm, C7 | Shaft Diameter: φ12mm | Lead: 2mm | Ca: 2.5kN | C0a: 5.8kN | K: 130N/μm | Ball Circuit: 1×3.7 | Nut OD D: 25mm | Flange D1: 47mm | Nut Length L1: 30mm | Shaft Length: 200mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
MTF1202-3.7+300LC7TTHK MTF1202-3.7, φ12 Lead2, L=300mm, C7 | Shaft Diameter: φ12mm | Lead: 2mm | Ca: 2.5kN | C0a: 5.8kN | K: 130N/μm | Ball Circuit: 1×3.7 | Nut OD D: 25mm | Flange D1: 47mm | Nut Length L1: 30mm | Shaft Length: 300mm | Grade: C7 | DN Value: 50,000 | Type: Rolled, Non-preloaded, Unfinished Shaft End (MTF)
