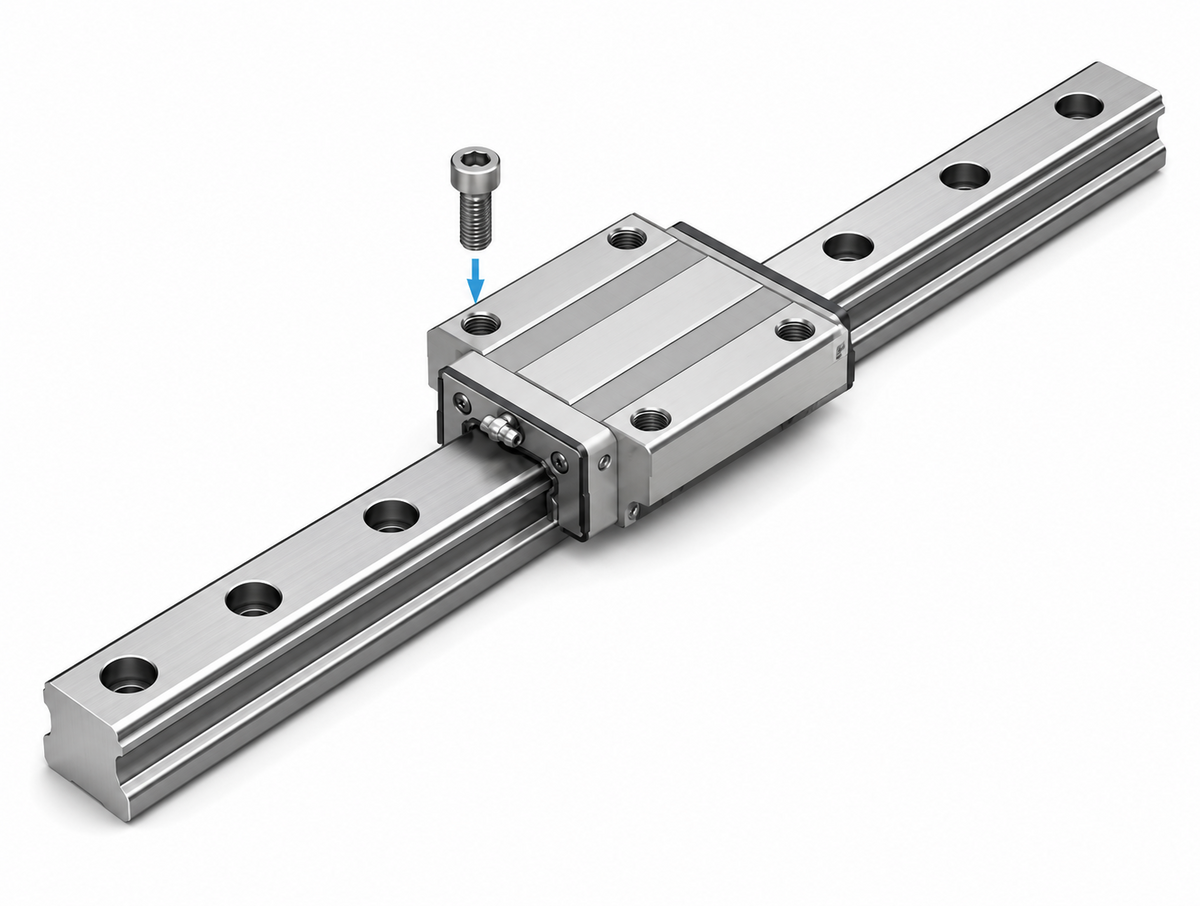

THK NR-A/LA LM Guide Block (Full Ball, Super Heavy Load, Flange Type, Large)

THK NR-A/LA LM Guide Block (Full Ball, Super Heavy Load, Flange Type, Large)

Super heavy load full ball type LM Guide for machine tools.

Key features

  • Large size flange type with tapped holes
  • Deep groove raceway machining for enhanced rigidity, vibration/shock resistance and damping

Specifications

Type LM Guide Block
Series NR
Max Rail Length 3000 mm
Structure Full Ball Deep Groove
Mount Flange (tapped)
Application Super Heavy Load Machine Tool
Brand THK
NR-75A NR 75A LM Block H83×W195×L218mm | Type: LM Guide Block | Series: NR | Model: NR 75A | Height M: 83 mm | Width W: 195 mm | Length L: 218 mm | Max Rail Length: 3000 mm | Dynamic Load C: 271 kN | Static Load C0: 610 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-75LA NR 75LA LM Block H83×W195×L274mm | Type: LM Guide Block | Series: NR | Model: NR 75LA | Height M: 83 mm | Width W: 195 mm | Length L: 274 mm | Max Rail Length: 3000 mm | Dynamic Load C: 355 kN | Static Load C0: 800 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-85A NR 85A LM Block H90×W215×L246.7mm | Type: LM Guide Block | Series: NR | Model: NR 85A | Height M: 90 mm | Width W: 215 mm | Length L: 246.7 mm | Max Rail Length: 3000 mm | Dynamic Load C: 336 kN | Static Load C0: 751 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-85LA NR 85LA LM Block H90×W215×L302.8mm | Type: LM Guide Block | Series: NR | Model: NR 85LA | Height M: 90 mm | Width W: 215 mm | Length L: 302.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 435 kN | Static Load C0: 972 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-100A NR 100A LM Block H105×W260×L286.2mm | Type: LM Guide Block | Series: NR | Model: NR 100A | Height M: 105 mm | Width W: 260 mm | Length L: 286.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 479 kN | Static Load C0: 1040 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-100LA NR 100LA LM Block H105×W260×L326.2mm | Type: LM Guide Block | Series: NR | Model: NR 100LA | Height M: 105 mm | Width W: 260 mm | Length L: 326.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 599 kN | Static Load C0: 1300 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
LM GuidesTHK
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK NR-A/LA LM Guide Block (Full Ball, Super Heavy Load, Flange Type, Large)

Brand THK·LM Guides

Available part numbers (6)

NR-75A, NR-75LA, NR-85A, NR-85LA, NR-100A, NR-100LA

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NR-75ANR 75A LM Block H83×W195×L218mm | Type: LM Guide Block | Series: NR | Model: NR 75A | Height M: 83 mm | Width W: 195 mm | Length L: 218 mm | Max Rail Length: 3000 mm | Dynamic Load C: 271 kN | Static Load C0: 610 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-75LANR 75LA LM Block H83×W195×L274mm | Type: LM Guide Block | Series: NR | Model: NR 75LA | Height M: 83 mm | Width W: 195 mm | Length L: 274 mm | Max Rail Length: 3000 mm | Dynamic Load C: 355 kN | Static Load C0: 800 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-85ANR 85A LM Block H90×W215×L246.7mm | Type: LM Guide Block | Series: NR | Model: NR 85A | Height M: 90 mm | Width W: 215 mm | Length L: 246.7 mm | Max Rail Length: 3000 mm | Dynamic Load C: 336 kN | Static Load C0: 751 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-85LANR 85LA LM Block H90×W215×L302.8mm | Type: LM Guide Block | Series: NR | Model: NR 85LA | Height M: 90 mm | Width W: 215 mm | Length L: 302.8 mm | Max Rail Length: 3000 mm | Dynamic Load C: 435 kN | Static Load C0: 972 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-100ANR 100A LM Block H105×W260×L286.2mm | Type: LM Guide Block | Series: NR | Model: NR 100A | Height M: 105 mm | Width W: 260 mm | Length L: 286.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 479 kN | Static Load C0: 1040 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
NR-100LANR 100LA LM Block H105×W260×L326.2mm | Type: LM Guide Block | Series: NR | Model: NR 100LA | Height M: 105 mm | Width W: 260 mm | Length L: 326.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 599 kN | Static Load C0: 1300 kN | Structure: Full Ball Deep Groove | Mount: Flange (tapped) | Application: Super Heavy Load Machine Tool | Brand: THK
