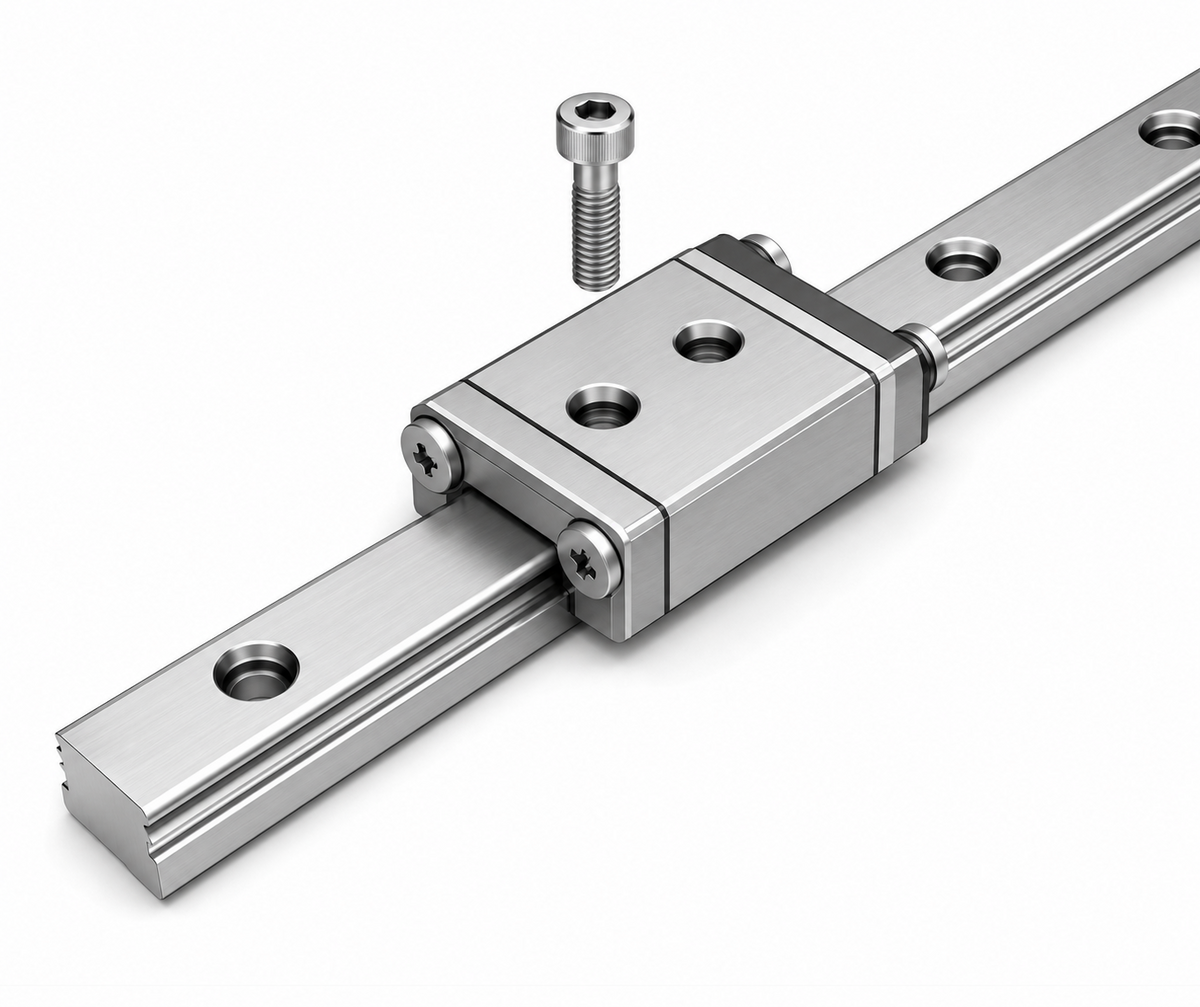

THK RSR Miniature LM Guide Block (Ball Recirculation, Compact, Multi-direction Load)

THK RSR Miniature LM Guide Block (Ball Recirculation, Compact, Multi-direction Load)

Miniature LM Guide with ball recirculation in compact structure.

Key features

  • Accepts loads in all directions — suitable as single-axis guide for small moment loads
  • Note: Balls drop out if block is removed from rail

Specifications

Type Miniature LM Guide Block
Series RSR
Structure Ball Recirculation
Caution Balls drop if block removed from rail
Brand THK
RSR2N RSR2N LM Block H3.2×W6×L12.4mm | Type: Miniature LM Guide Block | Series: RSR | Model: RSR2N | Height M: 3.2 mm | Width W: 6 mm | Length L: 12.4 mm | Max Rail Length: 200 mm | Dynamic Load C: 0.214 kN | Static Load C0: 0.384 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK
RSR2WN RSR2WN LM Block H4×W10×L16.7mm | Type: Miniature LM Guide Block | Series: RSR | Model: RSR2WN | Height M: 4 mm | Width W: 10 mm | Length L: 16.7 mm | Max Rail Length: 200 mm | Dynamic Load C: 0.395 kN | Static Load C0: 0.682 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK
RSR3M RSR3M LM Block H4×W8×L12mm | Type: Miniature LM Guide Block | Series: RSR | Model: RSR3M | Height M: 4 mm | Width W: 8 mm | Length L: 12 mm | Max Rail Length: 220 mm | Dynamic Load C: 0.18 kN | Static Load C0: 0.27 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK
RSR3N RSR3N LM Block H4×W8×L16mm | Type: Miniature LM Guide Block | Series: RSR | Model: RSR3N | Height M: 4 mm | Width W: 8 mm | Length L: 16 mm | Max Rail Length: 220 mm | Dynamic Load C: 0.3 kN | Static Load C0: 0.44 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK
RSR3WM RSR3WM LM Block H4.5×W12×L14.9mm | Type: Miniature LM Guide Block | Series: RSR | Model: RSR3WM | Height M: 4.5 mm | Width W: 12 mm | Length L: 14.9 mm | Max Rail Length: 480 mm | Dynamic Load C: 0.25 kN | Static Load C0: 0.47 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK
RSR3WN RSR3WN LM Block H4.5×W12×L19.9mm | Type: Miniature LM Guide Block | Series: RSR | Model: RSR3WN | Height M: 4.5 mm | Width W: 12 mm | Length L: 19.9 mm | Max Rail Length: 480 mm | Dynamic Load C: 0.39 kN | Static Load C0: 0.75 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK
RSR14WVM RSR14WVM LM Block H15×W50×L50mm | Type: Miniature LM Guide Block | Series: RSR | Model: RSR14WVM | Height M: 15 mm | Width W: 50 mm | Length L: 50 mm | Max Rail Length: 1800 mm | Dynamic Load C: 6.01 kN | Static Load C0: 9.08 kN | Structure: Ball Recirculation | Caution: Balls drop if block removed from rail | Brand: THK
