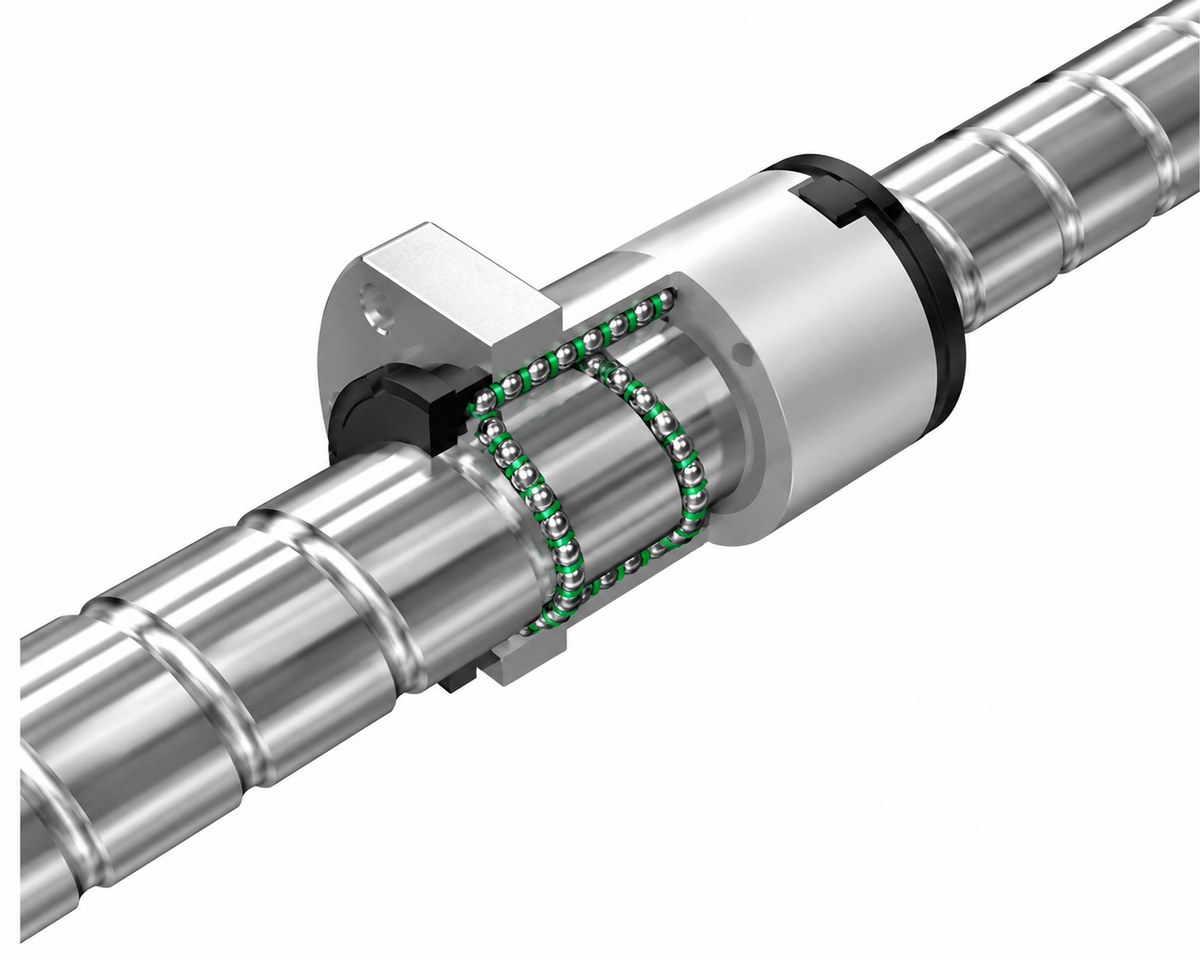

THK SDA-V/VZ Ball Screw (Shaft φ28~32, Preloaded/Non-preloaded)

THK SDA-V/VZ Series High-Speed Precision Ground Ball Screw with Ball Retainer.

Key features

Preloaded and non-preloaded variants available
Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
Shaft diameter range φ28~32mm
V/VZ types

Specifications

Type	High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)

SDA2806V-5		THK SDA2806V-5, φ28 Lead6, Ca=29.6kN \| Shaft Diameter: φ28mm \| Lead: 6mm \| Ca(V)=29.6kN / C0a(V)=54.5kN \| Ca(VZ)=28.2kN / C0a(VZ)=57.7kN \| Nut OD D: 46mm \| Flange D1: 80mm \| Nut Length L1: 42mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
SDA3110V-5		THK SDA3110V-5, φ31 Lead10, Ca=57.1kN \| Shaft Diameter: φ31mm \| Lead: 10mm \| Ca(V)=57.1kN / C0a(V)=94.7kN \| Ca(VZ)=54.4kN / C0a(VZ)=99.7kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 65mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
SDA3112V-5		THK SDA3112V-5, φ31 Lead12, Ca=57.0kN \| Shaft Diameter: φ31mm \| Lead: 12mm \| Ca(V)=57.0kN / C0a(V)=94.7kN \| Ca(VZ)=54.3kN / C0a(VZ)=99.9kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 74mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
SDA3116V-5		THK SDA3116V-5, φ31 Lead16, Ca=56.8kN \| Shaft Diameter: φ31mm \| Lead: 16mm \| Ca(V)=56.8kN / C0a(V)=96.0kN \| Ca(VZ)=54.1kN / C0a(VZ)=100.5kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 93mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
SDA3120V-5		THK SDA3120V-5, φ31 Lead20, Ca=56.6kN \| Shaft Diameter: φ31mm \| Lead: 20mm \| Ca(V)=56.6kN / C0a(V)=90.3kN \| Ca(VZ)=53.9kN / C0a(VZ)=95.1kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 112mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
SDA3132V-2		THK SDA3132V-2, φ31 Lead32, Ca=23.2kN \| Shaft Diameter: φ31mm \| Lead: 32mm \| Ca(V)=23.2kN / C0a(V)=33.8kN \| Ca(VZ)=22.1kN / C0a(VZ)=35.4kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 73mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
SDA3205V-4		THK SDA3205V-4, φ32 Lead5, Ca=18.8kN \| Shaft Diameter: φ32mm \| Lead: 5mm \| Ca(V)=18.8kN / C0a(V)=38.5kN \| Ca(VZ)=17.9kN / C0a(VZ)=41.7kN \| Nut OD D: 50mm \| Flange D1: 80mm \| Nut Length L1: 32mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
SDA3210V-5		THK SDA3210V-5, φ32 Lead10, Ca=31.3kN \| Shaft Diameter: φ32mm \| Lead: 10mm \| Ca(V)=31.3kN / C0a(V)=62.9kN \| Ca(VZ)=29.8kN / C0a(VZ)=66.3kN \| Nut OD D: 50mm \| Flange D1: 80mm \| Nut Length L1: 61mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)

Ball ScrewsTHK

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SDA-V/VZ Ball Screw (Shaft φ28~32, Preloaded/Non-preloaded)

Brand THK·Ball Screws

Available part numbers (8)

SDA2806V-5, SDA3110V-5, SDA3112V-5, SDA3116V-5, SDA3120V-5, SDA3132V-2, SDA3205V-4, SDA3210V-5

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SDA2806V-5	THK SDA2806V-5, φ28 Lead6, Ca=29.6kN \| Shaft Diameter: φ28mm \| Lead: 6mm \| Ca(V)=29.6kN / C0a(V)=54.5kN \| Ca(VZ)=28.2kN / C0a(VZ)=57.7kN \| Nut OD D: 46mm \| Flange D1: 80mm \| Nut Length L1: 42mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
	SDA3110V-5	THK SDA3110V-5, φ31 Lead10, Ca=57.1kN \| Shaft Diameter: φ31mm \| Lead: 10mm \| Ca(V)=57.1kN / C0a(V)=94.7kN \| Ca(VZ)=54.4kN / C0a(VZ)=99.7kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 65mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
	SDA3112V-5	THK SDA3112V-5, φ31 Lead12, Ca=57.0kN \| Shaft Diameter: φ31mm \| Lead: 12mm \| Ca(V)=57.0kN / C0a(V)=94.7kN \| Ca(VZ)=54.3kN / C0a(VZ)=99.9kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 74mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
	SDA3116V-5	THK SDA3116V-5, φ31 Lead16, Ca=56.8kN \| Shaft Diameter: φ31mm \| Lead: 16mm \| Ca(V)=56.8kN / C0a(V)=96.0kN \| Ca(VZ)=54.1kN / C0a(VZ)=100.5kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 93mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
	SDA3120V-5	THK SDA3120V-5, φ31 Lead20, Ca=56.6kN \| Shaft Diameter: φ31mm \| Lead: 20mm \| Ca(V)=56.6kN / C0a(V)=90.3kN \| Ca(VZ)=53.9kN / C0a(VZ)=95.1kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 112mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
	SDA3132V-2	THK SDA3132V-2, φ31 Lead32, Ca=23.2kN \| Shaft Diameter: φ31mm \| Lead: 32mm \| Ca(V)=23.2kN / C0a(V)=33.8kN \| Ca(VZ)=22.1kN / C0a(VZ)=35.4kN \| Nut OD D: 56mm \| Flange D1: 86mm \| Nut Length L1: 73mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
	SDA3205V-4	THK SDA3205V-4, φ32 Lead5, Ca=18.8kN \| Shaft Diameter: φ32mm \| Lead: 5mm \| Ca(V)=18.8kN / C0a(V)=38.5kN \| Ca(VZ)=17.9kN / C0a(VZ)=41.7kN \| Nut OD D: 50mm \| Flange D1: 80mm \| Nut Length L1: 32mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)
	SDA3210V-5	THK SDA3210V-5, φ32 Lead10, Ca=31.3kN \| Shaft Diameter: φ32mm \| Lead: 10mm \| Ca(V)=31.3kN / C0a(V)=62.9kN \| Ca(VZ)=29.8kN / C0a(VZ)=66.3kN \| Nut OD D: 50mm \| Flange D1: 80mm \| Nut Length L1: 61mm \| Type: High-Speed, Ball Retainer, Preloaded/Non-preloaded (SDA-V/VZ)

Need a different model, or a part not listed here? Send us your parts list →
