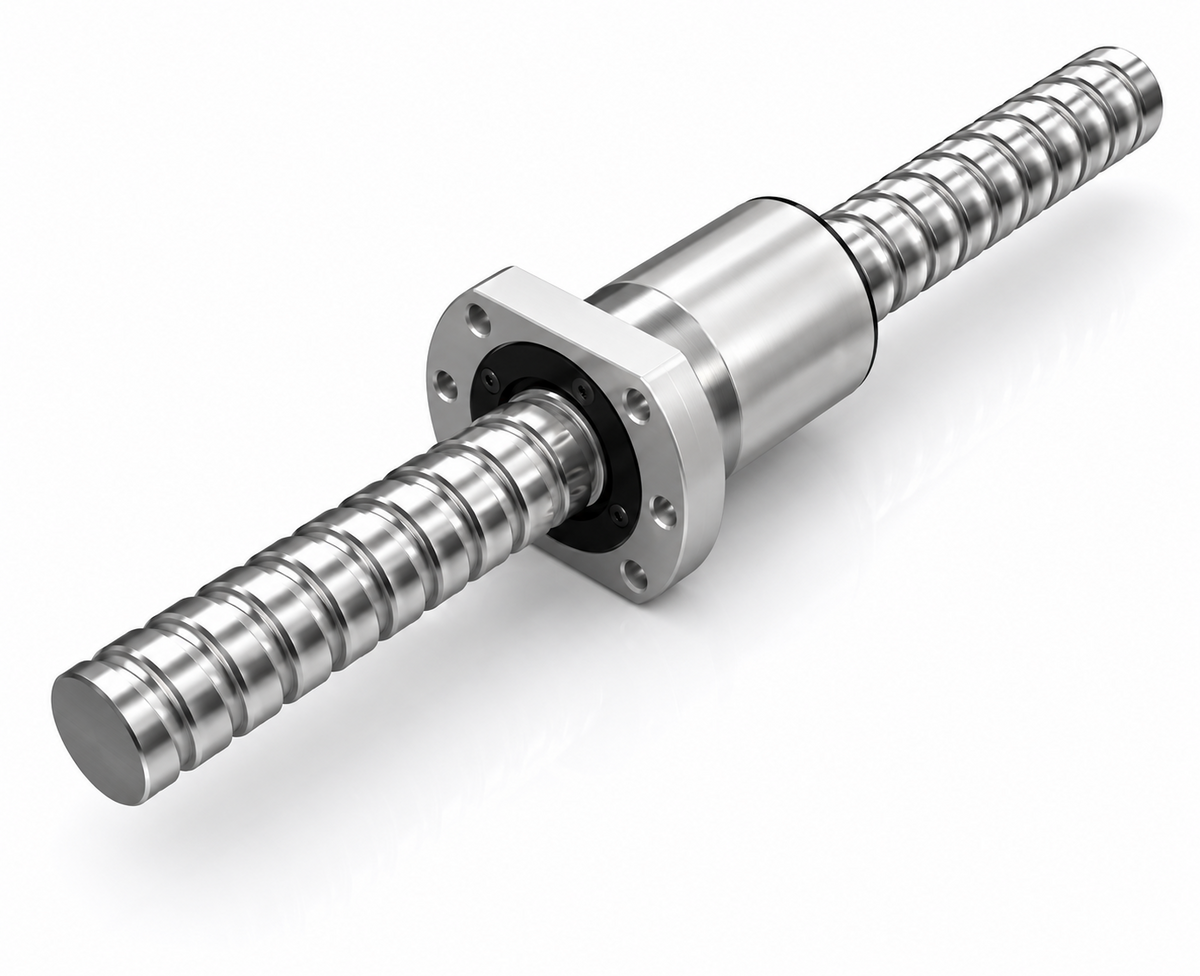

THK SDA2010VZ-3 Ball Screw Nut Unit (Shaft φ20, Lead 10mm)

THK SDA2010VZ-3 Ball Screw Nut Unit (Shaft φ20, Lead 10mm)

THK SDA-VZ Series Precision Ground Ball Screw Nut Unit (preloaded/non-preloaded type).

Key features

  • Shaft diameter φ20mm, lead 10mm. 1×3 ball circuit
  • Unfinished shaft end (SDA-VZ type)
  • DN value 100,000
  • Basic dynamic load rating Ca=11.0kN, static C0a=19.0kN, rigidity K=213N/μm
  • Max. permissible speed 4819 min⁻¹

Specifications

Shaft Diameter φ20mm
Lead 10mm
Nut Length L1 40mm
Ball Circuit 1×3
Ca 11.0kN
C0a 19.0kN
K 213N/μm
Nut OD D 36mm
Flange D1 58mm
Max Speed 4819 min⁻¹
Type Preloaded/Non-preloaded, Unfinished Shaft End
SDA2010VZ-3+620 THK SDA2010VZ-3, φ20 Lead10, L=620mm | Shaft Diameter: φ20mm | Lead: 10mm | Shaft Total Length L: 620mm | Nut Length L1: 40mm | Ball Circuit: 1×3 | Ca: 11.0kN | C0a: 19.0kN | K: 213N/μm | Nut OD D: 36mm | Flange D1: 58mm | Max Speed: 4819 min⁻¹ | Type: Preloaded/Non-preloaded, Unfinished Shaft End
SDA2010VZ-3+1020 THK SDA2010VZ-3, φ20 Lead10, L=1020mm | Shaft Diameter: φ20mm | Lead: 10mm | Shaft Total Length L: 1020mm | Nut Length L1: 40mm | Ball Circuit: 1×3 | Ca: 11.0kN | C0a: 19.0kN | K: 213N/μm | Nut OD D: 36mm | Flange D1: 58mm | Max Speed: 4819 min⁻¹ | Type: Preloaded/Non-preloaded, Unfinished Shaft End
SDA2010VZ-3+1420 THK SDA2010VZ-3, φ20 Lead10, L=1420mm | Shaft Diameter: φ20mm | Lead: 10mm | Shaft Total Length L: 1420mm | Nut Length L1: 40mm | Ball Circuit: 1×3 | Ca: 11.0kN | C0a: 19.0kN | K: 213N/μm | Nut OD D: 36mm | Flange D1: 58mm | Max Speed: 4819 min⁻¹ | Type: Preloaded/Non-preloaded, Unfinished Shaft End
Ball ScrewsTHK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SDA2010VZ-3 Ball Screw Nut Unit (Shaft φ20, Lead 10mm)

Brand THK·Ball Screws

Available part numbers (3)

SDA2010VZ-3+620, SDA2010VZ-3+1020, SDA2010VZ-3+1420

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SDA2010VZ-3+620THK SDA2010VZ-3, φ20 Lead10, L=620mm | Shaft Diameter: φ20mm | Lead: 10mm | Shaft Total Length L: 620mm | Nut Length L1: 40mm | Ball Circuit: 1×3 | Ca: 11.0kN | C0a: 19.0kN | K: 213N/μm | Nut OD D: 36mm | Flange D1: 58mm | Max Speed: 4819 min⁻¹ | Type: Preloaded/Non-preloaded, Unfinished Shaft End
SDA2010VZ-3+1020THK SDA2010VZ-3, φ20 Lead10, L=1020mm | Shaft Diameter: φ20mm | Lead: 10mm | Shaft Total Length L: 1020mm | Nut Length L1: 40mm | Ball Circuit: 1×3 | Ca: 11.0kN | C0a: 19.0kN | K: 213N/μm | Nut OD D: 36mm | Flange D1: 58mm | Max Speed: 4819 min⁻¹ | Type: Preloaded/Non-preloaded, Unfinished Shaft End
SDA2010VZ-3+1420THK SDA2010VZ-3, φ20 Lead10, L=1420mm | Shaft Diameter: φ20mm | Lead: 10mm | Shaft Total Length L: 1420mm | Nut Length L1: 40mm | Ball Circuit: 1×3 | Ca: 11.0kN | C0a: 19.0kN | K: 213N/μm | Nut OD D: 36mm | Flange D1: 58mm | Max Speed: 4819 min⁻¹ | Type: Preloaded/Non-preloaded, Unfinished Shaft End
