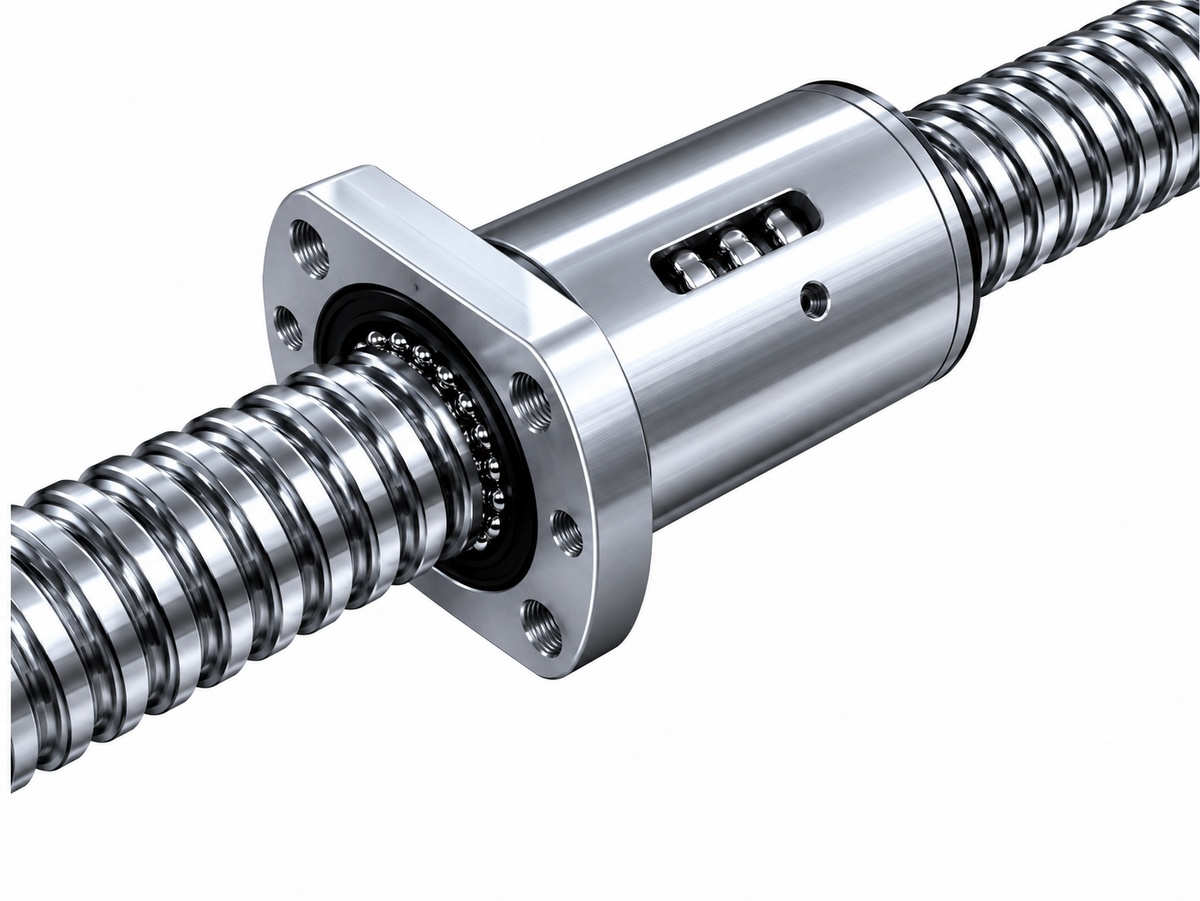

THK SDAN-VX/VAX Ball Screw (Double Nut Total Ball, Shaft φ55~63)

THK SDAN-V Series Double Nut Preloaded Ball Screw with Ball Retainer.

Key features

Double nut preload eliminates backlash
Higher axial rigidity than SDA-V type
ISO3408 compliant nut dimensions
Shaft diameter range φ55~63mm
V, VA (large flange), VX (total ball) variants available

Specifications

V type	N/A
Type	Double Nut, Preloaded, Ball Retainer (SDAN-V)

SDAN5510VX-4		THK SDAN5510VX-4, φ55 Lead10, Ca=58.2kN \| Shaft Diameter: φ55mm \| Lead: 10mm \| Ball Center Dia dp: 56mm \| V type: N/A \| Ca(VZ)=58.2kN / C0a(VZ)=141.6kN \| Nut OD D: 80mm \| Flange D1: 118mm \| Total Length L1: 115mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5510VAX-4		THK SDAN5510VAX-4, φ55 Lead10, Ca=58.5kN \| Shaft Diameter: φ55mm \| Lead: 10mm \| Ball Center Dia dp: 56.75mm \| V type: N/A \| Ca(VZ)=58.5kN / C0a(VZ)=143.6kN \| Nut OD D: 82mm \| Flange D1: 120mm \| Total Length L1: 115mm \| Nut Length: 94mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5512VX-4		THK SDAN5512VX-4, φ55 Lead12, Ca=58.1kN \| Shaft Diameter: φ55mm \| Lead: 12mm \| Ball Center Dia dp: 56mm \| V type: N/A \| Ca(VZ)=58.1kN / C0a(VZ)=141.7kN \| Nut OD D: 80mm \| Flange D1: 118mm \| Total Length L1: 134mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5512VAX-4		THK SDAN5512VAX-4, φ55 Lead12, Ca=58.5kN \| Shaft Diameter: φ55mm \| Lead: 12mm \| Ball Center Dia dp: 56.75mm \| V type: N/A \| Ca(VZ)=58.5kN / C0a(VZ)=143.7kN \| Nut OD D: 82mm \| Flange D1: 120mm \| Total Length L1: 134mm \| Nut Length: 94mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5516VX-4		THK SDAN5516VX-4, φ55 Lead16, Ca=58.1kN \| Shaft Diameter: φ55mm \| Lead: 16mm \| Ball Center Dia dp: 56mm \| V type: N/A \| Ca(VZ)=58.1kN / C0a(VZ)=142.0kN \| Nut OD D: 80mm \| Flange D1: 118mm \| Total Length L1: 157mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5516VAX-4		THK SDAN5516VAX-4, φ55 Lead16, Ca=58.4kN \| Shaft Diameter: φ55mm \| Lead: 16mm \| Ball Center Dia dp: 56.75mm \| V type: N/A \| Ca(VZ)=58.4kN / C0a(VZ)=144.0kN \| Nut OD D: 82mm \| Flange D1: 120mm \| Total Length L1: 157mm \| Nut Length: 94mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5520VX-4		THK SDAN5520VX-4, φ55 Lead20, Ca=58.0kN \| Shaft Diameter: φ55mm \| Lead: 20mm \| Ball Center Dia dp: 56mm \| V type: N/A \| Ca(VZ)=58.0kN / C0a(VZ)=142.3kN \| Nut OD D: 80mm \| Flange D1: 118mm \| Total Length L1: 192mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5520VAX-4		THK SDAN5520VAX-4, φ55 Lead20, Ca=58.3kN \| Shaft Diameter: φ55mm \| Lead: 20mm \| Ball Center Dia dp: 56.75mm \| V type: N/A \| Ca(VZ)=58.3kN / C0a(VZ)=144.3kN \| Nut OD D: 82mm \| Flange D1: 120mm \| Total Length L1: 192mm \| Nut Length: 94mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN6310VX-4		THK SDAN6310VX-4, φ63 Lead10, Ca=61.6kN \| Shaft Diameter: φ63mm \| Lead: 10mm \| Ball Center Dia dp: 64mm \| V type: N/A \| Ca(VZ)=61.6kN / C0a(VZ)=162.7kN \| Nut OD D: 90mm \| Flange D1: 125mm \| Total Length L1: 115mm \| Nut Length: 95mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN6312VX-4		THK SDAN6312VX-4, φ63 Lead12, Ca=72.9kN \| Shaft Diameter: φ63mm \| Lead: 12mm \| Ball Center Dia dp: 65mm \| V type: N/A \| Ca(VZ)=72.9kN / C0a(VZ)=185.2kN \| Nut OD D: 95mm \| Flange D1: 135mm \| Total Length L1: 135mm \| Nut Length: 100mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN6316VX-4		THK SDAN6316VX-4, φ63 Lead16, Ca=72.8kN \| Shaft Diameter: φ63mm \| Lead: 16mm \| Ball Center Dia dp: 65mm \| V type: N/A \| Ca(VZ)=72.8kN / C0a(VZ)=185.5kN \| Nut OD D: 95mm \| Flange D1: 135mm \| Total Length L1: 158mm \| Nut Length: 100mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN6320VX-4		THK SDAN6320VX-4, φ63 Lead20, Ca=72.7kN \| Shaft Diameter: φ63mm \| Lead: 20mm \| Ball Center Dia dp: 65mm \| V type: N/A \| Ca(VZ)=72.7kN / C0a(VZ)=185.8kN \| Nut OD D: 95mm \| Flange D1: 135mm \| Total Length L1: 193mm \| Nut Length: 100mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN6325VX-4		THK SDAN6325VX-4, φ63 Lead25, Ca=72.6kN \| Shaft Diameter: φ63mm \| Lead: 25mm \| Ball Center Dia dp: 65mm \| V type: N/A \| Ca(VZ)=72.6kN / C0a(VZ)=186.3kN \| Nut OD D: 95mm \| Flange D1: 135mm \| Total Length L1: 237mm \| Nut Length: 100mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN6330VX-4		THK SDAN6330VX-4, φ63 Lead30, Ca=72.5kN \| Shaft Diameter: φ63mm \| Lead: 30mm \| Ball Center Dia dp: 65mm \| V type: N/A \| Ca(VZ)=72.5kN / C0a(VZ)=186.9kN \| Nut OD D: 95mm \| Flange D1: 135mm \| Total Length L1: 266mm \| Nut Length: 100mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN6340VX-3		THK SDAN6340VX-3, φ63 Lead40, Ca=55.0kN \| Shaft Diameter: φ63mm \| Lead: 40mm \| Ball Center Dia dp: 65mm \| V type: N/A \| Ca(VZ)=55.0kN / C0a(VZ)=129.2kN \| Nut OD D: 95mm \| Flange D1: 135mm \| Total Length L1: 269mm \| Nut Length: 100mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
