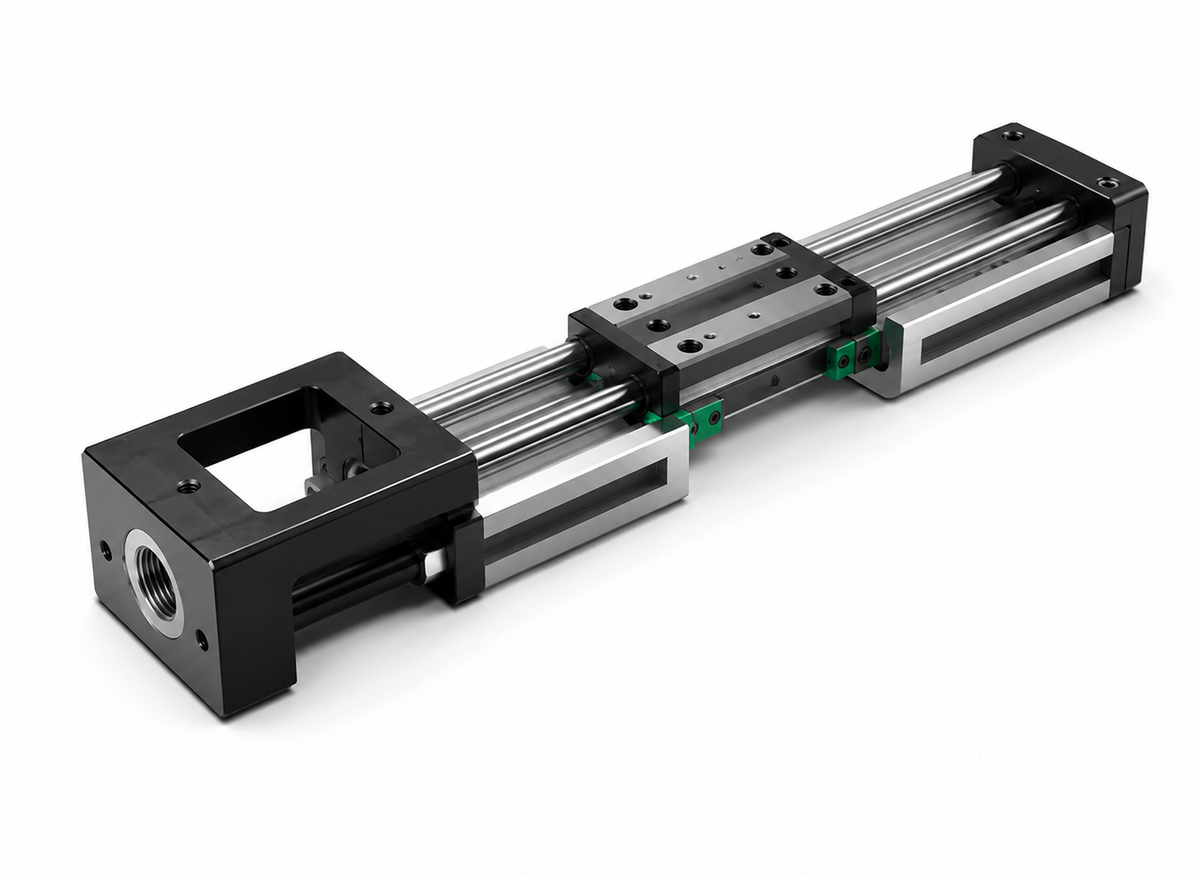

THK SKR26 LM Guide Actuator, Motor Inline (No Cover, φ26)

THK SKR26 LM Guide Actuator, Motor Inline (No Cover, φ26)

THK SKR26 Series LM Guide Actuator with inline motor mount (no cover).

Key features

  • LM block and ball screw nut integrated for compact design. 4-direction equal load capacity
  • A-type: 1 long block; B-type: 2 long blocks
  • Stroke range 60~210mm

Specifications

Cover No Cover
Motor Mount Inline
Rail Width 26mm
Type LM Guide Actuator (SKR26)
SKR26NCA-0060 THK SKR26, No Cover, 1 Long Block, Stroke 60mm | Stroke: 60mm | Mech Stopper Stroke: 68.4mm | Outer Rail Length: 150mm | Total Length L: 220mm | G: 35mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 1.01kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCA-0110 THK SKR26, No Cover, 1 Long Block, Stroke 110mm | Stroke: 110mm | Mech Stopper Stroke: 118.4mm | Outer Rail Length: 200mm | Total Length L: 270mm | G: 20mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 1.22kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCA-0160 THK SKR26, No Cover, 1 Long Block, Stroke 160mm | Stroke: 160mm | Mech Stopper Stroke: 168.4mm | Outer Rail Length: 250mm | Total Length L: 320mm | G: 45mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 1.43kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCA-0210 THK SKR26, No Cover, 1 Long Block, Stroke 210mm | Stroke: 210mm | Mech Stopper Stroke: 218.4mm | Outer Rail Length: 300mm | Total Length L: 370mm | G: 30mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 1.64kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCB-0045 THK SKR26, No Cover, 2 Long Blocks, Stroke 45mm | Stroke: 45mm | Mech Stopper Stroke: 54.2mm | Outer Rail Length: 200mm | Total Length L: 270mm | G: 20mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 1.39kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCB-0095 THK SKR26, No Cover, 2 Long Blocks, Stroke 95mm | Stroke: 95mm | Mech Stopper Stroke: 104.2mm | Outer Rail Length: 250mm | Total Length L: 320mm | G: 45mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 1.6kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCB-0145 THK SKR26, No Cover, 2 Long Blocks, Stroke 145mm | Stroke: 145mm | Mech Stopper Stroke: 154.2mm | Outer Rail Length: 300mm | Total Length L: 370mm | G: 30mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 1.81kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
LM Guide ActuatorsTHK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SKR26 LM Guide Actuator, Motor Inline (No Cover, φ26)

Brand THK·LM Guide Actuators

Available part numbers (7)

SKR26NCA-0060, SKR26NCA-0110, SKR26NCA-0160, SKR26NCA-0210, SKR26NCB-0045, SKR26NCB-0095, SKR26NCB-0145

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SKR26NCA-0060THK SKR26, No Cover, 1 Long Block, Stroke 60mm | Stroke: 60mm | Mech Stopper Stroke: 68.4mm | Outer Rail Length: 150mm | Total Length L: 220mm | G: 35mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 1.01kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCA-0110THK SKR26, No Cover, 1 Long Block, Stroke 110mm | Stroke: 110mm | Mech Stopper Stroke: 118.4mm | Outer Rail Length: 200mm | Total Length L: 270mm | G: 20mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 1.22kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCA-0160THK SKR26, No Cover, 1 Long Block, Stroke 160mm | Stroke: 160mm | Mech Stopper Stroke: 168.4mm | Outer Rail Length: 250mm | Total Length L: 320mm | G: 45mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 1.43kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCA-0210THK SKR26, No Cover, 1 Long Block, Stroke 210mm | Stroke: 210mm | Mech Stopper Stroke: 218.4mm | Outer Rail Length: 300mm | Total Length L: 370mm | G: 30mm | Block Type: A-type (1 Long Block) | Cover: No Cover | Mass: 1.64kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCB-0045THK SKR26, No Cover, 2 Long Blocks, Stroke 45mm | Stroke: 45mm | Mech Stopper Stroke: 54.2mm | Outer Rail Length: 200mm | Total Length L: 270mm | G: 20mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 1.39kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCB-0095THK SKR26, No Cover, 2 Long Blocks, Stroke 95mm | Stroke: 95mm | Mech Stopper Stroke: 104.2mm | Outer Rail Length: 250mm | Total Length L: 320mm | G: 45mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 1.6kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
SKR26NCB-0145THK SKR26, No Cover, 2 Long Blocks, Stroke 145mm | Stroke: 145mm | Mech Stopper Stroke: 154.2mm | Outer Rail Length: 300mm | Total Length L: 370mm | G: 30mm | Block Type: B-type (2 Long Blocks) | Cover: No Cover | Mass: 1.81kg | Motor Mount: Inline | Rail Width: 26mm | Type: LM Guide Actuator (SKR26)
