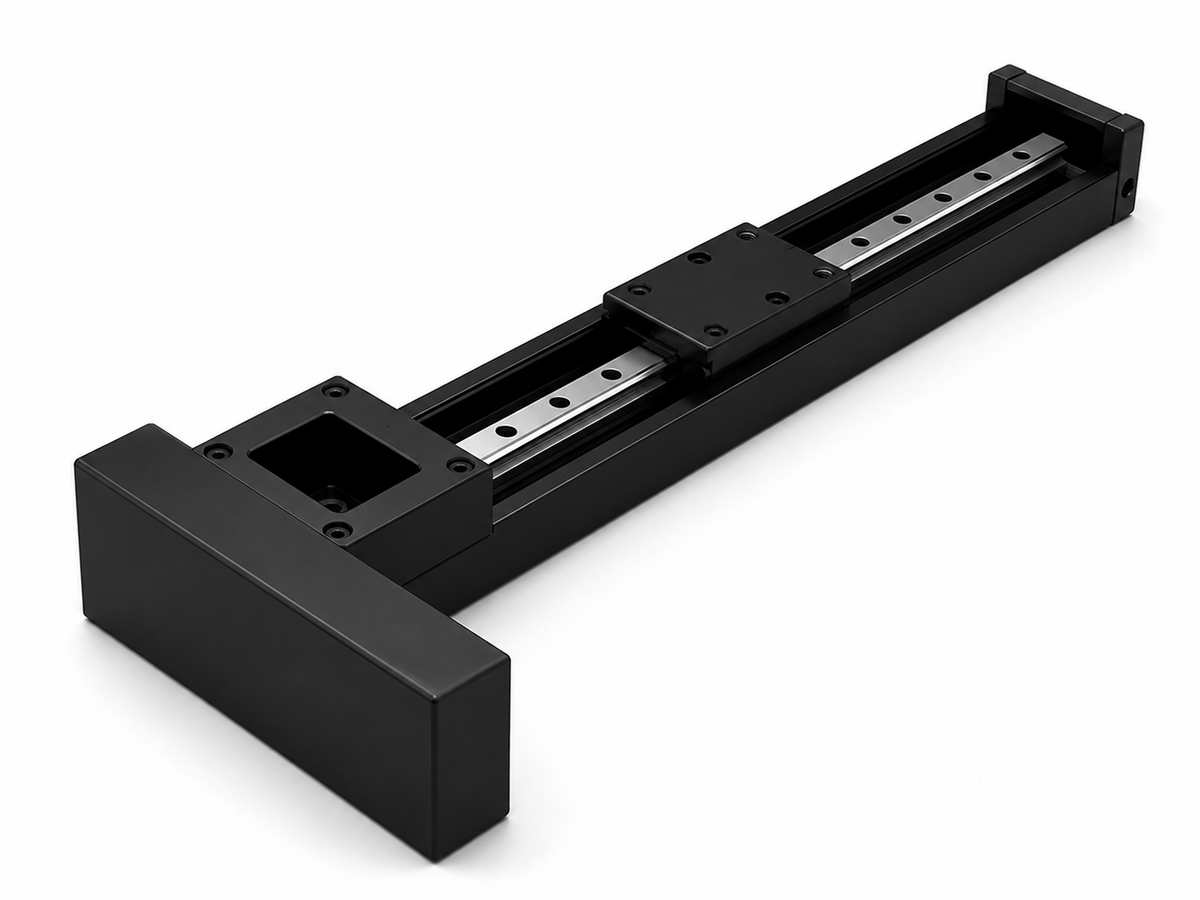

THK SKR33 LM Guide Actuator, Motor Parallel, Block C/D (With Cover, φ33)

THK SKR33 LM Guide Actuator, Motor Parallel, Block C/D (With Cover, φ33)

THK SKR33 Series LM Guide Actuator with parallel motor mount, Block C/D type (with cover).

Key features

  • Short block design
  • LM block and ball screw nut integrated for compact design. 4-direction equal load capacity
  • C-type: 1 short block; D-type: 2 short blocks
  • Stroke range 20~620mm

Specifications

Cover With Cover
Motor Mount Parallel
Rail Width 33mm
Block Series C/D (Short)
Type LM Guide Actuator (SKR33)
SKR33PC-0070 THK SKR33, With Cover, 1 Short Block, Stroke 70mm | Stroke: 70mm | Mech Stopper Stroke: 80.5mm | Outer Rail Length: 150mm | Total Length L: 214mm | C: 100mm | G: 25mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 2.2kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0120 THK SKR33, With Cover, 1 Short Block, Stroke 120mm | Stroke: 120mm | Mech Stopper Stroke: 130.5mm | Outer Rail Length: 200mm | Total Length L: 264mm | C: 100mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 2.6kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0220 THK SKR33, With Cover, 1 Short Block, Stroke 220mm | Stroke: 220mm | Mech Stopper Stroke: 230.5mm | Outer Rail Length: 300mm | Total Length L: 364mm | C: 200mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 3.4kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0320 THK SKR33, With Cover, 1 Short Block, Stroke 320mm | Stroke: 320mm | Mech Stopper Stroke: 330.5mm | Outer Rail Length: 400mm | Total Length L: 464mm | C: 300mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 4.1kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0420 THK SKR33, With Cover, 1 Short Block, Stroke 420mm | Stroke: 420mm | Mech Stopper Stroke: 430.5mm | Outer Rail Length: 500mm | Total Length L: 564mm | C: 400mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 4.9kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0520 THK SKR33, With Cover, 1 Short Block, Stroke 520mm | Stroke: 520mm | Mech Stopper Stroke: 530.5mm | Outer Rail Length: 600mm | Total Length L: 664mm | C: 500mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 5.7kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0620 THK SKR33, With Cover, 1 Short Block, Stroke 620mm | Stroke: 620mm | Mech Stopper Stroke: 630.5mm | Outer Rail Length: 700mm | Total Length L: 764mm | C: 600mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 6.4kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0020 THK SKR33, With Cover, 2 Short Blocks, Stroke 20mm | Stroke: 20mm | Mech Stopper Stroke: 30.0mm | Outer Rail Length: 150mm | Total Length L: 214mm | C: 100mm | G: 25mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 2.5kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0070 THK SKR33, With Cover, 2 Short Blocks, Stroke 70mm | Stroke: 70mm | Mech Stopper Stroke: 80.0mm | Outer Rail Length: 200mm | Total Length L: 264mm | C: 100mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 2.9kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0170 THK SKR33, With Cover, 2 Short Blocks, Stroke 170mm | Stroke: 170mm | Mech Stopper Stroke: 180.0mm | Outer Rail Length: 300mm | Total Length L: 364mm | C: 200mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 3.7kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0270 THK SKR33, With Cover, 2 Short Blocks, Stroke 270mm | Stroke: 270mm | Mech Stopper Stroke: 280.0mm | Outer Rail Length: 400mm | Total Length L: 464mm | C: 300mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 4.4kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0370 THK SKR33, With Cover, 2 Short Blocks, Stroke 370mm | Stroke: 370mm | Mech Stopper Stroke: 380.0mm | Outer Rail Length: 500mm | Total Length L: 564mm | C: 400mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 5.2kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0470 THK SKR33, With Cover, 2 Short Blocks, Stroke 470mm | Stroke: 470mm | Mech Stopper Stroke: 480.0mm | Outer Rail Length: 600mm | Total Length L: 664mm | C: 500mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 6.0kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0570 THK SKR33, With Cover, 2 Short Blocks, Stroke 570mm | Stroke: 570mm | Mech Stopper Stroke: 580.0mm | Outer Rail Length: 700mm | Total Length L: 764mm | C: 600mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 6.7kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
LM Guide ActuatorsTHK
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SKR33 LM Guide Actuator, Motor Parallel, Block C/D (With Cover, φ33)

Brand THK·LM Guide Actuators

Available part numbers (14)

SKR33PC-0070, SKR33PC-0120, SKR33PC-0220, SKR33PC-0320, SKR33PC-0420, SKR33PC-0520, SKR33PC-0620, SKR33PD-0020, SKR33PD-0070, SKR33PD-0170 + 4 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SKR33PC-0070THK SKR33, With Cover, 1 Short Block, Stroke 70mm | Stroke: 70mm | Mech Stopper Stroke: 80.5mm | Outer Rail Length: 150mm | Total Length L: 214mm | C: 100mm | G: 25mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 2.2kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0120THK SKR33, With Cover, 1 Short Block, Stroke 120mm | Stroke: 120mm | Mech Stopper Stroke: 130.5mm | Outer Rail Length: 200mm | Total Length L: 264mm | C: 100mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 2.6kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0220THK SKR33, With Cover, 1 Short Block, Stroke 220mm | Stroke: 220mm | Mech Stopper Stroke: 230.5mm | Outer Rail Length: 300mm | Total Length L: 364mm | C: 200mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 3.4kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0320THK SKR33, With Cover, 1 Short Block, Stroke 320mm | Stroke: 320mm | Mech Stopper Stroke: 330.5mm | Outer Rail Length: 400mm | Total Length L: 464mm | C: 300mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 4.1kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0420THK SKR33, With Cover, 1 Short Block, Stroke 420mm | Stroke: 420mm | Mech Stopper Stroke: 430.5mm | Outer Rail Length: 500mm | Total Length L: 564mm | C: 400mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 4.9kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0520THK SKR33, With Cover, 1 Short Block, Stroke 520mm | Stroke: 520mm | Mech Stopper Stroke: 530.5mm | Outer Rail Length: 600mm | Total Length L: 664mm | C: 500mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 5.7kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PC-0620THK SKR33, With Cover, 1 Short Block, Stroke 620mm | Stroke: 620mm | Mech Stopper Stroke: 630.5mm | Outer Rail Length: 700mm | Total Length L: 764mm | C: 600mm | G: 50mm | Block Type: C-type (1 Short Block) | Cover: With Cover | Mass: 6.4kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0020THK SKR33, With Cover, 2 Short Blocks, Stroke 20mm | Stroke: 20mm | Mech Stopper Stroke: 30.0mm | Outer Rail Length: 150mm | Total Length L: 214mm | C: 100mm | G: 25mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 2.5kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0070THK SKR33, With Cover, 2 Short Blocks, Stroke 70mm | Stroke: 70mm | Mech Stopper Stroke: 80.0mm | Outer Rail Length: 200mm | Total Length L: 264mm | C: 100mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 2.9kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0170THK SKR33, With Cover, 2 Short Blocks, Stroke 170mm | Stroke: 170mm | Mech Stopper Stroke: 180.0mm | Outer Rail Length: 300mm | Total Length L: 364mm | C: 200mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 3.7kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0270THK SKR33, With Cover, 2 Short Blocks, Stroke 270mm | Stroke: 270mm | Mech Stopper Stroke: 280.0mm | Outer Rail Length: 400mm | Total Length L: 464mm | C: 300mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 4.4kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0370THK SKR33, With Cover, 2 Short Blocks, Stroke 370mm | Stroke: 370mm | Mech Stopper Stroke: 380.0mm | Outer Rail Length: 500mm | Total Length L: 564mm | C: 400mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 5.2kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0470THK SKR33, With Cover, 2 Short Blocks, Stroke 470mm | Stroke: 470mm | Mech Stopper Stroke: 480.0mm | Outer Rail Length: 600mm | Total Length L: 664mm | C: 500mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 6.0kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
SKR33PD-0570THK SKR33, With Cover, 2 Short Blocks, Stroke 570mm | Stroke: 570mm | Mech Stopper Stroke: 580.0mm | Outer Rail Length: 700mm | Total Length L: 764mm | C: 600mm | G: 50mm | Block Type: D-type (2 Short Blocks) | Cover: With Cover | Mass: 6.7kg | Motor Mount: Parallel | Rail Width: 33mm | Block Series: C/D (Short) | Type: LM Guide Actuator (SKR33)
