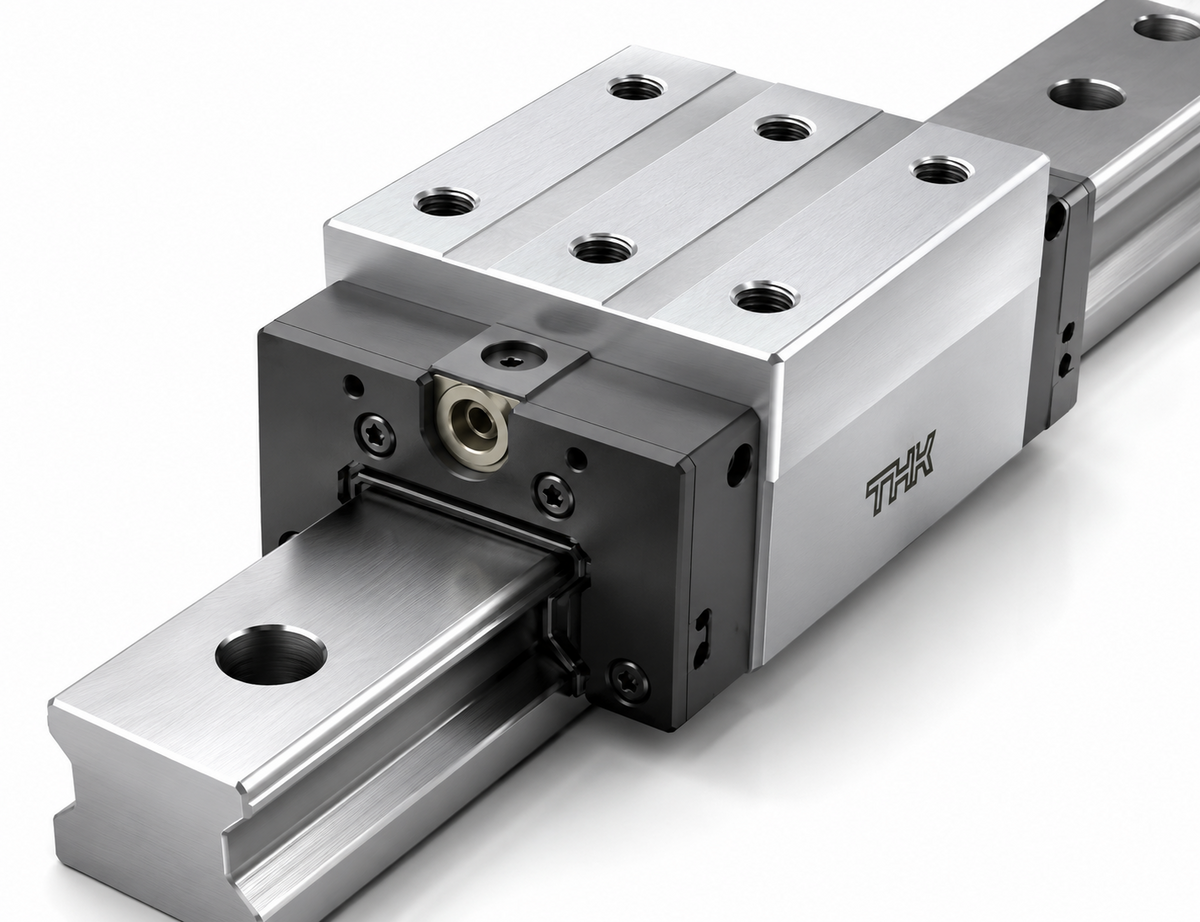

THK SRG-XGV/XGLV/XGR/XGLR Full Roller LM Guide Block (Super High Rigidity, Narrow Width, 15~30)

THK SRG-XGV/XGLV/XGR/XGLR Full Roller LM Guide Block (Super High Rigidity, Narrow Width, 15~30)

Super high rigidity Full Roller type LM Guide.

Key features

  • XGV/XGR type: narrow block width with tapped holes / XGLV/XGLR: long block for higher load rating
  • High rigidity rollers with length ≥1.5× roller diameter for maximum rigidity

Specifications

Type Full Roller LM Guide Block
Series SRG
Max Rail Length 3000 mm
Rolling Element Full Roller (length ≥1.5× dia.)
Mount Narrow Width Tapped
Brand THK
SRG15XGV SRG15XGV LM Block H24×W34×L69.2mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG15XGV | Height M: 24 mm | Width W: 34 mm | Length L: 69.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 11.3 kN | Static Load C0: 30.9 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Standard | Brand: THK
SRG20XGV SRG20XGV LM Block H30×W44×L86.2mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG20XGV | Height M: 30 mm | Width W: 44 mm | Length L: 86.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 20.6 kN | Static Load C0: 54.4 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Standard | Brand: THK
SRG20XGLV SRG20XGLV LM Block H30×W44×L106.2mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG20XGLV | Height M: 30 mm | Width W: 44 mm | Length L: 106.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 25.9 kN | Static Load C0: 73.1 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Long (XGL) | Brand: THK
SRG25XGR SRG25XGR LM Block H40×W48×L95.1mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG25XGR | Height M: 40 mm | Width W: 48 mm | Length L: 95.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 26.7 kN | Static Load C0: 65.0 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Standard | Brand: THK
SRG25XGLR SRG25XGLR LM Block H40×W48×L115.1mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG25XGLR | Height M: 40 mm | Width W: 48 mm | Length L: 115.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 32.9 kN | Static Load C0: 85.0 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Long (XGL) | Brand: THK
SRG30XGR SRG30XGR LM Block H45×W60×L111mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG30XGR | Height M: 45 mm | Width W: 60 mm | Length L: 111 mm | Max Rail Length: 3000 mm | Dynamic Load C: 38.7 kN | Static Load C0: 96.9 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Standard | Brand: THK
SRG30XGLR SRG30XGLR LM Block H45×W60×L135mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG30XGLR | Height M: 45 mm | Width W: 60 mm | Length L: 135 mm | Max Rail Length: 3000 mm | Dynamic Load C: 47.4 kN | Static Load C0: 126 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Long (XGL) | Brand: THK
LM GuidesTHK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SRG-XGV/XGLV/XGR/XGLR Full Roller LM Guide Block (Super High Rigidity, Narrow Width, 15~30)

Brand THK·LM Guides

Available part numbers (7)

SRG15XGV, SRG20XGV, SRG20XGLV, SRG25XGR, SRG25XGLR, SRG30XGR, SRG30XGLR

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRG15XGVSRG15XGV LM Block H24×W34×L69.2mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG15XGV | Height M: 24 mm | Width W: 34 mm | Length L: 69.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 11.3 kN | Static Load C0: 30.9 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Standard | Brand: THK
SRG20XGVSRG20XGV LM Block H30×W44×L86.2mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG20XGV | Height M: 30 mm | Width W: 44 mm | Length L: 86.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 20.6 kN | Static Load C0: 54.4 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Standard | Brand: THK
SRG20XGLVSRG20XGLV LM Block H30×W44×L106.2mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG20XGLV | Height M: 30 mm | Width W: 44 mm | Length L: 106.2 mm | Max Rail Length: 3000 mm | Dynamic Load C: 25.9 kN | Static Load C0: 73.1 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Long (XGL) | Brand: THK
SRG25XGRSRG25XGR LM Block H40×W48×L95.1mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG25XGR | Height M: 40 mm | Width W: 48 mm | Length L: 95.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 26.7 kN | Static Load C0: 65.0 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Standard | Brand: THK
SRG25XGLRSRG25XGLR LM Block H40×W48×L115.1mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG25XGLR | Height M: 40 mm | Width W: 48 mm | Length L: 115.1 mm | Max Rail Length: 3000 mm | Dynamic Load C: 32.9 kN | Static Load C0: 85.0 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Long (XGL) | Brand: THK
SRG30XGRSRG30XGR LM Block H45×W60×L111mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG30XGR | Height M: 45 mm | Width W: 60 mm | Length L: 111 mm | Max Rail Length: 3000 mm | Dynamic Load C: 38.7 kN | Static Load C0: 96.9 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Standard | Brand: THK
SRG30XGLRSRG30XGLR LM Block H45×W60×L135mm | Type: Full Roller LM Guide Block | Series: SRG | Model: SRG30XGLR | Height M: 45 mm | Width W: 60 mm | Length L: 135 mm | Max Rail Length: 3000 mm | Dynamic Load C: 47.4 kN | Static Load C0: 126 kN | Rolling Element: Full Roller (length ≥1.5× dia.) | Mount: Narrow Width Tapped | Block Length: Long (XGL) | Brand: THK
