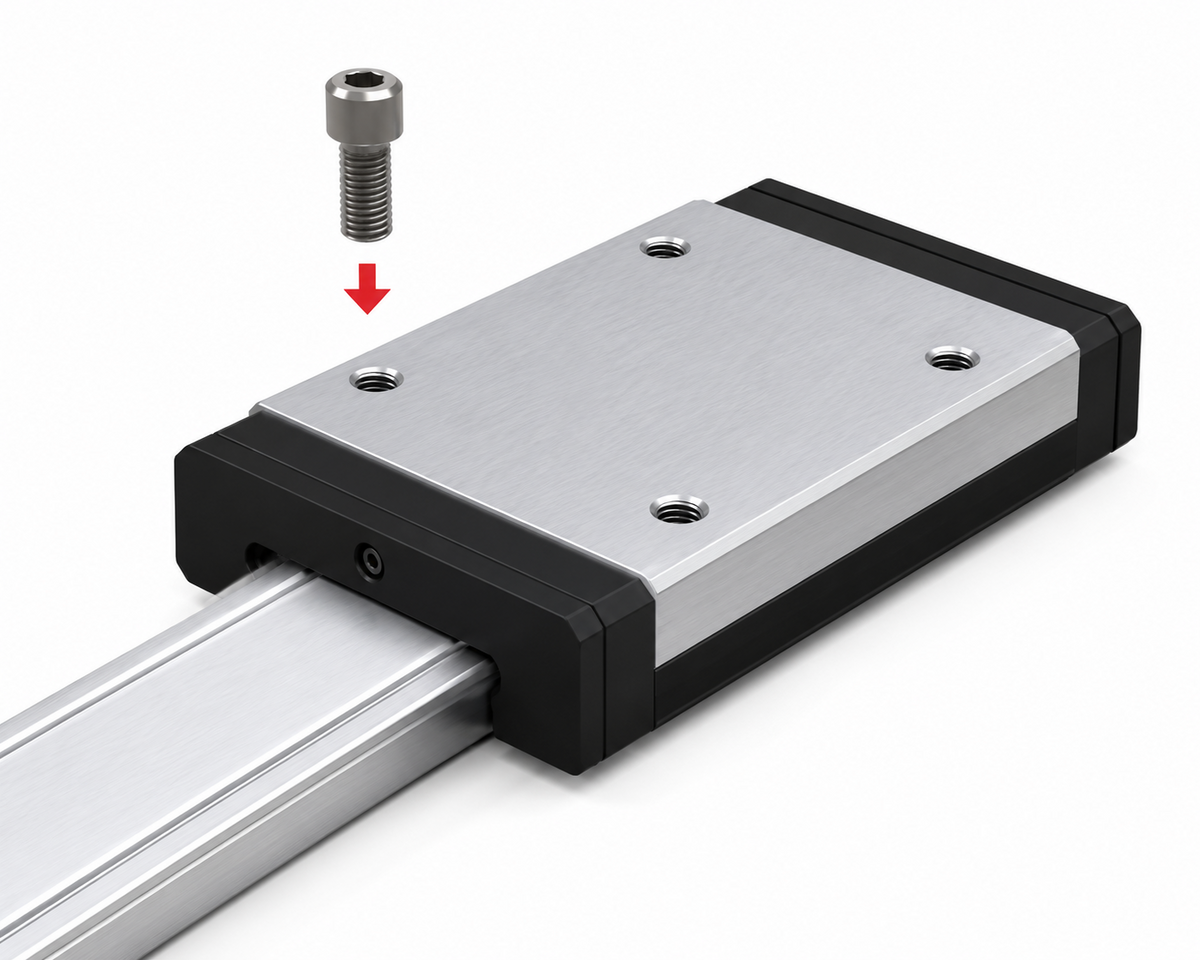

THK SRS-WS/WM/WN (#15) Miniature LM Guide Block (Wide Block, Low Dust, Stainless)

THK SRS-WS/WM/WN (#15) Miniature LM Guide Block (Wide Block, Low Dust, Stainless)

Miniature low-dust Ball Retainer Type LM Guide.

Key features

  • Wide block width (W) type with tapped holes
  • Stainless steel rail, block and balls
  • Very low rail profile with compact 2-row ball structure
  • Partial resin insert molding for lightweight design

Specifications

Type LM Guide Block
Series SRS
Block Width Wide (W type)
Height M 16 mm
Width W 60 mm
Max Rail Length 2000 mm
Material Stainless Steel
Structure Ball Retainer
Application Miniature Low-dust
Brand THK
SRS15WS SRS 15WS LM Block H16×W60×L41.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 41.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 6.64 kN | Static Load C0: 5.94 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WGS SRS 15WGS LM Block H16×W60×L41.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 41.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 5.59 kN | Static Load C0: 6.78 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WM SRS 15WM LM Block H16×W60×L55.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 9.12 kN | Static Load C0: 8.55 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WGM SRS 15WGM LM Block H16×W60×L55.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 7.43 kN | Static Load C0: 8.59 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WN SRS 15WN LM Block H16×W60×L74.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 12.4 kN | Static Load C0: 12.1 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WGN SRS 15WGN LM Block H16×W60×L74.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 9.87 kN | Static Load C0: 15.3 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
LM GuidesTHK
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SRS-WS/WM/WN (#15) Miniature LM Guide Block (Wide Block, Low Dust, Stainless)

Brand THK·LM Guides

Available part numbers (6)

SRS15WS, SRS15WGS, SRS15WM, SRS15WGM, SRS15WN, SRS15WGN

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRS15WSSRS 15WS LM Block H16×W60×L41.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 41.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 6.64 kN | Static Load C0: 5.94 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WGSSRS 15WGS LM Block H16×W60×L41.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 41.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 5.59 kN | Static Load C0: 6.78 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WMSRS 15WM LM Block H16×W60×L55.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 9.12 kN | Static Load C0: 8.55 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WGMSRS 15WGM LM Block H16×W60×L55.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 55.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 7.43 kN | Static Load C0: 8.59 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WNSRS 15WN LM Block H16×W60×L74.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 12.4 kN | Static Load C0: 12.1 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
SRS15WGNSRS 15WGN LM Block H16×W60×L74.5mm | Type: LM Guide Block | Series: SRS | Block Width: Wide (W type) | Height M: 16 mm | Width W: 60 mm | Length L: 74.5 mm | Max Rail Length: 2000 mm | Dynamic Load C: 9.87 kN | Static Load C0: 15.3 kN | Material: Stainless Steel | Structure: Ball Retainer | Application: Miniature Low-dust | Brand: THK
