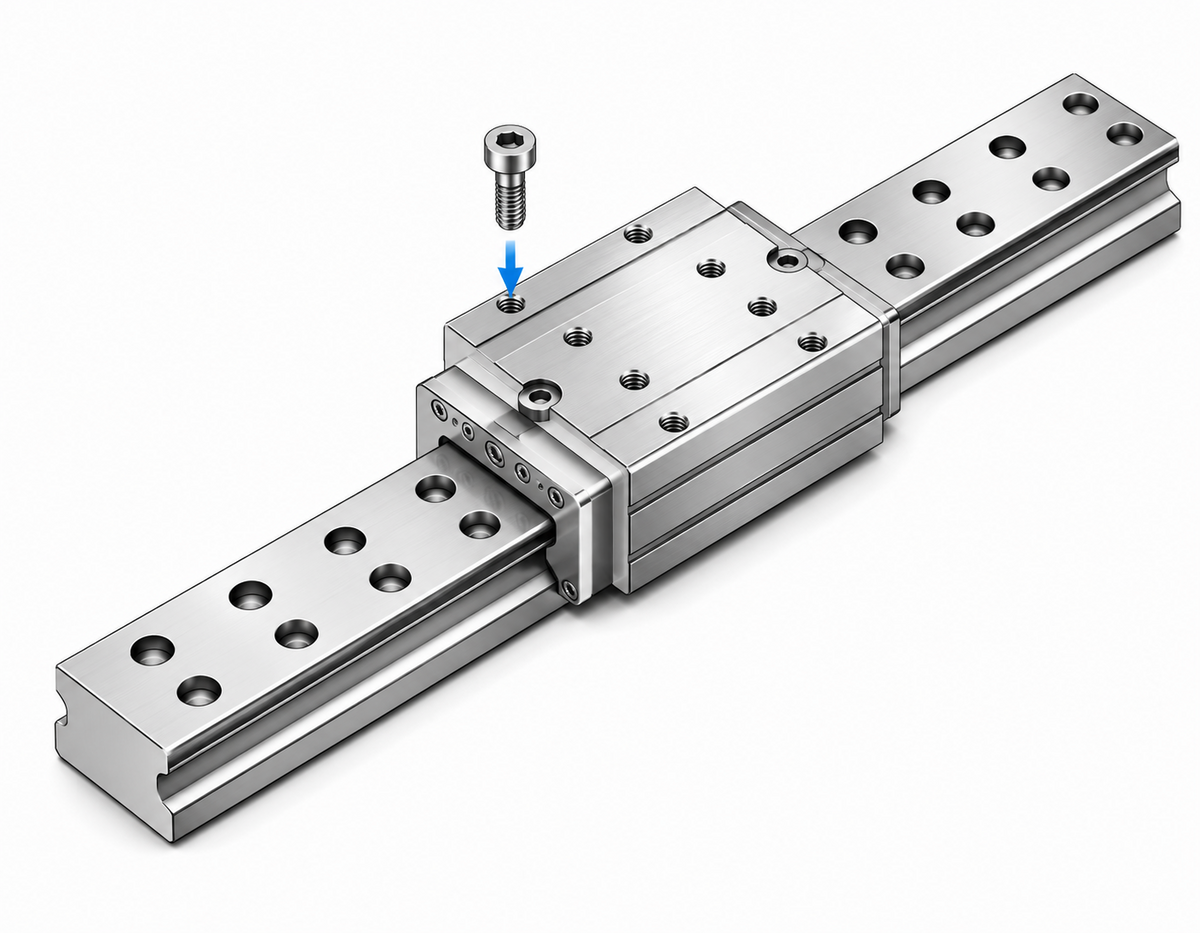

THK SRW-LR Wide Rail Roller Retainer LM Guide Block (Super High Rigidity, 2-row Rail Holes)

THK SRW-LR Wide Rail Roller Retainer LM Guide Block (Super High Rigidity, 2-row Rail Holes)

Super high rigidity wide rail Roller Retainer type LM Guide.

Key features

  • Tapped block
  • Based on SRG — roller retainer prevents skew for smooth low-variation motion
  • Wide rail with 2-row mounting holes for superior mounting strength and stability

Specifications

Type Wide Rail Roller Retainer LM Guide Block
Series SRW
Rolling Element Roller
Retainer Yes
Rail Wide (2-row mounting holes)
Mount Tapped
Brand THK
SRW-70LR SRW 70LR LM Block H70×W135×L190mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 70LR | Height M: 70 mm | Width W: 135 mm | Length L: 190 mm | Max Rail Length: 3090 mm | Dynamic Load C: 115 kN | Static Load C0: 256 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
SRW-85LR SRW 85LR LM Block H80×W165×L235mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 85LR | Height M: 80 mm | Width W: 165 mm | Length L: 235 mm | Max Rail Length: 3060 mm | Dynamic Load C: 167 kN | Static Load C0: 366 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
SRW-100LR SRW 100LR LM Block H100×W200×L303mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 100LR | Height M: 100 mm | Width W: 200 mm | Length L: 303 mm | Max Rail Length: 3000 mm | Dynamic Load C: 278 kN | Static Load C0: 599 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
SRW-130LR SRW 130LR LM Block H130×W260×L350mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 130LR | Height M: 130 mm | Width W: 260 mm | Length L: 350 mm | Max Rail Length: 3000 mm | Dynamic Load C: 497 kN | Static Load C0: 990 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
SRW-150LR SRW 150LR LM Block H150×W300×L395mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 150LR | Height M: 150 mm | Width W: 300 mm | Length L: 395 mm | Max Rail Length: 3000 mm | Dynamic Load C: 601 kN | Static Load C0: 1170 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
LM GuidesTHK
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SRW-LR Wide Rail Roller Retainer LM Guide Block (Super High Rigidity, 2-row Rail Holes)

Brand THK·LM Guides

Available part numbers (5)

SRW-70LR, SRW-85LR, SRW-100LR, SRW-130LR, SRW-150LR

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SRW-70LRSRW 70LR LM Block H70×W135×L190mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 70LR | Height M: 70 mm | Width W: 135 mm | Length L: 190 mm | Max Rail Length: 3090 mm | Dynamic Load C: 115 kN | Static Load C0: 256 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
SRW-85LRSRW 85LR LM Block H80×W165×L235mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 85LR | Height M: 80 mm | Width W: 165 mm | Length L: 235 mm | Max Rail Length: 3060 mm | Dynamic Load C: 167 kN | Static Load C0: 366 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
SRW-100LRSRW 100LR LM Block H100×W200×L303mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 100LR | Height M: 100 mm | Width W: 200 mm | Length L: 303 mm | Max Rail Length: 3000 mm | Dynamic Load C: 278 kN | Static Load C0: 599 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
SRW-130LRSRW 130LR LM Block H130×W260×L350mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 130LR | Height M: 130 mm | Width W: 260 mm | Length L: 350 mm | Max Rail Length: 3000 mm | Dynamic Load C: 497 kN | Static Load C0: 990 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
SRW-150LRSRW 150LR LM Block H150×W300×L395mm | Type: Wide Rail Roller Retainer LM Guide Block | Series: SRW | Model: SRW 150LR | Height M: 150 mm | Width W: 300 mm | Length L: 395 mm | Max Rail Length: 3000 mm | Dynamic Load C: 601 kN | Static Load C0: 1170 kN | Rolling Element: Roller | Retainer: Yes | Rail: Wide (2-row mounting holes) | Mount: Tapped | Brand: THK
