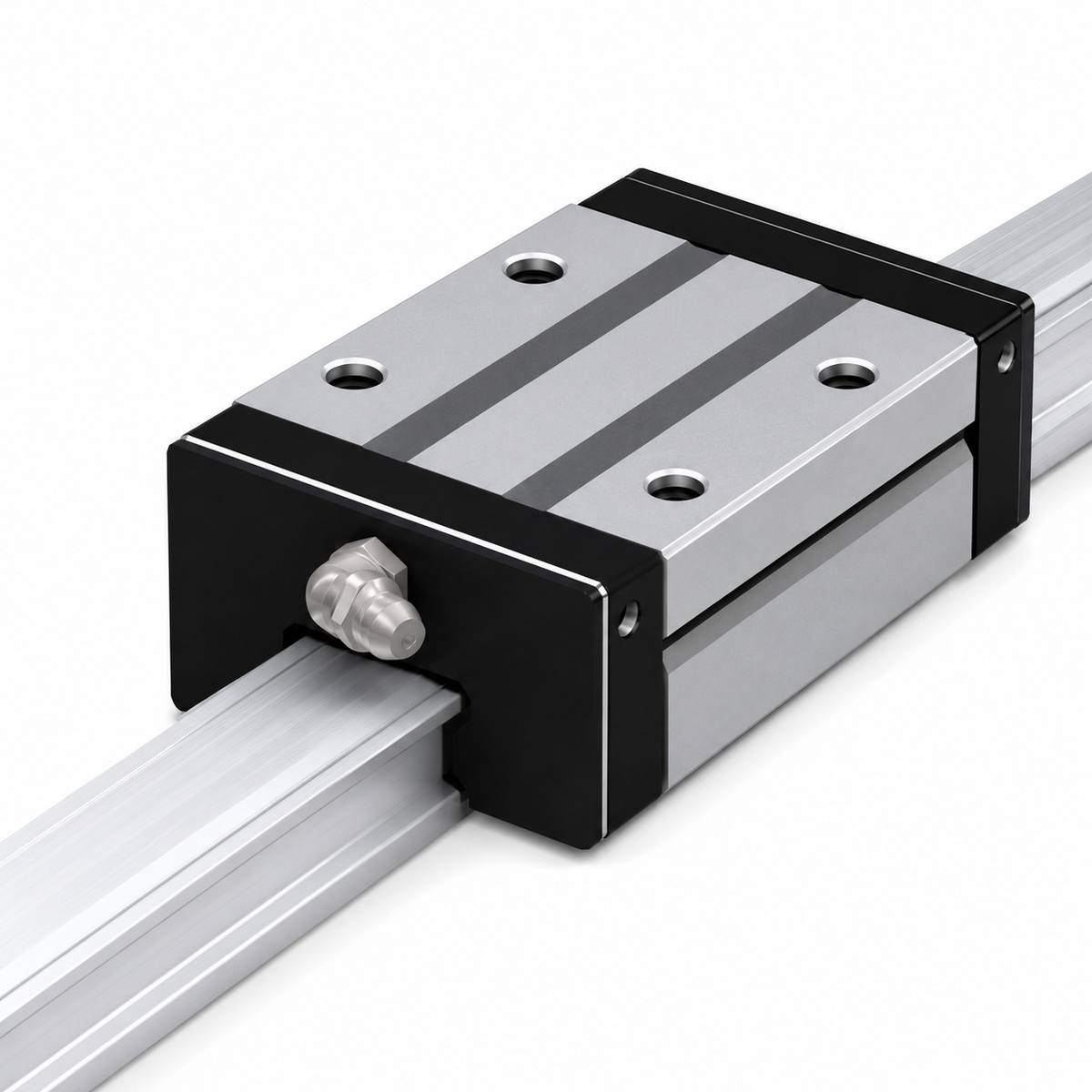

THK SSR-XV/XVM LM Guide Block (Short Length, Space-saving, Ball Retainer)

Ball Retainer Type LM Guide with strong radial load ball contact structure.

Key features

XV type has same cross-section as XW but shorter block length (L) for space saving
Low profile compact design
THK Circular Arc groove (DF structure)

Specifications

Type	LM Guide Block
Series	SSR
Structure	Ball Retainer DF
Note	Short block space-saving type
Brand	THK

SSR-15XV		SSR 15XV LM Block H24×W34×L40.3mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 15XV \| Height M: 24 mm \| Width W: 34 mm \| Length L: 40.3 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 9.1 kN \| Static Load C0: 9.7 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
SSR-15XVM		SSR 15XVM LM Block H24×W34×L40.3mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 15XVM \| Height M: 24 mm \| Width W: 34 mm \| Length L: 40.3 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 9.1 kN \| Static Load C0: 9.7 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
SSR-20XV		SSR 20XV LM Block H28×W42×L47.7mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 20XV \| Height M: 28 mm \| Width W: 42 mm \| Length L: 47.7 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 13.4 kN \| Static Load C0: 14.4 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
SSR-20XVM		SSR 20XVM LM Block H28×W42×L47.7mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 20XVM \| Height M: 28 mm \| Width W: 42 mm \| Length L: 47.7 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 13.4 kN \| Static Load C0: 14.4 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
SSR-25XV		SSR 25XV LM Block H33×W48×L60mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 25XV \| Height M: 33 mm \| Width W: 48 mm \| Length L: 60 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 21.7 kN \| Static Load C0: 22.5 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
SSR-25XVM		SSR 25XVM LM Block H33×W48×L60mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 25XVM \| Height M: 33 mm \| Width W: 48 mm \| Length L: 60 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 21.7 kN \| Static Load C0: 22.5 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
SSR-30XV		SSR 30XV LM Block H42×W60×L66.7mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 30XV \| Height M: 42 mm \| Width W: 60 mm \| Length L: 66.7 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 34.8 kN \| Static Load C0: 34.4 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
SSR-30XVM		SSR 30XVM LM Block H42×W60×L66.7mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 30XVM \| Height M: 42 mm \| Width W: 60 mm \| Length L: 66.7 mm \| Max Rail Length: 2020 mm \| Dynamic Load C: 34.8 kN \| Static Load C0: 34.4 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
SSR-35XV		SSR 35XV LM Block H48×W70×L77.5mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 35XV \| Height M: 48 mm \| Width W: 70 mm \| Length L: 77.5 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 48.3 kN \| Static Load C0: 46.7 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK

LM GuidesTHK

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SSR-XV/XVM LM Guide Block (Short Length, Space-saving, Ball Retainer)

Brand THK·LM Guides

Available part numbers (9)

SSR-15XV, SSR-15XVM, SSR-20XV, SSR-20XVM, SSR-25XV, SSR-25XVM, SSR-30XV, SSR-30XVM, SSR-35XV

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SSR-15XV	SSR 15XV LM Block H24×W34×L40.3mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 15XV \| Height M: 24 mm \| Width W: 34 mm \| Length L: 40.3 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 9.1 kN \| Static Load C0: 9.7 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
	SSR-15XVM	SSR 15XVM LM Block H24×W34×L40.3mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 15XVM \| Height M: 24 mm \| Width W: 34 mm \| Length L: 40.3 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 9.1 kN \| Static Load C0: 9.7 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
	SSR-20XV	SSR 20XV LM Block H28×W42×L47.7mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 20XV \| Height M: 28 mm \| Width W: 42 mm \| Length L: 47.7 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 13.4 kN \| Static Load C0: 14.4 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
	SSR-20XVM	SSR 20XVM LM Block H28×W42×L47.7mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 20XVM \| Height M: 28 mm \| Width W: 42 mm \| Length L: 47.7 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 13.4 kN \| Static Load C0: 14.4 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
	SSR-25XV	SSR 25XV LM Block H33×W48×L60mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 25XV \| Height M: 33 mm \| Width W: 48 mm \| Length L: 60 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 21.7 kN \| Static Load C0: 22.5 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
	SSR-25XVM	SSR 25XVM LM Block H33×W48×L60mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 25XVM \| Height M: 33 mm \| Width W: 48 mm \| Length L: 60 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 21.7 kN \| Static Load C0: 22.5 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
	SSR-30XV	SSR 30XV LM Block H42×W60×L66.7mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 30XV \| Height M: 42 mm \| Width W: 60 mm \| Length L: 66.7 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 34.8 kN \| Static Load C0: 34.4 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
	SSR-30XVM	SSR 30XVM LM Block H42×W60×L66.7mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 30XVM \| Height M: 42 mm \| Width W: 60 mm \| Length L: 66.7 mm \| Max Rail Length: 2020 mm \| Dynamic Load C: 34.8 kN \| Static Load C0: 34.4 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
	SSR-35XV	SSR 35XV LM Block H48×W70×L77.5mm \| Type: LM Guide Block \| Series: SSR \| Block Type: 35XV \| Height M: 48 mm \| Width W: 70 mm \| Length L: 77.5 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 48.3 kN \| Static Load C0: 46.7 kN \| Structure: Ball Retainer DF \| Note: Short block space-saving type \| Brand: THK
