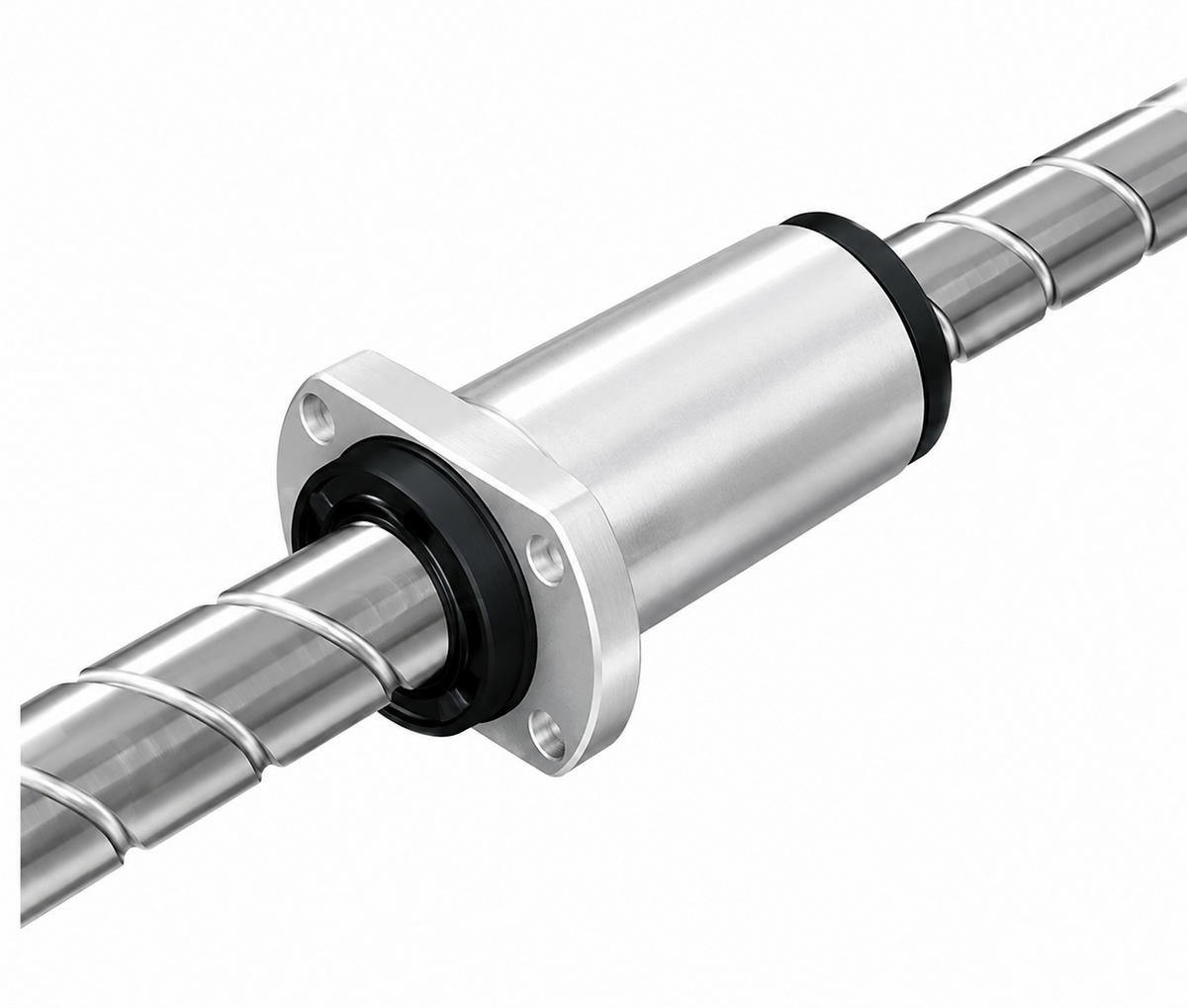

THK WGF1530-3 Ball Screw (Super Lead, Shaft φ15, Lead 30mm)

THK WGF1530-3 Ball Screw (Super Lead, Shaft φ15, Lead 30mm)

THK WGF Series Precision Ground Ball Screw (Super Lead type).

Key features

  • Lead 30mm is 2.0× shaft diameter — designed for high-speed feed
  • DN value 70,000
  • Shaft diameter φ15mm, 2×1.6 ball circuit
  • Ca=8.1kN, C0a=14.6kN, K=220N/μm
  • Custom shaft length available up to 1500mm
  • Note: Seal not provided

Specifications

Shaft Diameter φ15mm
Lead 30mm
Ball Circuit 2×1.6
Ca 8.1kN
C0a 14.6kN
K 220N/μm
Nut OD D 32mm
Flange D1 53mm
Max Shaft Length 1500mm (custom order)
DN Value 70,000
Type Super Lead, No Seal
WGF1530-3GT+C5 THK WGF1530-3, GT (Preloaded), C5 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: GT (Preloaded) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3GT+C7 THK WGF1530-3, GT (Preloaded), C7 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: GT (Preloaded) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3G0+C5 THK WGF1530-3, G0 (Zero clearance), C5 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G0 (Zero clearance) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3G0+C7 THK WGF1530-3, G0 (Zero clearance), C7 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G0 (Zero clearance) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3G2+C5 THK WGF1530-3, G2 (Standard), C5 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G2 (Standard) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3G2+C7 THK WGF1530-3, G2 (Standard), C7 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G2 (Standard) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
Ball ScrewsTHK
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK WGF1530-3 Ball Screw (Super Lead, Shaft φ15, Lead 30mm)

Brand THK·Ball Screws

Available part numbers (6)

WGF1530-3GT+C5, WGF1530-3GT+C7, WGF1530-3G0+C5, WGF1530-3G0+C7, WGF1530-3G2+C5, WGF1530-3G2+C7

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WGF1530-3GT+C5THK WGF1530-3, GT (Preloaded), C5 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: GT (Preloaded) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3GT+C7THK WGF1530-3, GT (Preloaded), C7 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: GT (Preloaded) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3G0+C5THK WGF1530-3, G0 (Zero clearance), C5 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G0 (Zero clearance) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3G0+C7THK WGF1530-3, G0 (Zero clearance), C7 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G0 (Zero clearance) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3G2+C5THK WGF1530-3, G2 (Standard), C5 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G2 (Standard) | Lead Accuracy Grade: C5 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
WGF1530-3G2+C7THK WGF1530-3, G2 (Standard), C7 | Shaft Diameter: φ15mm | Lead: 30mm | Clearance: G2 (Standard) | Lead Accuracy Grade: C7 | Ball Circuit: 2×1.6 | Ca: 8.1kN | C0a: 14.6kN | K: 220N/μm | Nut OD D: 32mm | Flange D1: 53mm | Max Shaft Length: 1500mm (custom order) | DN Value: 70,000 | Type: Super Lead, No Seal
