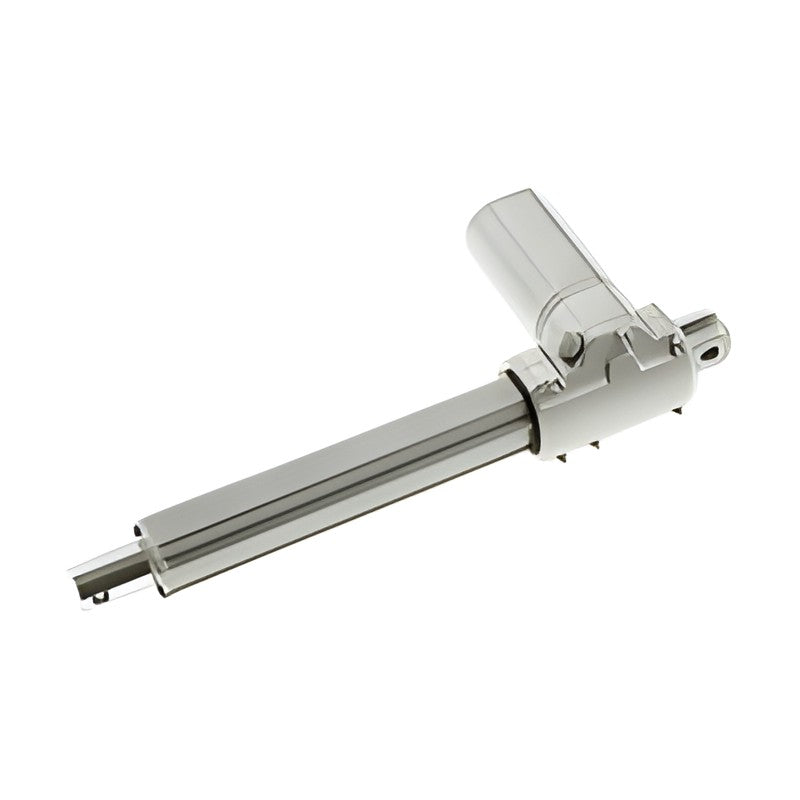

TiMOTION TA4 Series Linear Actuator (up to 3,500 N)

TiMOTION TA4 Series Linear Actuator (up to 3,500 N)

Compact, quiet TiMOTION TA4 series right-angle linear actuator for spaces that require a right-angle motor, rated up to 3,500 N push.

Key features

  • Right-angle motor for tight installations
  • Up to 3,500 N push / 2,000 N pull
  • Low noise operation
  • Optional Hall sensors and IP54 / IP66 rating
  • IEC60601-1, ES60601-1, UL73 and EMC certified

Specifications

Voltage 12 or 24 V DC
Max. load 3,500 N push / 2,000 N pull
Max. speed at full load 16.6 mm/s (800 N)
Min. installation Stroke + 140 mm
IP rating Up to IP66
Certificates IEC60601-1, ES60601-1, UL73, EMC
Color Silver
Operating temp. +5 to +45 C
Product segment Comfort / Industrial Motion
Load codes 15 (full code per ordering key)
Source TiMOTION TA4 series datasheet
TA4-A Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 5.0 mm/s | Current at load: 2.5 A | Motor: 4100 RPM
TA4-B Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 6.8 mm/s | Current at load: 2.5 A | Motor: 4100 RPM
TA4-C Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 11.6 mm/s | Current at load: 3.0 A | Motor: 4100 RPM
TA4-D Push/Pull: 800/800 N | Self-lock: 800 N | Speed at load: 16.6 mm/s | Current at load: 2.8 A | Motor: 4100 RPM
TA4-E Push/Pull: 3,500/2,000 N | Self-lock: 3,500 N | Speed at load: 2.3 mm/s | Current at load: 2.8 A | Motor: 4100 RPM
TA4-G Push/Pull: 2,500/2,000 N | Self-lock: 2,500 N | Speed at load: 5.1 mm/s | Current at load: 2.7 A | Motor: 3800 RPM
TA4-H Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 7.0 mm/s | Current at load: 2.9 A | Motor: 3800 RPM
TA4-I Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 12.5 mm/s | Current at load: 3.5 A | Motor: 3800 RPM
TA4-J Push/Pull: 3,500/2,000 N | Self-lock: 3,500 N | Speed at load: 3.1 mm/s | Current at load: 2.8 A | Motor: 3800 RPM
TA4-M Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 3.8 mm/s | Current at load: 1.6 A | Motor: 3400 RPM
TA4-N Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 5.9 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA4-O Push/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 11.3 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA4-R Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 3.7 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
TA4-S Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 6.9 mm/s | Current at load: 1.5 A | Motor: 2200 RPM
TA4-T Push/Pull: 800/800 N | Self-lock: 800 N | Speed at load: 10.0 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
Linear ActuatorsTiMOTION
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA4 Series Linear Actuator (up to 3,500 N)

Brand TiMOTION·Linear Actuators

Available part numbers (15)

TA4-A, TA4-B, TA4-C, TA4-D, TA4-E, TA4-G, TA4-H, TA4-I, TA4-J, TA4-M + 5 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA4-APush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 5.0 mm/s | Current at load: 2.5 A | Motor: 4100 RPM
TA4-BPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 6.8 mm/s | Current at load: 2.5 A | Motor: 4100 RPM
TA4-CPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 11.6 mm/s | Current at load: 3.0 A | Motor: 4100 RPM
TA4-DPush/Pull: 800/800 N | Self-lock: 800 N | Speed at load: 16.6 mm/s | Current at load: 2.8 A | Motor: 4100 RPM
TA4-EPush/Pull: 3,500/2,000 N | Self-lock: 3,500 N | Speed at load: 2.3 mm/s | Current at load: 2.8 A | Motor: 4100 RPM
TA4-GPush/Pull: 2,500/2,000 N | Self-lock: 2,500 N | Speed at load: 5.1 mm/s | Current at load: 2.7 A | Motor: 3800 RPM
TA4-HPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 7.0 mm/s | Current at load: 2.9 A | Motor: 3800 RPM
TA4-IPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 12.5 mm/s | Current at load: 3.5 A | Motor: 3800 RPM
TA4-JPush/Pull: 3,500/2,000 N | Self-lock: 3,500 N | Speed at load: 3.1 mm/s | Current at load: 2.8 A | Motor: 3800 RPM
TA4-MPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 3.8 mm/s | Current at load: 1.6 A | Motor: 3400 RPM
TA4-NPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 5.9 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA4-OPush/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 11.3 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA4-RPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 3.7 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
TA4-SPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 6.9 mm/s | Current at load: 1.5 A | Motor: 2200 RPM
TA4-TPush/Pull: 800/800 N | Self-lock: 800 N | Speed at load: 10.0 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
