TiMOTION TA5P Series Linear Actuator (up to 6,000 N)

TiMOTION TA5P Series Linear Actuator (up to 6,000 N)

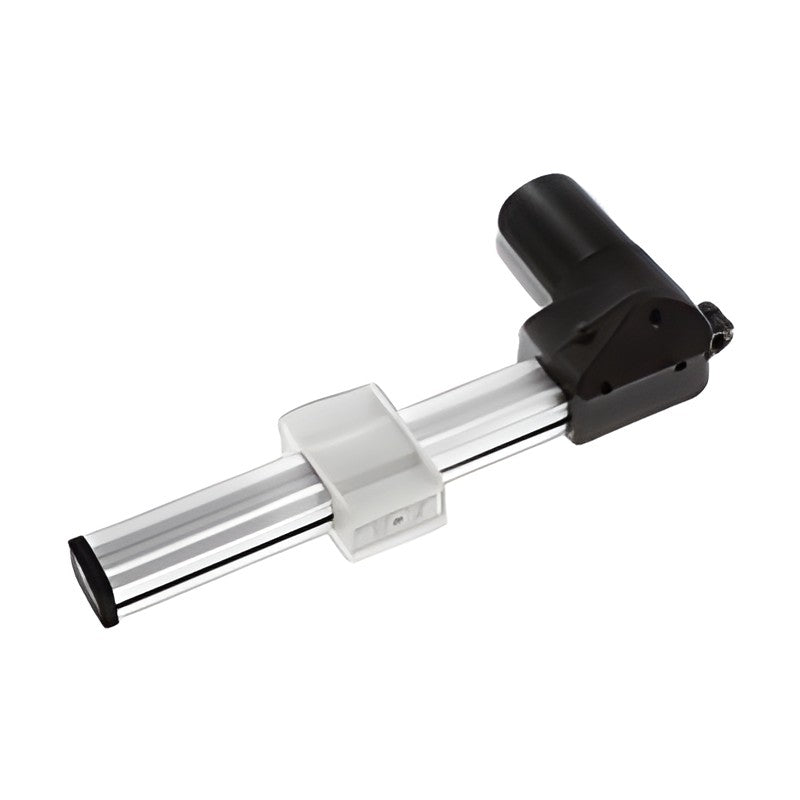

TiMOTION TA5P series recliner actuator with a one-piece aluminium cover and linear slide instead of an extension tube, rated up to 6,000 N push.

Key features

  • One-piece aluminium cover, cable-free stronger structure
  • Linear slide moves the load (no extension tube)
  • Up to 6,000 N push / 3,000 N pull
  • Options: Hall sensors, L-shaped mounting bracket
  • Designed for recliners

Specifications

Voltage 12, 24 or 36 V DC
Max. load 6,000 N push / 3,000 N pull
Max. speed (no load) 58 mm/s
Retracted length 157 mm min.
Certificates UL962, EN 61000-6-1, EN 61000-6-3
Color Black
Product segment Comfort Motion
Load codes 16 (full code per ordering key)
Source TiMOTION TA5P series datasheet
TA5P-A Push/Pull: 750/750 N | Self-lock: 750 N | Speed at load: 25.0 mm/s | Current at load: 2.8 A | Motor: 2600 RPM
TA5P-C Push/Pull: 5,000/3,000 N | Self-lock: 5,000 N | Speed at load: 3.9 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA5P-D Push/Pull: 6,000/3,000 N | Self-lock: 6,000 N | Speed at load: 3.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA5P-E Push/Pull: 3,000/3,000 N | Self-lock: 3,000 N | Speed at load: 6.6 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA5P-F Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 8.5 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA5P-G Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 13.3 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA5P-H Push/Pull: 1,200/1,200 N | Self-lock: 1,200 N | Speed at load: 18.5 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA5P-J Push/Pull: 3,000/3,000 N | Self-lock: 3,000 N | Speed at load: 6.0 mm/s | Current at load: 3.3 A | Motor: 2600 RPM
TA5P-L Push/Pull: 6,000/3,000 N | Self-lock: 6,000 N | Speed at load: 4.1 mm/s | Current at load: 4.0 A | Motor: 3400 RPM
TA5P-M Push/Pull: 3,000/3,000 N | Self-lock: 3,000 N | Speed at load: 8.3 mm/s | Current at load: 3.4 A | Motor: 3400 RPM
TA5P-N Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 12.0 mm/s | Current at load: 4.1 A | Motor: 3400 RPM
TA5P-O Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 15.5 mm/s | Current at load: 4.6 A | Motor: 3400 RPM
TA5P-P Push/Pull: 1,200/1,200 N | Self-lock: 1,200 N | Speed at load: 23.5 mm/s | Current at load: 3.6 A | Motor: 3400 RPM
TA5P-Q Push/Pull: 3,000/3,000 N | Self-lock: 3,000 N | Speed at load: 7.6 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA5P-S Push/Pull: 750/750 N | Self-lock: 750 N | Speed at load: 32.5 mm/s | Current at load: 3.5 A | Motor: 3400 RPM
TA5P-T Push/Pull: 5,000/3,000 N | Self-lock: 5,000 N | Speed at load: 5.3 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
Linear ActuatorsTiMOTION
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA5P Series Linear Actuator (up to 6,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (16)

TA5P-A, TA5P-C, TA5P-D, TA5P-E, TA5P-F, TA5P-G, TA5P-H, TA5P-J, TA5P-L, TA5P-M + 6 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA5P-APush/Pull: 750/750 N | Self-lock: 750 N | Speed at load: 25.0 mm/s | Current at load: 2.8 A | Motor: 2600 RPM
TA5P-CPush/Pull: 5,000/3,000 N | Self-lock: 5,000 N | Speed at load: 3.9 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA5P-DPush/Pull: 6,000/3,000 N | Self-lock: 6,000 N | Speed at load: 3.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA5P-EPush/Pull: 3,000/3,000 N | Self-lock: 3,000 N | Speed at load: 6.6 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA5P-FPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 8.5 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA5P-GPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 13.3 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA5P-HPush/Pull: 1,200/1,200 N | Self-lock: 1,200 N | Speed at load: 18.5 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA5P-JPush/Pull: 3,000/3,000 N | Self-lock: 3,000 N | Speed at load: 6.0 mm/s | Current at load: 3.3 A | Motor: 2600 RPM
TA5P-LPush/Pull: 6,000/3,000 N | Self-lock: 6,000 N | Speed at load: 4.1 mm/s | Current at load: 4.0 A | Motor: 3400 RPM
TA5P-MPush/Pull: 3,000/3,000 N | Self-lock: 3,000 N | Speed at load: 8.3 mm/s | Current at load: 3.4 A | Motor: 3400 RPM
TA5P-NPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 12.0 mm/s | Current at load: 4.1 A | Motor: 3400 RPM
TA5P-OPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 15.5 mm/s | Current at load: 4.6 A | Motor: 3400 RPM
TA5P-PPush/Pull: 1,200/1,200 N | Self-lock: 1,200 N | Speed at load: 23.5 mm/s | Current at load: 3.6 A | Motor: 3400 RPM
TA5P-QPush/Pull: 3,000/3,000 N | Self-lock: 3,000 N | Speed at load: 7.6 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA5P-SPush/Pull: 750/750 N | Self-lock: 750 N | Speed at load: 32.5 mm/s | Current at load: 3.5 A | Motor: 3400 RPM
TA5P-TPush/Pull: 5,000/3,000 N | Self-lock: 5,000 N | Speed at load: 5.3 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
