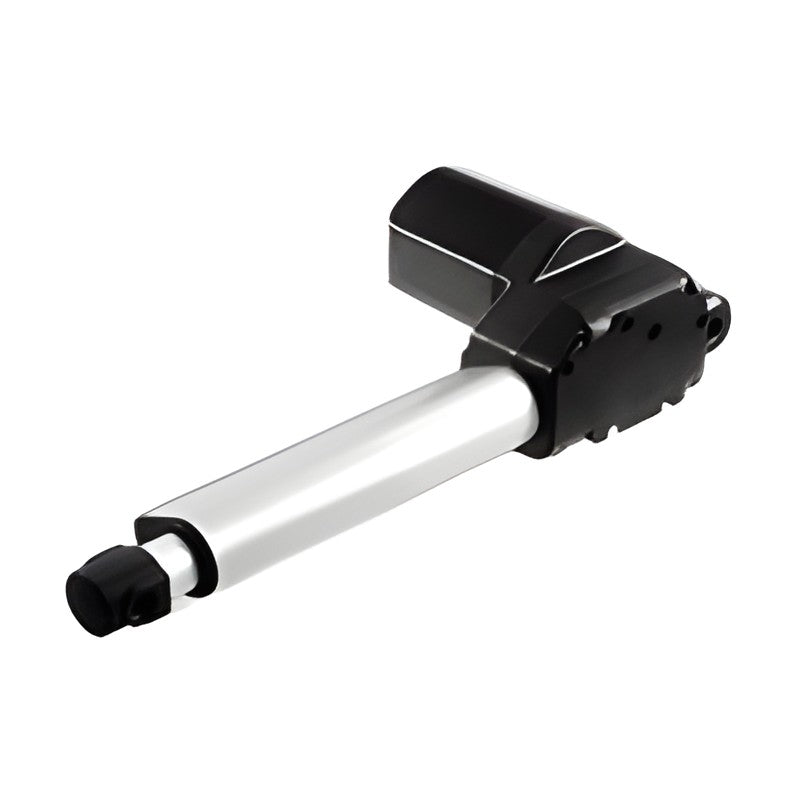

TiMOTION TA6 Series Linear Actuator (up to 6,000 N)

TiMOTION TA6 Series Linear Actuator (up to 6,000 N)

TiMOTION TA6 series right-angle linear actuator for recliners, lift chairs and theatre seating, rated up to 6,000 N push.

Key features

  • Right-angle design reduces noise
  • Up to 6,000 N push / 4,000 N pull
  • Freewheeling push-only option
  • Options: safety nut, Hall sensors
  • UL962 and EMC certified

Specifications

Voltage 12, 24 or 36 V DC
Max. load 6,000 N push / 4,000 N pull
Max. speed at full load 23.4 mm/s (1,000 N)
Stroke 25-1000 mm
Min. installation Stroke + 163 mm
Certificates UL962, EMC
Color Black
Operating temp. +5 to +45 C
Product segment Comfort Motion
Load codes 16 (full code per ordering key)
Source TiMOTION TA6 series datasheet
TA6-C Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 4.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA6-D Push/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 3.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA6-F Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 8.3 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA6-G Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 12.1 mm/s | Current at load: 2.8 A | Motor: 2600 RPM
TA6-H Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 19.1 mm/s | Current at load: 2.1 A | Motor: 2600 RPM
TA6-J Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 6.0 mm/s | Current at load: 3.6 A | Motor: 2600 RPM
TA6-L Push/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 4.1 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA6-N Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 11.1 mm/s | Current at load: 4.1 A | Motor: 3400 RPM
TA6-O Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 14.9 mm/s | Current at load: 4.0 A | Motor: 3400 RPM
TA6-P Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 23.4 mm/s | Current at load: 3.0 A | Motor: 3400 RPM
TA6-Q Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 7.9 mm/s | Current at load: 4.6 A | Motor: 3400 RPM
TA6-T Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 5.4 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA6-X Push/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 5.0 mm/s | Current at load: 4.4 A | Motor: 3800 RPM
TA6-U Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 6.6 mm/s | Current at load: 4.7 A | Motor: 3800 RPM
TA6-W Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 13.4 mm/s | Current at load: 4.6 A | Motor: 3800 RPM
TA6-Z Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 9.8 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
Linear ActuatorsTiMOTION
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA6 Series Linear Actuator (up to 6,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (16)

TA6-C, TA6-D, TA6-F, TA6-G, TA6-H, TA6-J, TA6-L, TA6-N, TA6-O, TA6-P + 6 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA6-CPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 4.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA6-DPush/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 3.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA6-FPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 8.3 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA6-GPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 12.1 mm/s | Current at load: 2.8 A | Motor: 2600 RPM
TA6-HPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 19.1 mm/s | Current at load: 2.1 A | Motor: 2600 RPM
TA6-JPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 6.0 mm/s | Current at load: 3.6 A | Motor: 2600 RPM
TA6-LPush/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 4.1 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA6-NPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 11.1 mm/s | Current at load: 4.1 A | Motor: 3400 RPM
TA6-OPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 14.9 mm/s | Current at load: 4.0 A | Motor: 3400 RPM
TA6-PPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 23.4 mm/s | Current at load: 3.0 A | Motor: 3400 RPM
TA6-QPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 7.9 mm/s | Current at load: 4.6 A | Motor: 3400 RPM
TA6-TPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 5.4 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA6-XPush/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 5.0 mm/s | Current at load: 4.4 A | Motor: 3800 RPM
TA6-UPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 6.6 mm/s | Current at load: 4.7 A | Motor: 3800 RPM
TA6-WPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 13.4 mm/s | Current at load: 4.6 A | Motor: 3800 RPM
TA6-ZPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 9.8 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
