TiMOTION TA9 Series Linear Actuator (up to 2,500 N)

TiMOTION TA9 Series Linear Actuator (up to 2,500 N)

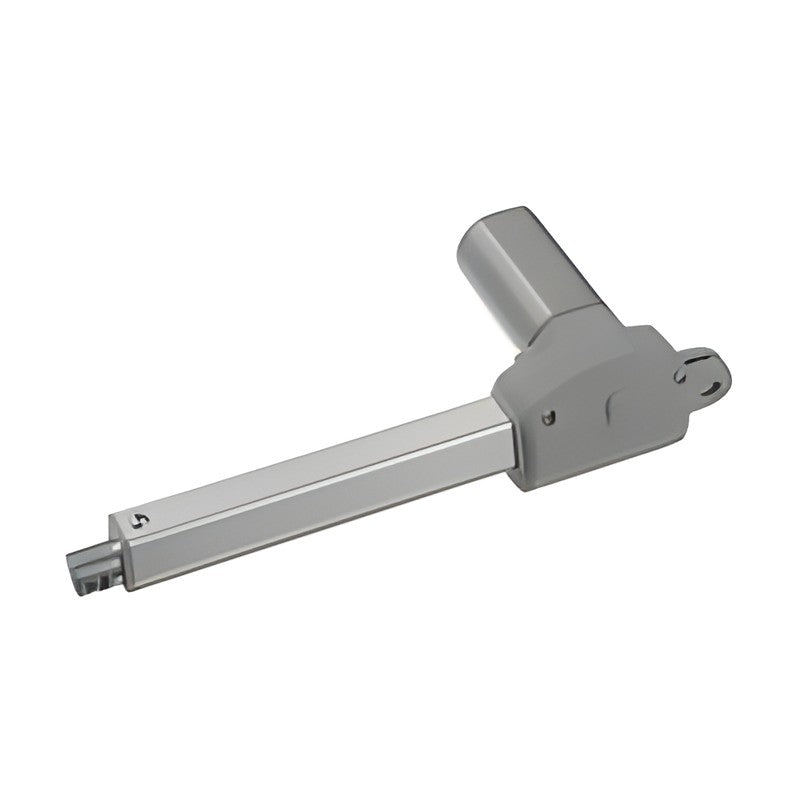

Compact TiMOTION TA9 series smart-furniture linear actuator with a custom moulded gearbox, rated up to 2,500 N push.

Key features

  • Compact design with custom plastic gearbox
  • Up to 2,500 N push / 1,000 N pull
  • Four motor speeds, 20 load/speed codes
  • Optional IP54 / IP66 and Hall sensors
  • 12 or 24 V DC (PTC versions available)

Specifications

Voltage 12, 24 V DC (PTC available)
Max. load 2,500 N push / 1,000 N pull
Max. speed (no load) 58.3 mm/s
Stroke 20-600 mm
Retracted length Stroke + 140 mm min.
IP rating IP66
Certificates IEC60601-1, ES60601-1, UL962, EMC
Color Black or grey
Product segment Comfort / Ergo Motion
Load codes 20 (full code per ordering key)
Source TiMOTION TA9 series datasheet
TA9-A Push/Pull: 2,000/1,000 N | Self-lock: 2,000 N | Speed at load: 5.0 mm/s | Current at load: 2.5 A | Motor: 4100 RPM
TA9-B Push/Pull: 1,500/1,000 N | Self-lock: 1,500 N | Speed at load: 6.8 mm/s | Current at load: 2.5 A | Motor: 4100 RPM
TA9-C Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 11.6 mm/s | Current at load: 3.0 A | Motor: 4100 RPM
TA9-D Push/Pull: 800/800 N | Self-lock: 800 N | Speed at load: 16.6 mm/s | Current at load: 2.8 A | Motor: 4100 RPM
TA9-F Push/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 30.0 mm/s | Current at load: 2.8 A | Motor: 4100 RPM
TA9-G Push/Pull: 2,500/1,000 N | Self-lock: 2,500 N | Speed at load: 5.1 mm/s | Current at load: 2.7 A | Motor: 3800 RPM
TA9-H Push/Pull: 2,000/1,000 N | Self-lock: 2,000 N | Speed at load: 7.0 mm/s | Current at load: 2.9 A | Motor: 3800 RPM
TA9-I Push/Pull: 1,500/1,000 N | Self-lock: 1,500 N | Speed at load: 12.5 mm/s | Current at load: 3.5 A | Motor: 3800 RPM
TA9-K Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 17.8 mm/s | Current at load: 3.2 A | Motor: 3800 RPM
TA9-L Push/Pull: 700/700 N | Self-lock: 700 N | Speed at load: 24.2 mm/s | Current at load: 3.2 A | Motor: 3800 RPM
TA9-M Push/Pull: 1,500/1,000 N | Self-lock: 1,500 N | Speed at load: 3.8 mm/s | Current at load: 1.6 A | Motor: 3400 RPM
TA9-N Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 5.9 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA9-O Push/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 11.3 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA9-P Push/Pull: 400/400 N | Self-lock: 400 N | Speed at load: 15.5 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA9-Q Push/Pull: 300/300 N | Self-lock: 300 N | Speed at load: 24.0 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA9-V Push/Pull: 2,000/1,000 N | Self-lock: 2,000 N | Speed at load: 2.6 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
TA9-R Push/Pull: 1,500/1,000 N | Self-lock: 1,500 N | Speed at load: 3.7 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
TA9-S Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 6.9 mm/s | Current at load: 1.5 A | Motor: 2200 RPM
TA9-T Push/Pull: 800/800 N | Self-lock: 800 N | Speed at load: 10.0 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
TA9-U Push/Pull: 500/300 N | Self-lock: 500 N | Speed at load: 15.6 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
Linear ActuatorsTiMOTION
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA9 Series Linear Actuator (up to 2,500 N)

Brand TiMOTION·Linear Actuators

Available part numbers (20)

TA9-A, TA9-B, TA9-C, TA9-D, TA9-F, TA9-G, TA9-H, TA9-I, TA9-K, TA9-L + 10 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA9-APush/Pull: 2,000/1,000 N | Self-lock: 2,000 N | Speed at load: 5.0 mm/s | Current at load: 2.5 A | Motor: 4100 RPM
TA9-BPush/Pull: 1,500/1,000 N | Self-lock: 1,500 N | Speed at load: 6.8 mm/s | Current at load: 2.5 A | Motor: 4100 RPM
TA9-CPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 11.6 mm/s | Current at load: 3.0 A | Motor: 4100 RPM
TA9-DPush/Pull: 800/800 N | Self-lock: 800 N | Speed at load: 16.6 mm/s | Current at load: 2.8 A | Motor: 4100 RPM
TA9-FPush/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 30.0 mm/s | Current at load: 2.8 A | Motor: 4100 RPM
TA9-GPush/Pull: 2,500/1,000 N | Self-lock: 2,500 N | Speed at load: 5.1 mm/s | Current at load: 2.7 A | Motor: 3800 RPM
TA9-HPush/Pull: 2,000/1,000 N | Self-lock: 2,000 N | Speed at load: 7.0 mm/s | Current at load: 2.9 A | Motor: 3800 RPM
TA9-IPush/Pull: 1,500/1,000 N | Self-lock: 1,500 N | Speed at load: 12.5 mm/s | Current at load: 3.5 A | Motor: 3800 RPM
TA9-KPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 17.8 mm/s | Current at load: 3.2 A | Motor: 3800 RPM
TA9-LPush/Pull: 700/700 N | Self-lock: 700 N | Speed at load: 24.2 mm/s | Current at load: 3.2 A | Motor: 3800 RPM
TA9-MPush/Pull: 1,500/1,000 N | Self-lock: 1,500 N | Speed at load: 3.8 mm/s | Current at load: 1.6 A | Motor: 3400 RPM
TA9-NPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 5.9 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA9-OPush/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 11.3 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA9-PPush/Pull: 400/400 N | Self-lock: 400 N | Speed at load: 15.5 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA9-QPush/Pull: 300/300 N | Self-lock: 300 N | Speed at load: 24.0 mm/s | Current at load: 1.4 A | Motor: 3400 RPM
TA9-VPush/Pull: 2,000/1,000 N | Self-lock: 2,000 N | Speed at load: 2.6 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
TA9-RPush/Pull: 1,500/1,000 N | Self-lock: 1,500 N | Speed at load: 3.7 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
TA9-SPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 6.9 mm/s | Current at load: 1.5 A | Motor: 2200 RPM
TA9-TPush/Pull: 800/800 N | Self-lock: 800 N | Speed at load: 10.0 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
TA9-UPush/Pull: 500/300 N | Self-lock: 500 N | Speed at load: 15.6 mm/s | Current at load: 1.4 A | Motor: 2200 RPM
