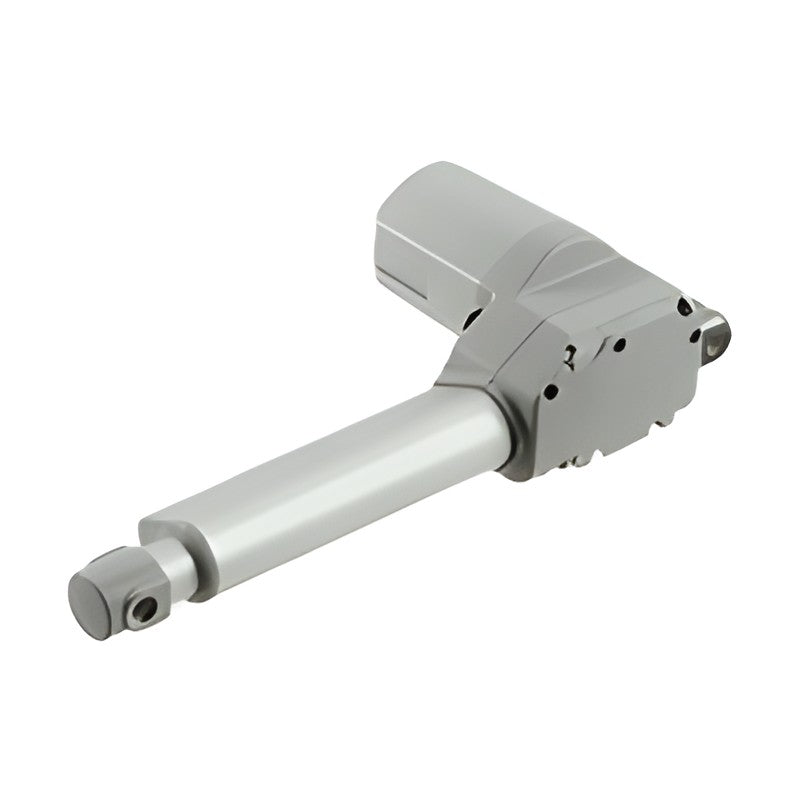

TiMOTION TA7 Series Linear Actuator (up to 10,000 N)

TiMOTION TA7 Series Linear Actuator (up to 10,000 N)

Classic TiMOTION TA7 series medical linear actuator compliant with IEC60601-1, rated up to 10,000 N push with optional IP66W.

Key features

  • Up to 10,000 N push / 4,000 N pull
  • Three motor speeds, 19 load/speed codes
  • Optional IP54, IP66 or IP66W rating
  • Options: safety nut, Hall / Reed sensors
  • Typical use: medical equipment and beds

Specifications

Voltage 12, 24 or 36 V DC
Max. load 10,000 N push / 4,000 N pull
Max. speed at full load 23.4 mm/s (1,000 N)
Stroke 25-1000 mm
Min. installation Stroke + 171 mm
IP rating Up to IP66W
Certificates IEC60601-1, ES60601-1, IEC60601-1-2, EMC
Color Black or grey
Product segment Care Motion
Load codes 19 (full code per ordering key)
Source TiMOTION TA7 series datasheet
TA7-C Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 4.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA7-D Push/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 3.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA7-F Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 8.3 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA7-G Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 12.1 mm/s | Current at load: 2.8 A | Motor: 2600 RPM
TA7-H Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 19.1 mm/s | Current at load: 2.1 A | Motor: 2600 RPM
TA7-J Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 6.0 mm/s | Current at load: 3.6 A | Motor: 2600 RPM
TA7-K Push/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 2.7 mm/s | Current at load: 4.0 A | Motor: 2600 RPM
TA7-L Push/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 4.1 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA7-N Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 11.1 mm/s | Current at load: 4.1 A | Motor: 3400 RPM
TA7-O Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 14.9 mm/s | Current at load: 4.0 A | Motor: 3400 RPM
TA7-P Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 23.4 mm/s | Current at load: 3.0 A | Motor: 3400 RPM
TA7-Q Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 7.9 mm/s | Current at load: 4.6 A | Motor: 3400 RPM
TA7-R Push/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 3.5 mm/s | Current at load: 5.0 A | Motor: 3400 RPM
TA7-T Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 5.4 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA7-Y Push/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 4.4 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
TA7-B Push/Pull: 10,000/4,000 N | Self-lock: 10,000 N | Speed at load: 3.2 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
TA7-U Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 6.6 mm/s | Current at load: 4.7 A | Motor: 3800 RPM
TA7-W Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 13.4 mm/s | Current at load: 4.6 A | Motor: 3800 RPM
TA7-Z Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 9.8 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
Linear ActuatorsTiMOTION
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA7 Series Linear Actuator (up to 10,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (19)

TA7-C, TA7-D, TA7-F, TA7-G, TA7-H, TA7-J, TA7-K, TA7-L, TA7-N, TA7-O + 9 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA7-CPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 4.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA7-DPush/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 3.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA7-FPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 8.3 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA7-GPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 12.1 mm/s | Current at load: 2.8 A | Motor: 2600 RPM
TA7-HPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 19.1 mm/s | Current at load: 2.1 A | Motor: 2600 RPM
TA7-JPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 6.0 mm/s | Current at load: 3.6 A | Motor: 2600 RPM
TA7-KPush/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 2.7 mm/s | Current at load: 4.0 A | Motor: 2600 RPM
TA7-LPush/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 4.1 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA7-NPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 11.1 mm/s | Current at load: 4.1 A | Motor: 3400 RPM
TA7-OPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 14.9 mm/s | Current at load: 4.0 A | Motor: 3400 RPM
TA7-PPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 23.4 mm/s | Current at load: 3.0 A | Motor: 3400 RPM
TA7-QPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 7.9 mm/s | Current at load: 4.6 A | Motor: 3400 RPM
TA7-RPush/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 3.5 mm/s | Current at load: 5.0 A | Motor: 3400 RPM
TA7-TPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 5.4 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA7-YPush/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 4.4 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
TA7-BPush/Pull: 10,000/4,000 N | Self-lock: 10,000 N | Speed at load: 3.2 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
TA7-UPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 6.6 mm/s | Current at load: 4.7 A | Motor: 3800 RPM
TA7-WPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 13.4 mm/s | Current at load: 4.6 A | Motor: 3800 RPM
TA7-ZPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 9.8 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
