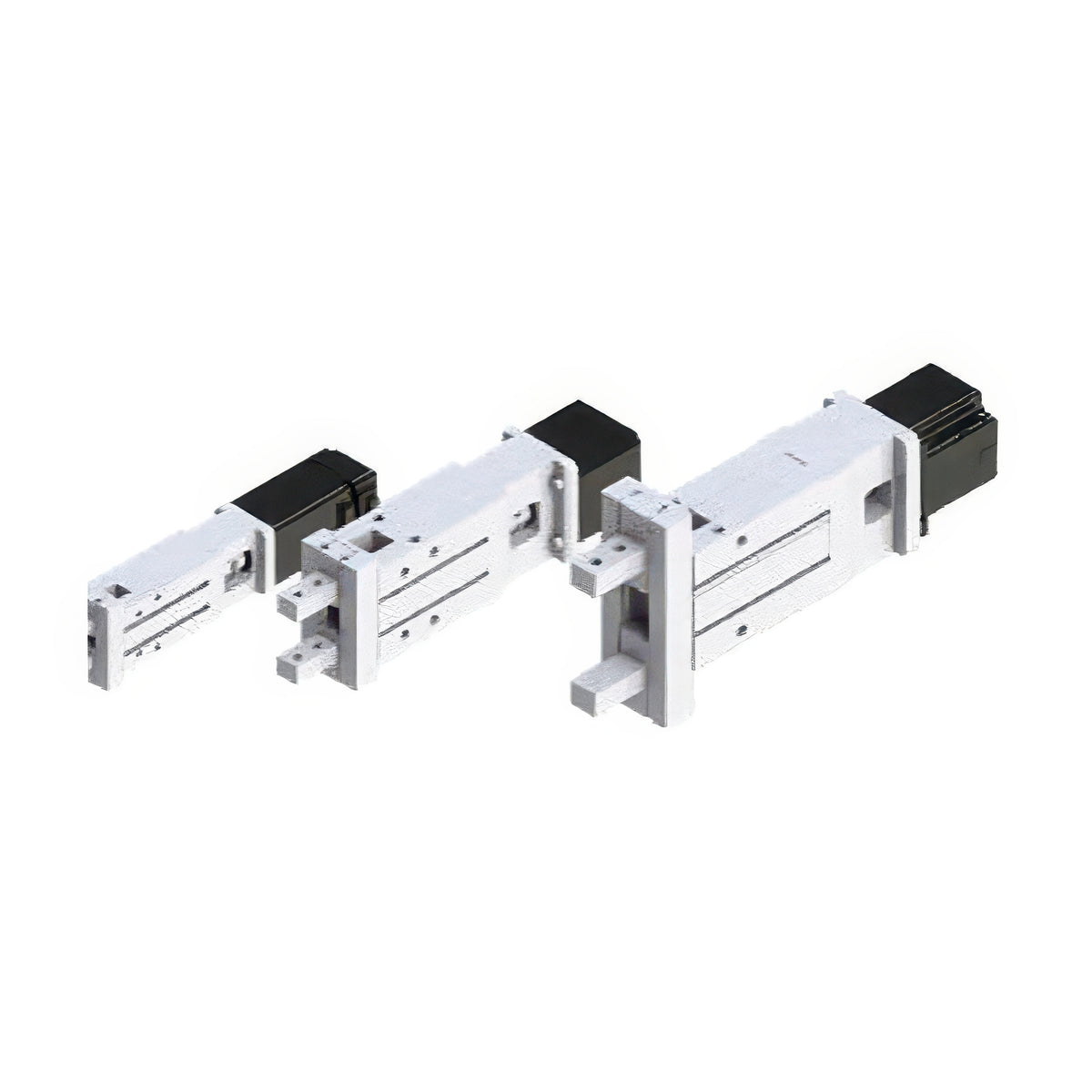

TPC Mechatronics EGH Series Parallel Electric Gripper

TPC Mechatronics EGH Series Parallel Electric Gripper

The EGH is a parallel opening/closing electric gripper that can replace NFH2 series air grippers in the same footprint.

Key features

  • Fingers run on two linear ball guides, and a precision Japanese-made TM screw with cam provides the drive
  • Both inner and outer gripping are possible, suiting vision and alignment processes
  • The motor is mounted in-line, and solid-state auto switches (W9H, W9V, W20H) can be specified
  • Three sizes cover strokes from 6 to 30 mm

Specifications

Finger guide Linear ball guide
Drive Lead screw (TM screw) + cam
Repeatability +/-0.02 mm
Max. frequency 60 cpm
Operating temperature 1-55 C
Humidity 90 %RH or less
EGH16 Size: 16 mm | Stroke: 6 mm | Max. speed: 130 mm/s (at 3000 rpm) | Max. gripping force: 22 N (at 250 rpm) | Max. finger length: 35 mm | Finger backlash: 0.25 mm or less | Motor: up to 28 mm square | Finger guide: Linear ball guide | Drive: Lead screw (TM screw) + cam | Repeatability: +/-0.02 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
EGH25 Size: 25 mm | Stroke: 14 mm | Max. speed: 167 mm/s (at 3000 rpm) | Max. gripping force: 91 N (at 250 rpm) | Max. finger length: 80 mm | Finger backlash: 0.25 mm or less | Motor: up to 42 mm square | Finger guide: Linear ball guide | Drive: Lead screw (TM screw) + cam | Repeatability: +/-0.02 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
EGH40 Size: 40 mm | Stroke: 30 mm | Max. speed: 158 mm/s (at 3000 rpm) | Max. gripping force: 256 N (at 250 rpm) | Max. finger length: 100 mm | Finger backlash: 0.5 mm or less | Motor: up to 60 mm square | Finger guide: Linear ball guide | Drive: Lead screw (TM screw) + cam | Repeatability: +/-0.02 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
Electric GrippersTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics EGH Series Parallel Electric Gripper

Brand TPC Mechatronics·Electric Grippers

Available part numbers (3)

EGH16, EGH25, EGH40

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EGH16Size: 16 mm | Stroke: 6 mm | Max. speed: 130 mm/s (at 3000 rpm) | Max. gripping force: 22 N (at 250 rpm) | Max. finger length: 35 mm | Finger backlash: 0.25 mm or less | Motor: up to 28 mm square | Finger guide: Linear ball guide | Drive: Lead screw (TM screw) + cam | Repeatability: +/-0.02 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
EGH25Size: 25 mm | Stroke: 14 mm | Max. speed: 167 mm/s (at 3000 rpm) | Max. gripping force: 91 N (at 250 rpm) | Max. finger length: 80 mm | Finger backlash: 0.25 mm or less | Motor: up to 42 mm square | Finger guide: Linear ball guide | Drive: Lead screw (TM screw) + cam | Repeatability: +/-0.02 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
EGH40Size: 40 mm | Stroke: 30 mm | Max. speed: 158 mm/s (at 3000 rpm) | Max. gripping force: 256 N (at 250 rpm) | Max. finger length: 100 mm | Finger backlash: 0.5 mm or less | Motor: up to 60 mm square | Finger guide: Linear ball guide | Drive: Lead screw (TM screw) + cam | Repeatability: +/-0.02 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
