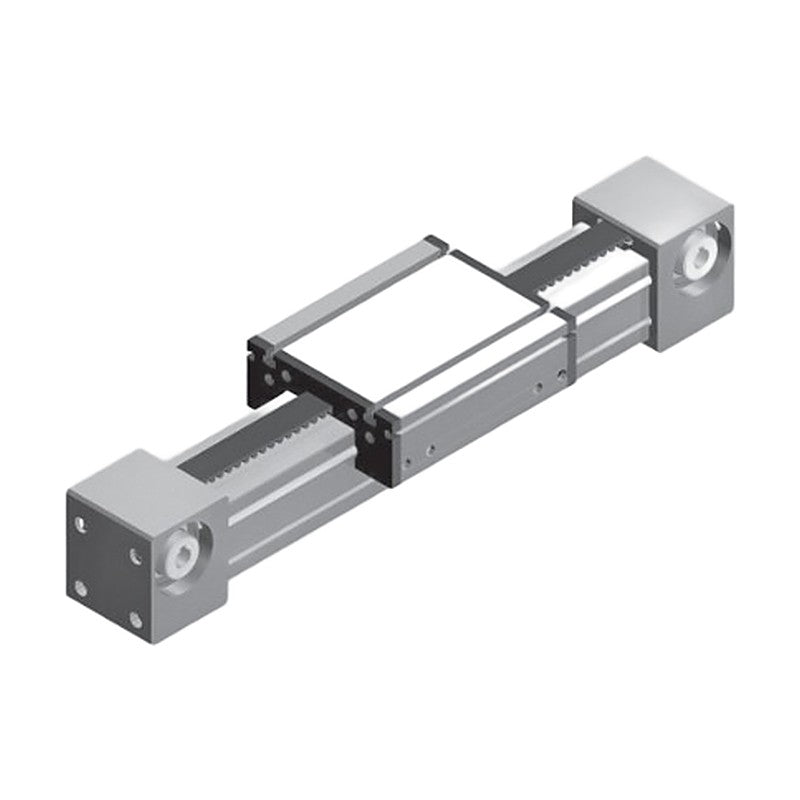

The MB series is a belt driven linear actuator unit that combines a track roller guide with a high-strength timing belt drive.
Key features
- It is offered in sizes 30, 40, 60, 80 and 100 with strokes up to 5500 mm and a repeatability of +/-0.05 mm
- The modules are easy to combine into multi-axis systems and simple to maintain
- Stroke, slider type, pulley arrangement, colour, sensors, mounting brackets and gear-reducer bracket are specified at order
Specifications
| Max speed | 2000 mm/s |
|---|---|
| Repeatability | +/-0.05 mm |
| MB30 | Stroke: 50-2800 mm | Max speed: 2000 mm/s | Max payload (horizontal): 3 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 23.87 mm | Travel per pulley rev: 75 mm/rev | Belt: S3M / W12 | Slider type: S: 4 rollers / T: S + 2 rollers | Motor: 100 W | Gear ratio: 5 / 3 | Body size (W x H): 30 x 47 mm | Base weight: 1 kgf | Weight per 100 mm stroke: 0.14 kgf | |
| MB40 | Stroke: 100-3500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 10 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 31.83 mm | Travel per pulley rev: 100 mm/rev | Belt: RPP5 / W15 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 100 W | Gear ratio: 10 / 5 | Body size (W x H): 40 x 64 mm | Base weight: 2.1 kgf | Weight per 100 mm stroke: 0.3 kgf | |
| MB60 | Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 15 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 41.38 mm | Travel per pulley rev: 130 mm/rev | Belt: RPP5 / W25 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200 W | Gear ratio: 10 / 5 | Body size (W x H): 60 x 90 mm | Base weight: 5.6 kgf | Weight per 100 mm stroke: 0.5 kgf | |
| MB80 | Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 40 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 61.12 mm | Travel per pulley rev: 192 mm/rev | Belt: RPP8 / W30 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 80 x 121 mm | Base weight: 12.9 kgf | Weight per 100 mm stroke: 0.8 kgf | |
| MB100 | Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 70 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 81.49 mm | Travel per pulley rev: 256 mm/rev | Belt: RPP8 / W50 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 100 x 155 mm | Base weight: 28 kgf | Weight per 100 mm stroke: 1.4 kgf |
Belt Driven Linear ActuatorsTPC Mechatronics
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics MB Belt Driven Linear Actuator (Track Roller Guide, Size 30-100)
Available part numbers (5)
MB30, MB40, MB60, MB80, MB100
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
Belt Driven Linear Actuators
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| MB30 | Stroke: 50-2800 mm | Max speed: 2000 mm/s | Max payload (horizontal): 3 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 23.87 mm | Travel per pulley rev: 75 mm/rev | Belt: S3M / W12 | Slider type: S: 4 rollers / T: S + 2 rollers | Motor: 100 W | Gear ratio: 5 / 3 | Body size (W x H): 30 x 47 mm | Base weight: 1 kgf | Weight per 100 mm stroke: 0.14 kgf | ||
| MB40 | Stroke: 100-3500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 10 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 31.83 mm | Travel per pulley rev: 100 mm/rev | Belt: RPP5 / W15 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 100 W | Gear ratio: 10 / 5 | Body size (W x H): 40 x 64 mm | Base weight: 2.1 kgf | Weight per 100 mm stroke: 0.3 kgf | ||
| MB60 | Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 15 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 41.38 mm | Travel per pulley rev: 130 mm/rev | Belt: RPP5 / W25 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200 W | Gear ratio: 10 / 5 | Body size (W x H): 60 x 90 mm | Base weight: 5.6 kgf | Weight per 100 mm stroke: 0.5 kgf | ||
| MB80 | Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 40 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 61.12 mm | Travel per pulley rev: 192 mm/rev | Belt: RPP8 / W30 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 80 x 121 mm | Base weight: 12.9 kgf | Weight per 100 mm stroke: 0.8 kgf | ||
| MB100 | Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 70 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 81.49 mm | Travel per pulley rev: 256 mm/rev | Belt: RPP8 / W50 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 100 x 155 mm | Base weight: 28 kgf | Weight per 100 mm stroke: 1.4 kgf |
