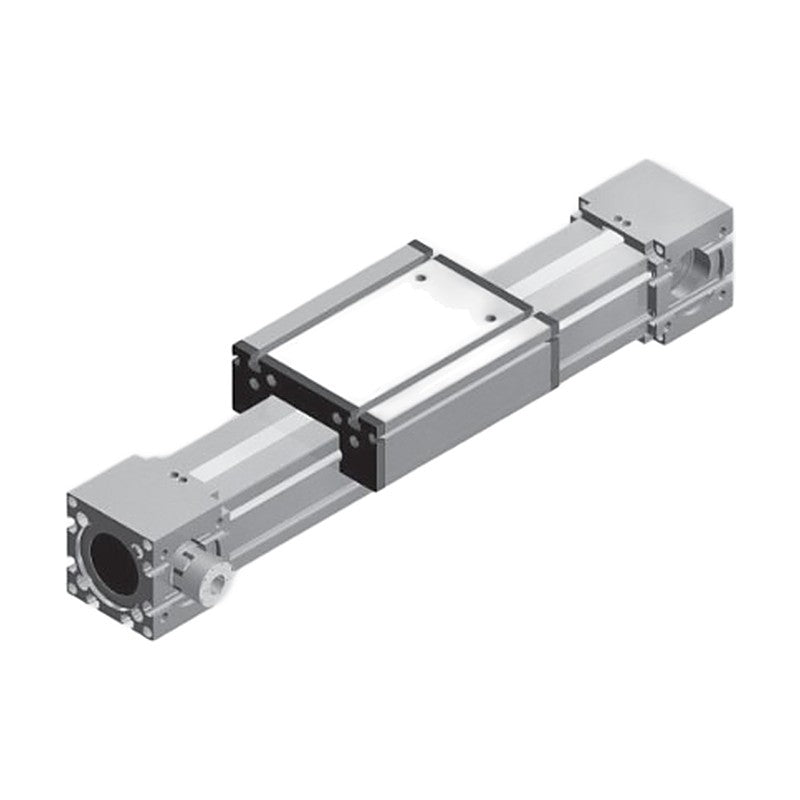

TPC Mechatronics MC Belt Driven Linear Actuator (Dust-Proof Cover, Size 60-100)

TPC Mechatronics MC Belt Driven Linear Actuator (Dust-Proof Cover, Size 60-100)

The MC series is a belt driven linear actuator with a track roller guide and a cover that gives the belt drive a dust-proof construction.

Key features

  • It is offered in sizes 60, 80 and 100 with a repeatability of +/-0.05 mm and a high-strength timing belt
  • The units are easy to combine into multi-axis systems and simple to maintain
  • Stroke, slider type, pulley arrangement, colour, sensors and brackets are specified at order

Specifications

Max speed 2000 mm/s
Repeatability +/-0.05 mm
Slider type S: 4 rollers / H: S + 4 rollers
TPC Mechatronics MC Belt Driven Linear Actuator (Dust-Proof Cover, Size 60-100) reference 2
MC60 Stroke: 100-1800 mm | Max speed: 2000 mm/s | Max payload (horizontal): 30 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 25.46 mm | Travel per pulley rev: 80 mm/rev | Belt: RPP5 / W25 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200 W | Gear ratio: 10 / 5 | Body size (W x H): 60 x 90 mm | Base weight: 5.1 kgf | Weight per 100 mm stroke: 0.5 kgf
MC80 Stroke: 100-4000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 50 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 41.38 mm | Travel per pulley rev: 130 mm/rev | Belt: RPP5 / W25 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400-750 W | Gear ratio: 10 / 5 | Body size (W x H): 80 x 121 mm | Base weight: 13.2 kgf | Weight per 100 mm stroke: 1.2 kgf
MC100 Stroke: 100-2000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 100 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 50.93 mm | Travel per pulley rev: 160 mm/rev | Belt: RPP8 / W30 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 100 x 155 mm | Base weight: 29.0 kgf | Weight per 100 mm stroke: 1.8 kgf
Belt Driven Linear ActuatorsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics MC Belt Driven Linear Actuator (Dust-Proof Cover, Size 60-100)

Brand TPC Mechatronics·Belt Driven Linear Actuators

Available part numbers (3)

MC60, MC80, MC100

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics MC Belt Driven Linear Actuator (Dust-Proof Cover, Size 60-100) reference 2
0 selected
RFQ List (0)
Product codeSpec
MC60Stroke: 100-1800 mm | Max speed: 2000 mm/s | Max payload (horizontal): 30 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 25.46 mm | Travel per pulley rev: 80 mm/rev | Belt: RPP5 / W25 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200 W | Gear ratio: 10 / 5 | Body size (W x H): 60 x 90 mm | Base weight: 5.1 kgf | Weight per 100 mm stroke: 0.5 kgf
MC80Stroke: 100-4000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 50 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 41.38 mm | Travel per pulley rev: 130 mm/rev | Belt: RPP5 / W25 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400-750 W | Gear ratio: 10 / 5 | Body size (W x H): 80 x 121 mm | Base weight: 13.2 kgf | Weight per 100 mm stroke: 1.2 kgf
MC100Stroke: 100-2000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 100 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 50.93 mm | Travel per pulley rev: 160 mm/rev | Belt: RPP8 / W30 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 100 x 155 mm | Base weight: 29.0 kgf | Weight per 100 mm stroke: 1.8 kgf
