TPC Mechatronics MS Belt Driven Linear Actuator (Rack-and-Pinion Style, Size 40-100)

TPC Mechatronics MS Belt Driven Linear Actuator (Rack-and-Pinion Style, Size 40-100)

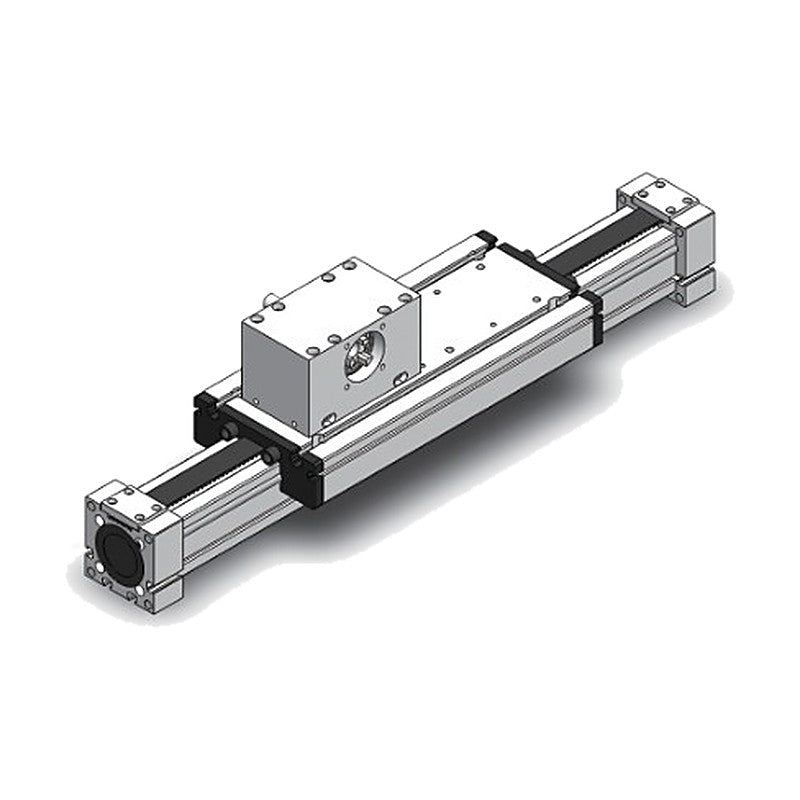

The MS series is a belt driven linear actuator with a track roller guide and a rack-and-pinion style belt drive, in which the motor is mounted on the moving slider.

Key features

  • It is offered in sizes 40, 60, 80 and 100 with strokes up to 5500 mm and a repeatability of +/-0.05 mm
  • The units are easy to combine into multi-axis systems and simple to maintain
  • Stroke, slider type, colour, sensors and brackets are specified at order

Specifications

Max speed 2000 mm/s
Repeatability +/-0.05 mm
Slider type S: 4 rollers / H: S + 4 rollers
TPC Mechatronics MS Belt Driven Linear Actuator (Rack-and-Pinion Style, Size 40-100) reference 2
MS40 Stroke: 100-3500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 16 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 31.83 mm | Travel per pulley rev: 100 mm/rev | Belt: RPP5 / W15 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200 W | Gear ratio: 10 / 5 | Body size (W x H): 40 x 64 mm | Base weight: 3.4 kgf | Weight per 100 mm stroke: 0.3 kgf
MS60 Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 35 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 41.38 mm | Travel per pulley rev: 130 mm/rev | Belt: RPP5 / W25 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400 W | Gear ratio: 10 / 5 | Body size (W x H): 60 x 90 mm | Base weight: 7.8 kgf | Weight per 100 mm stroke: 0.5 kgf
MS80 Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 35 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 61.12 mm | Travel per pulley rev: 192 mm/rev | Belt: RPP8 / W30 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 80 x 121 mm | Base weight: 16.9 kgf | Weight per 100 mm stroke: 0.8 kgf
MS100 Stroke: 50-5500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 60 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 81.49 mm | Travel per pulley rev: 256 mm/rev | Belt: RPP8 / W50 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 | Body size (W x H): 100 x 155 mm | Base weight: 41.0 kgf | Weight per 100 mm stroke: 1.4 kgf
