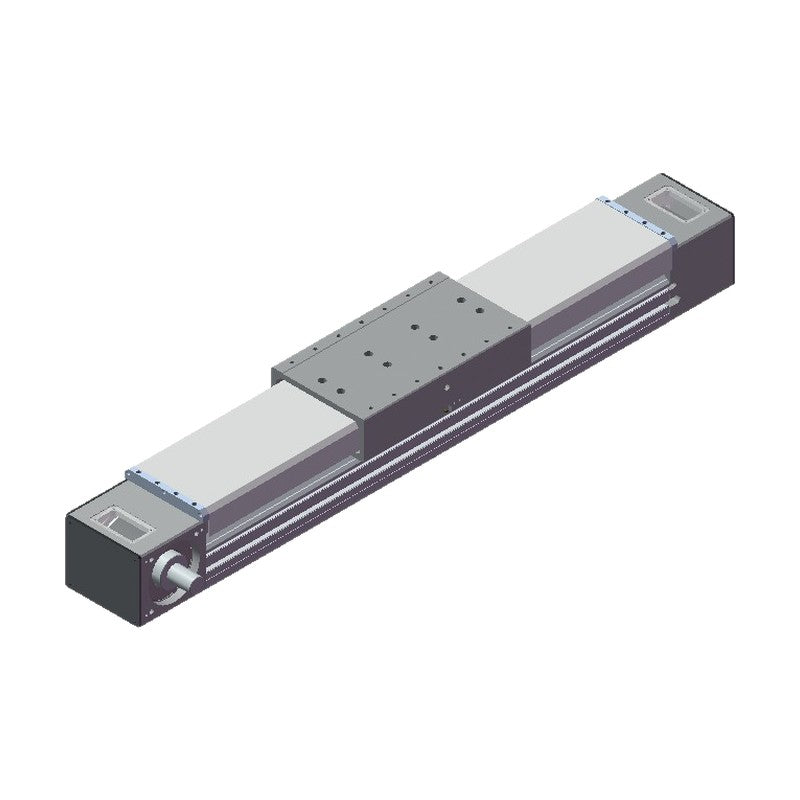

TPC Mechatronics QBC 160 Belt Driven Linear Actuator (Dust Cover, LM Guide)

TPC Mechatronics QBC 160 Belt Driven Linear Actuator (Dust Cover, LM Guide)

The QBC 160 is a belt driven linear actuator unit combining an LM guide with a timing belt drive and fitted with a dust-proof cover.

Key features

  • It has a compact, high-rigidity structure suited to multi-axis combinations and uses a high-tension timing belt
  • Maximum speed is 2000 mm/s with a horizontal payload of 300 kgf and repeatability of ±0.05 mm
  • Stroke, pulley type, color, sensors and reducer bracket are specified at order

Specifications

Stroke 500~3400 mm
Max speed 2000 mm/s
Payload 300 kgf (horizontal)
Repeatability ±0.05 mm
Pulley diameter Ø99.31 mm
Travel per pulley rev 312 mm/rev
No-load torque 2.5 Nm
Belt RPP8 / W62
LM guide No.35, 1 rail 2 blocks
Base weight 45.9 kgf
Weight per 100 mm stroke 2.4 kgf
Motor 1000 W
TPC Mechatronics QBC 160 Belt Driven Linear Actuator (Dust Cover, LM Guide) reference 2
QBC160 Stroke: 500~3400 mm | Max speed: 2000 mm/s | Payload: 300 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø99.31 mm | Travel per pulley rev: 312 mm/rev | No-load torque: 2.5 Nm | Belt: RPP8 / W62 | LM guide: No.35, 1 rail 2 blocks | Base weight: 45.9 kgf | Weight per 100 mm stroke: 2.4 kgf | Motor: 1000 W | Size W x H: 160 x 168 mm
Belt Driven Linear ActuatorsTPC Mechatronics
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics QBC 160 Belt Driven Linear Actuator (Dust Cover, LM Guide)

Brand TPC Mechatronics·Belt Driven Linear Actuators

Available part numbers (1)

QBC160

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics QBC 160 Belt Driven Linear Actuator (Dust Cover, LM Guide) reference 2
0 selected
RFQ List (0)
Product codeSpec
QBC160Stroke: 500~3400 mm | Max speed: 2000 mm/s | Payload: 300 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø99.31 mm | Travel per pulley rev: 312 mm/rev | No-load torque: 2.5 Nm | Belt: RPP8 / W62 | LM guide: No.35, 1 rail 2 blocks | Base weight: 45.9 kgf | Weight per 100 mm stroke: 2.4 kgf | Motor: 1000 W | Size W x H: 160 x 168 mm
