TPC Mechatronics QLE Clean Belt Driven Linear Actuator (LM Guide, 2 Rails, Size 60-100)

TPC Mechatronics QLE Clean Belt Driven Linear Actuator (LM Guide, 2 Rails, Size 60-100)

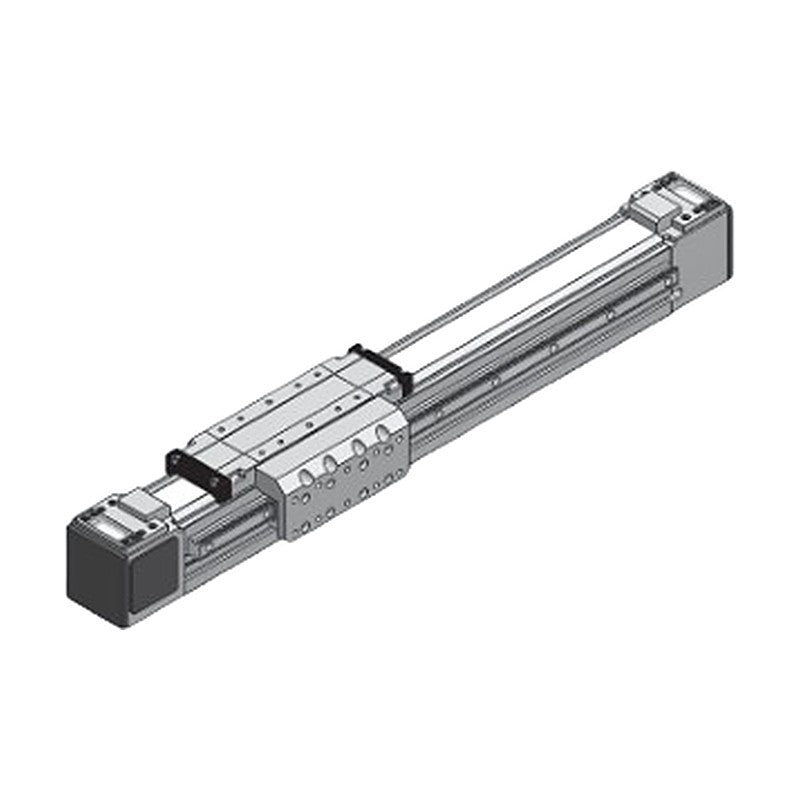

The QLE series is the twin-rail version of the QL clean-type belt driven linear actuator, using two LM guide rails with four blocks for higher load capacity.

Key features

  • With vacuum suction through the suction ports it is suited to Class 100 clean environments
  • It is offered in sizes 60, 80 and 100 with strokes of 100-3500 mm and a repeatability of +/-0.05 mm
  • Stroke, pulley type, colour, sensors and brackets are specified at order

Specifications

Stroke 100-3500 mm
Max speed 2000 mm/s
Repeatability +/-0.05 mm
Gear ratio 20 / 10 / 5
TPC Mechatronics QLE Clean Belt Driven Linear Actuator (LM Guide, 2 Rails, Size 60-100) reference 2
QLE60 Stroke: 100-3500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 70 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 41.38 mm | Travel per pulley rev: 130 mm/rev | Belt: RPP5 / W20 | LM guide: No.15, 2 rails 4 blocks | Motor: 200 / 400 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 60 x 80 mm | Base weight: 4.7 kgf | Weight per 100 mm stroke: 0.7 kgf
QLE80 Stroke: 100-3500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 110 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 53.48 mm | Travel per pulley rev: 168 mm/rev | Belt: RPP8 / W25 | LM guide: No.20, 2 rails 4 blocks | Motor: 400 / 750 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 80 x 105 mm | Base weight: 14 kgf | Weight per 100 mm stroke: 1.43 kgf
QLE100 Stroke: 100-3500 mm | Max speed: 2000 mm/s | Max payload (horizontal): 150 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 68.75 mm | Travel per pulley rev: 216 mm/rev | Belt: RPP8 / W45 | LM guide: No.30, 2 rails 4 blocks | Motor: 750 / 1000 W | Gear ratio: 20 / 10 / 5 | Body size (W x H): 100 x 130 mm | Base weight: 24.8 kgf | Weight per 100 mm stroke: 2.1 kgf
